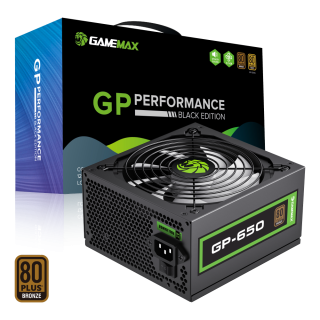

GameMax GP-650 Elegant PSU casing with white flat cables, Designed for high performance business and gaming build and various compatibility
• Elegant black PSU casing with full black mesh cables
• ATX12V Ver.2.30 compliant with ATX12V Ver.2.31
• High efficiency PSU, up to 85% efficiency
• Extended 12V Rail for high compatibility and extreme high current output
• Longer 20 + 4 500mm and 4 + 4 pins up to 650mm is easy for high-end tower chassis installation

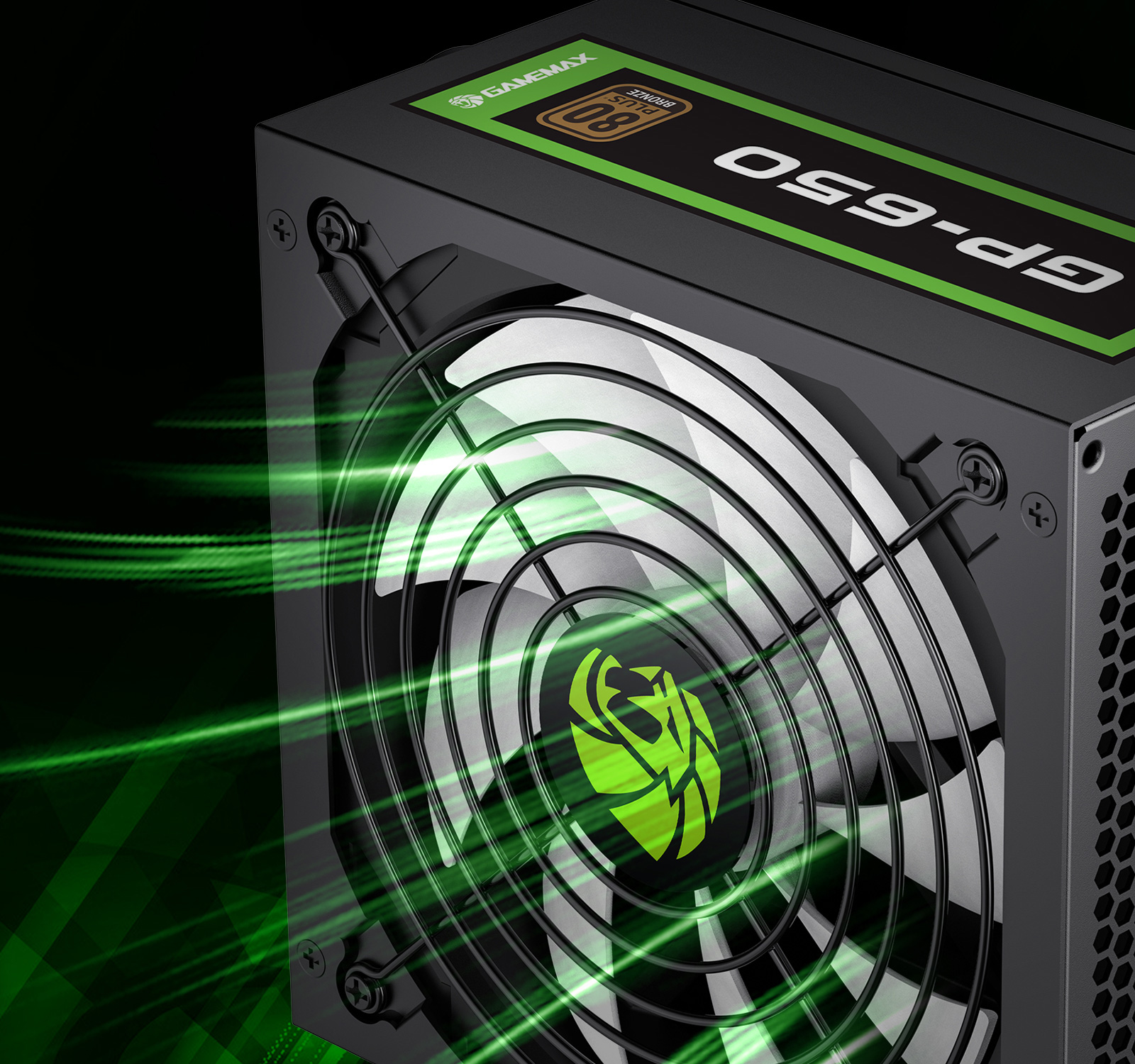

• 14cm silent black fan with smart thermal fan speed control circuit
• Full protection functions with OVP / UVP / OPP / SCP / SIP
• Safety and EMC certified by CE
• ECO friendly by RoHS and Erp 2013 directives
PSU Specifications
| AC INPUT: 100-240 VAC 15-5A 50-60Hz | |||||
| DC Output Max | +3.3V | +5V | +12V | -12V | +5VSB |
| 18A | 18A | 44A | 0.5A | 2.5A | |
| 650W | |||||

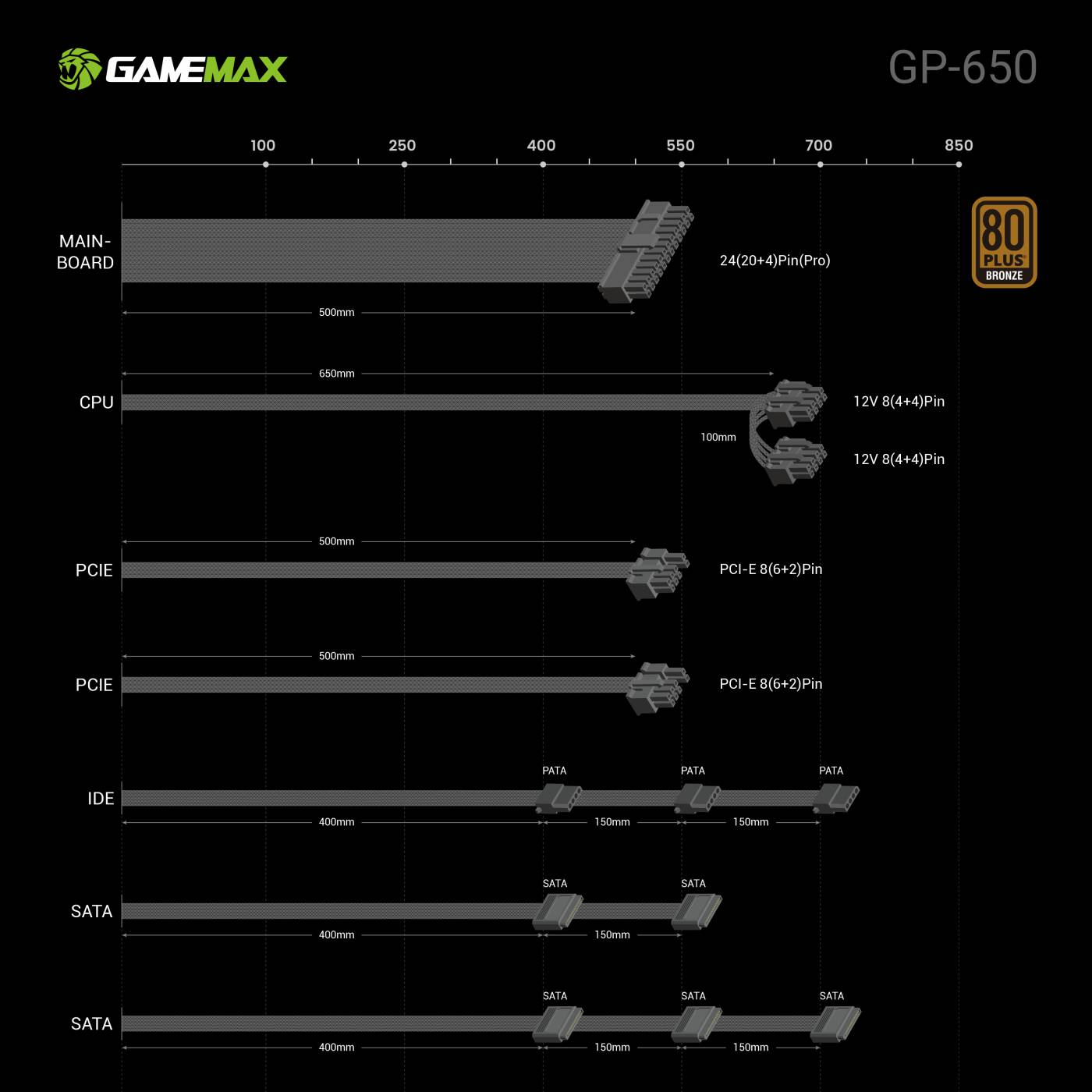

Connectors
 | 20+4 Pin Main Connectors: 1 |
 | 4+4 Pin 12V Connectors: 1 |
 | SATA Connectors: 5 |
 | 4-Pin Molex Connectors: 3 |
 | 6+2 Pin PCI-e Connectors: 2 |
Detailed Specifications

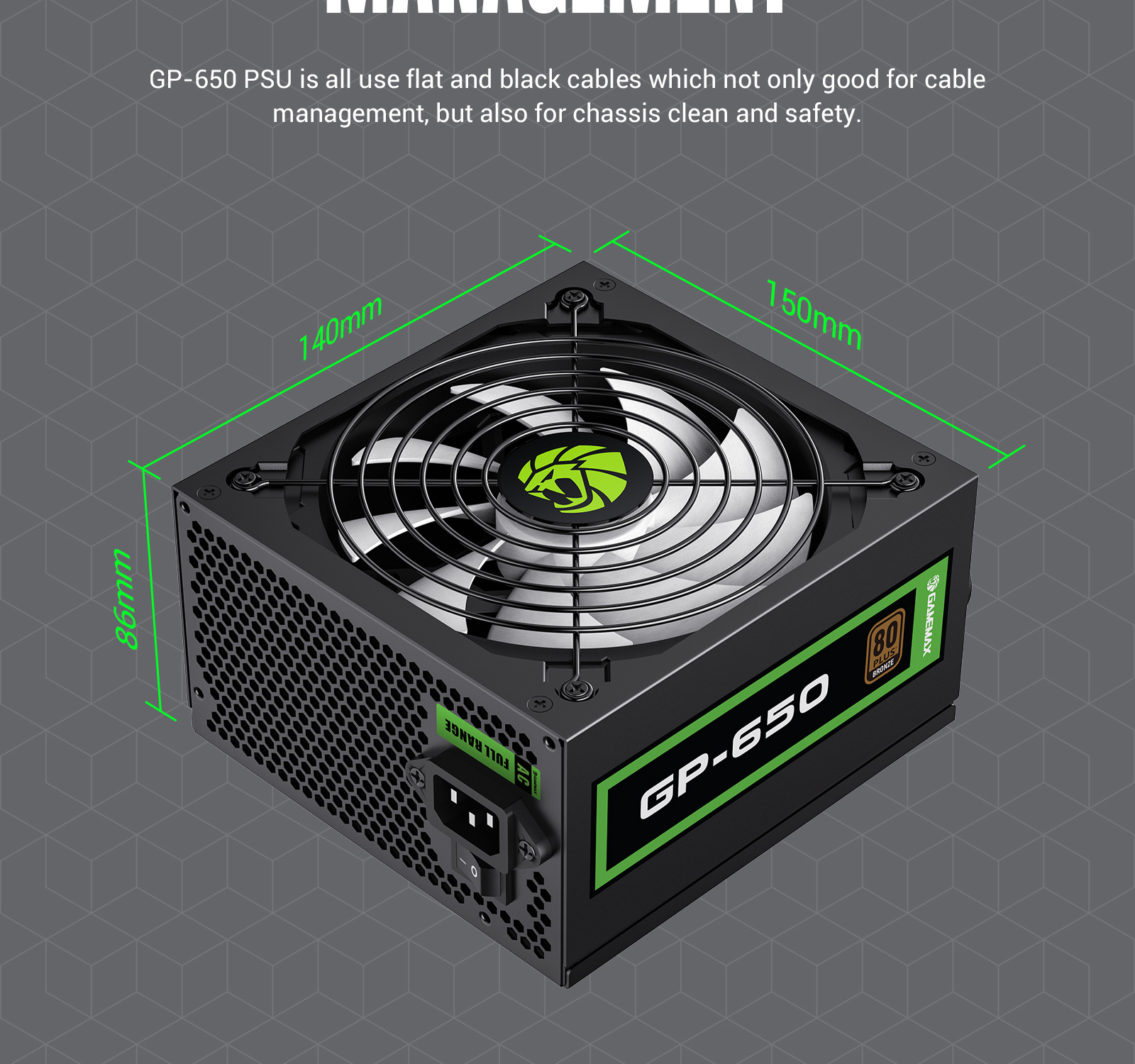

| Dimensions: | 158mm x 85mm x 150mm (W x H x D) |
| Input Voltage: | 100-240 VAC |
| Input Current: | 15-5A |
| Input Frequency Range: | 50-60Hz |
| PFC: | Active PFC (>.99) |
| Power Good Signal: | 100-150 ms |
| Hold Up Time: | >10ms |
| Efficiency: | > 82% (85% max) |
| MTBF: | > 100,000 Hours |
| Protection: | OVP / UVP/ OTP / OCP/ OLP/ OPP/ SCP |
| Power: | 650W |
| Operation Temperature: | 0-40C |
