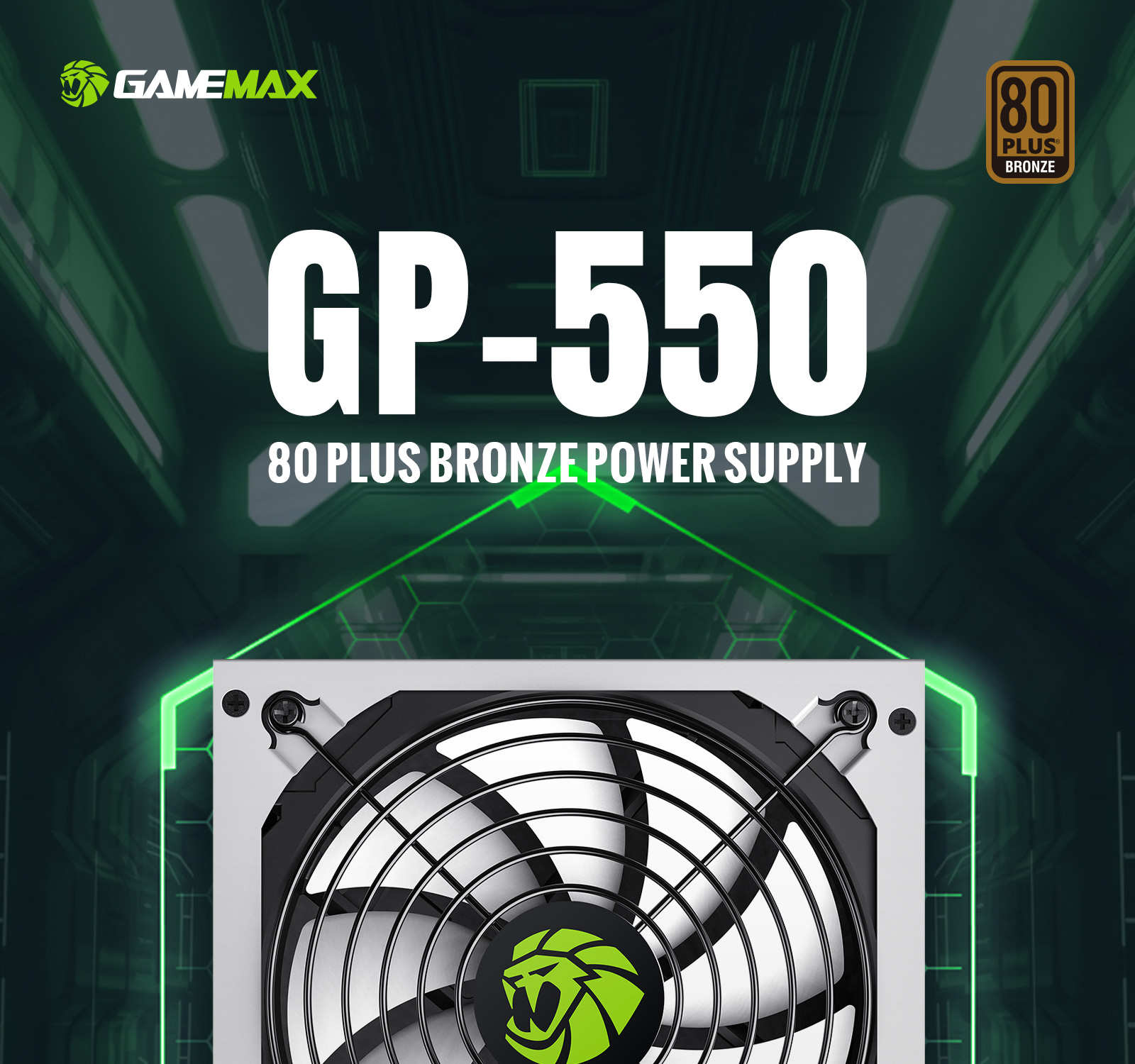

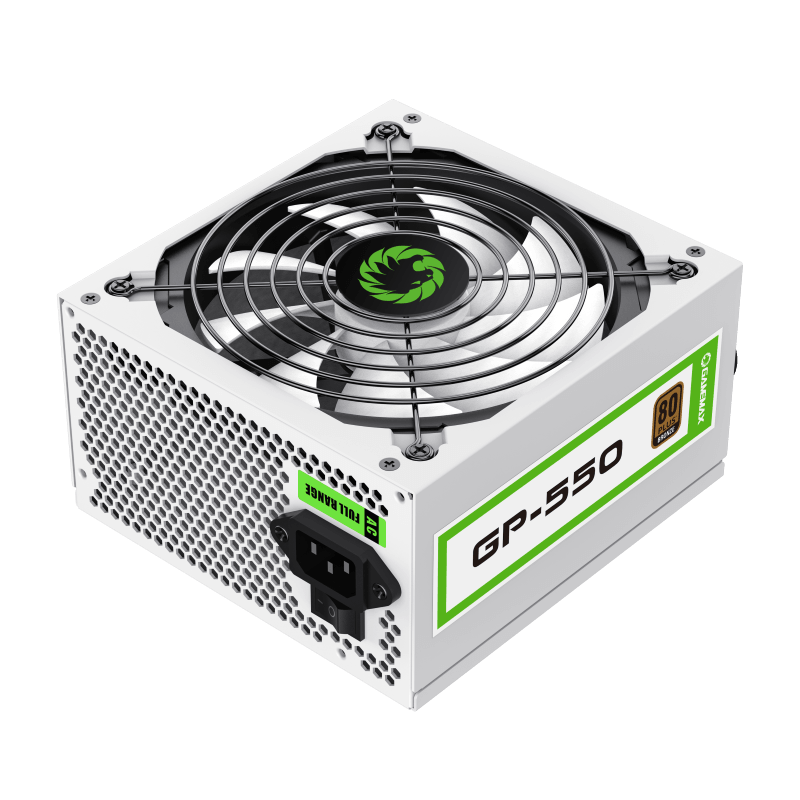

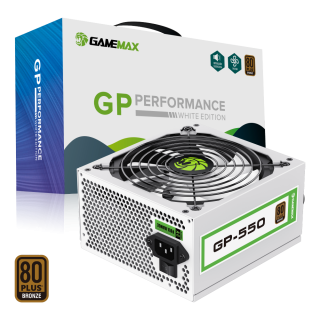

GameMax GP-550 White Elegant PSU casing with white flat cables, Designed for high performance business and gaming build and various compatibility
Elegant black PSU casing with full black mesh cables
ATX12V Ver.2.30 compliant with ATX12V Ver.2.31
High efficiency PSU, up to 85% efficiency
Extended 12V Rail for high compatibility and extreme high current output
Longer 20 + 4 and 4 + 4 pins up to 550mm is easy for high-end tower chassis installation

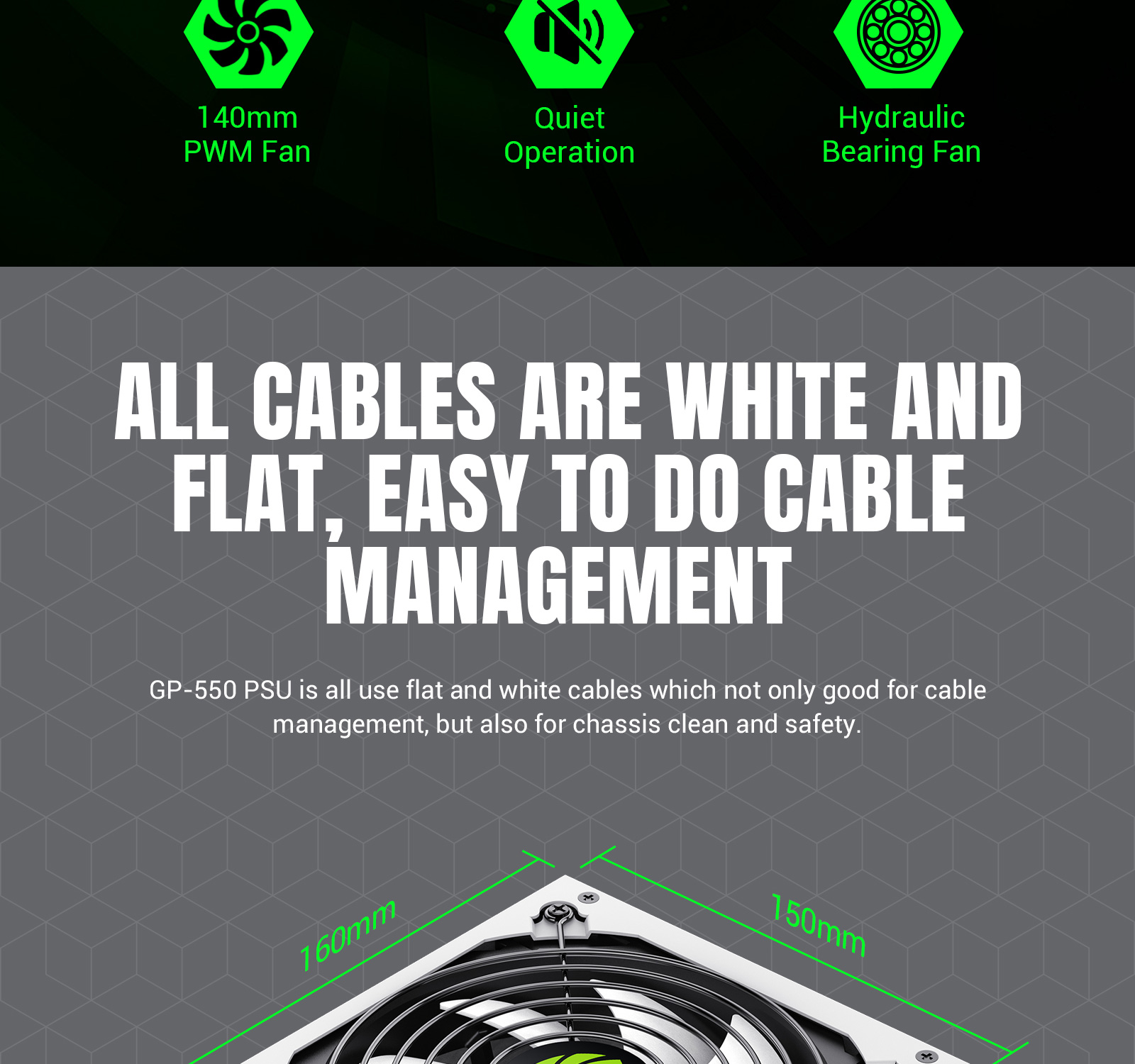

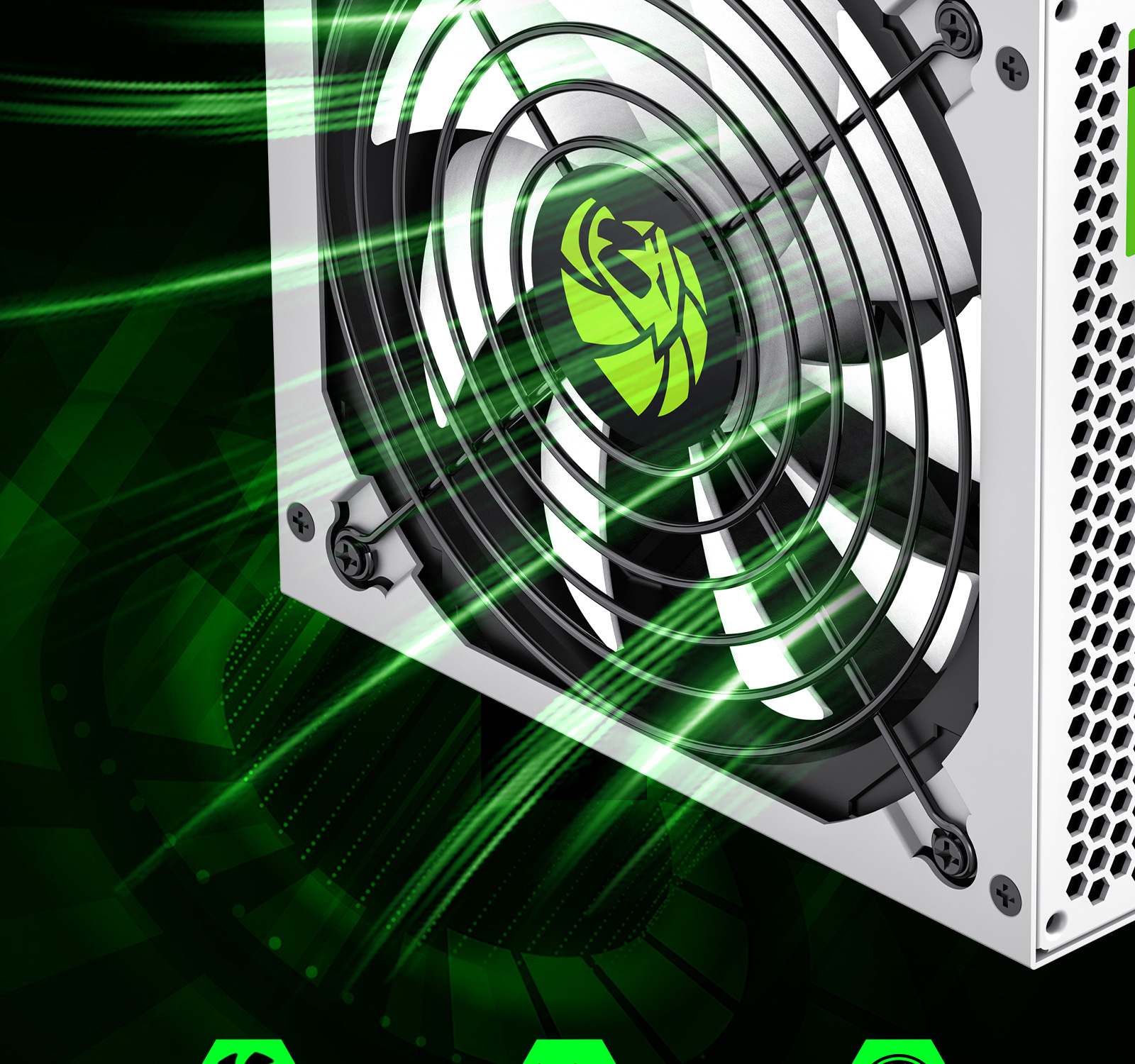

14cm silent black fan with smart thermal fan speed control circuit
Full protection functions with OVP / UVP / OPP / SCP / SIP
Safety and EMC certified by CE
ECO friendly by RoHS and Erp 2013 directives
PSU Specifications
| AC INPUT: 100-240 VAC 3.5-7A 50-60Hz | ||||||
| DC Output Max | +3.3V | +5V | +12V1 | +12V2 | -12V | +5VSB |
| 15A | 15A | 19A | 19A | 0.5A | 2.5A | |
| 550W | ||||||
Connectors
 | 20+4 Pin Main Connectors: 1 |
 | 4+4 Pin 12V Connectors: 1 |
 | SATA Connectors: 5 |
 | 4-Pin Molex Connectors: 3 |
 | 6+2 Pin PCI-e Connectors: 1 |
Detailed Specifications
| Dimensions: | 158mm x 85mm x 150mm (W x H x D) |
| Input Voltage: | 100-240 VAC |
| Input Current: | 3.5-7A |
| Input Frequency Range: | 50-60Hz |
| PFC: | Active PFC (>.99) |
| Power Good Signal: | 100-500 ms |
| Hold Up Time: | >17ms |
| Efficiency: | > 81% (85% max) |
| MTBF: | > 100,000 Hours |
| Protection: | OVP / UVP/ OTP / OCP/ OLP/ OPP/ SCP |
