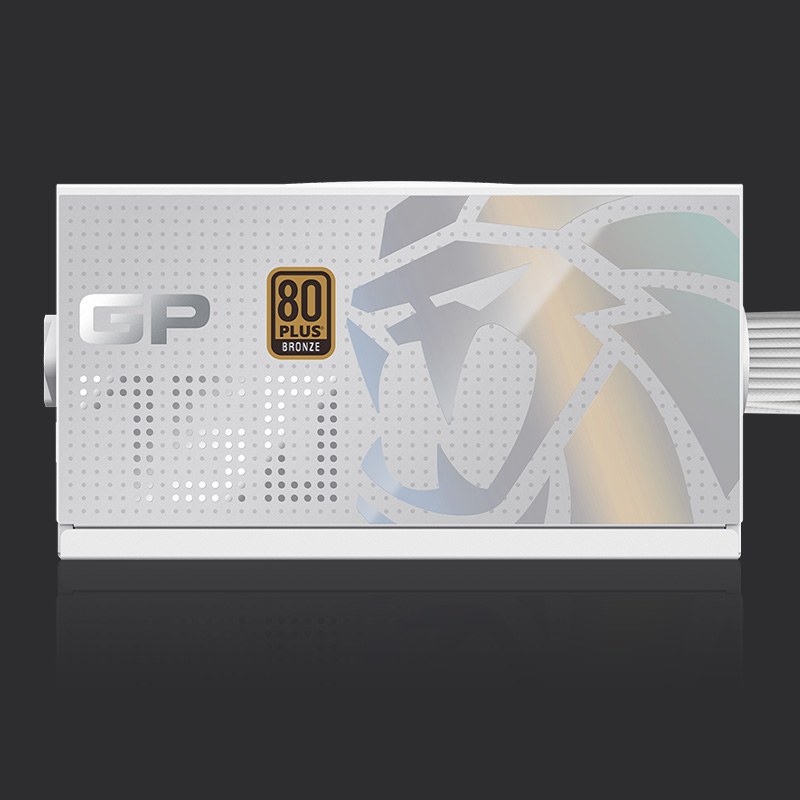

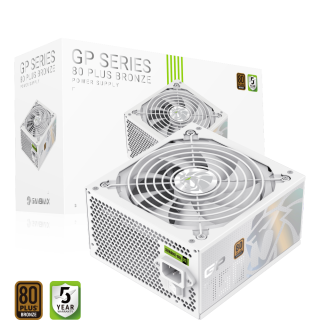

GAMEMAX GP 750B White 80+ Bronze Ultra-Stable Power Supply with Dual DC-DC Control, Smart Fan, and Premium Heat Dissipation.
• Dual Control DC-DC Circuit: Features 180-degree phase-shifted 3.3V/5V outputs, minimizing impact on +12V input and reducing ripple noise for enhanced stability and ±2% voltage accuracy.
• Premium Taiwan Capacitors: Utilizes high-quality TEAPO capacitors for reliable full-load performance and stable power delivery.
• Smart Temperature Control Fan (12/14CM): Automatically adjusts fan speed based on load, balancing energy efficiency and low-noise operation.
• Double-Sided PCB with Top-Side SMD Layout: Single-sided component design (no bottom components) improves stability and manufacturing precision.
• Enhanced Heat Dissipation: Aluminum extrusion and optimized crystal heat dissipation architecture ensure efficient cooling for sustained performance.
| AC INPUT: 100-240 VAC 15-5A 50-60Hz | |||||
| DC Output Max | +3.3V | +5V | +12V | -12V | +5VSB |
| 18A | 18A | 54A | 0.5A | 2.5A | |
| 750W | |||||
Detailed Specifications
| Dimensions: | 158mm x 85mm x 150mm (W x H x D) |
| Input Voltage: | 100-240 VAC |
| Input Current: | 15-5A |
| Input Frequency Range: | 50-60Hz |
| PFC: | Active PFC (>.99) |
| Power Good Signal: | 100-150 ms |
| Hold Up Time: | >10ms |
| Efficiency: | > 85% (87% max) |
| MTBF: | > 100,000 Hours |
| Protection: | OVP / UVP / SIP / OCP / OLP / OPP / SCP |
| Power: | 750W |
| Operation Temperature: | 0-40C |
| Safety: | CE / FCC / CB |
| Cooling: | 140mm Ultra Silent Fan |
| Noise: | <25dba< |
| 80 Plus Certified: | Yes - 80 Plus Bronze |
General Specifications
| Manufacturer Part Number: | GP-750 |
| EAN Number: | 6931858720052 |
| Has Mains Plug: | No |
| Colour: | Black |
| What's In The Box: | Power Supply, User Manual, Screws |
| Warranty: | 2 Years |
