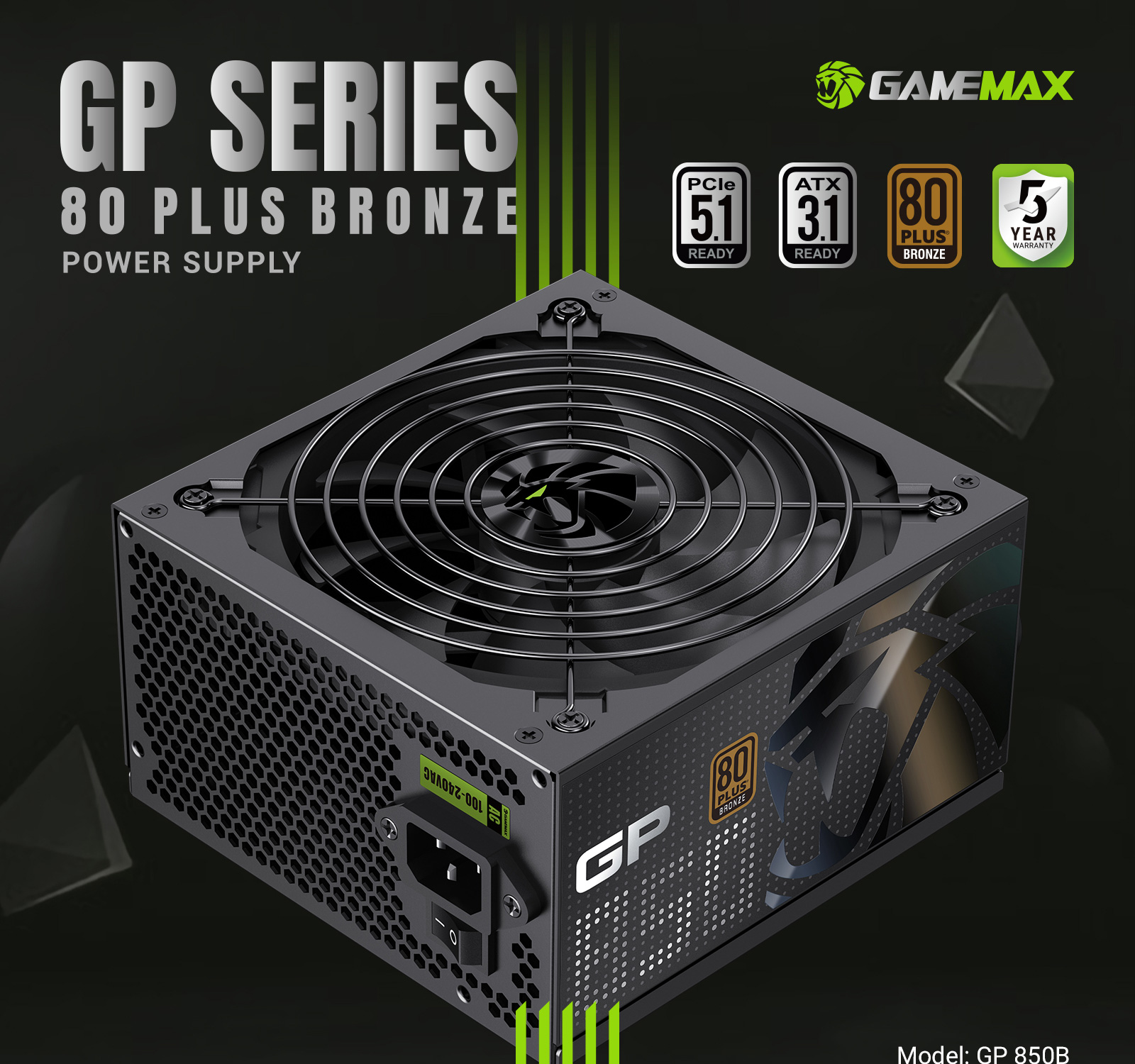

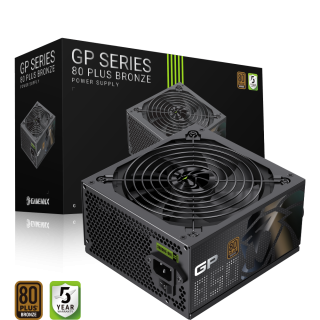

GAMEMAX GP 850B 80+ Bronze ATX3.1 PCIe5.1 Ultra-Stable Power Supply with Dual DC-DC Control, Smart Fan and Premium Cooling.

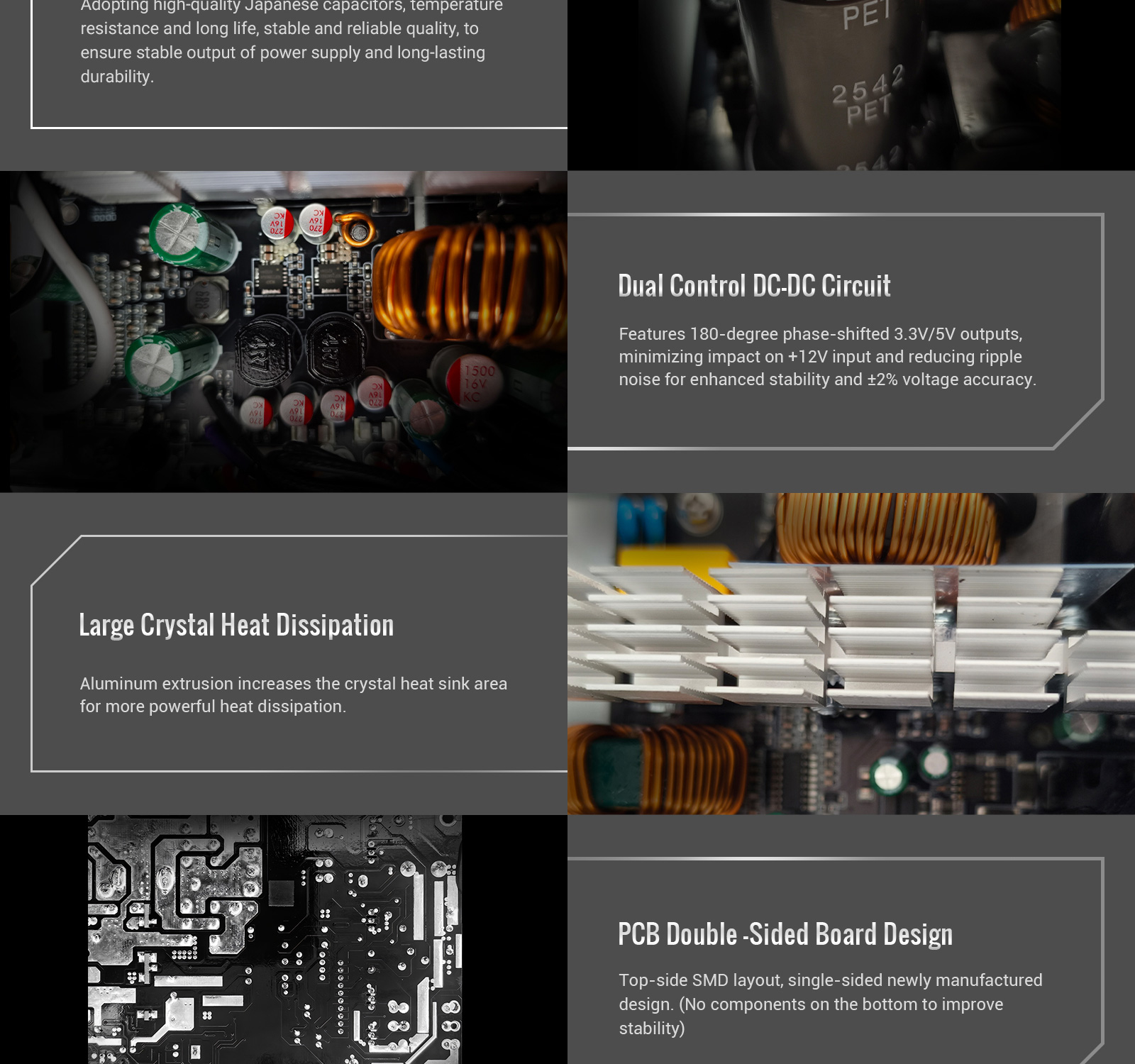

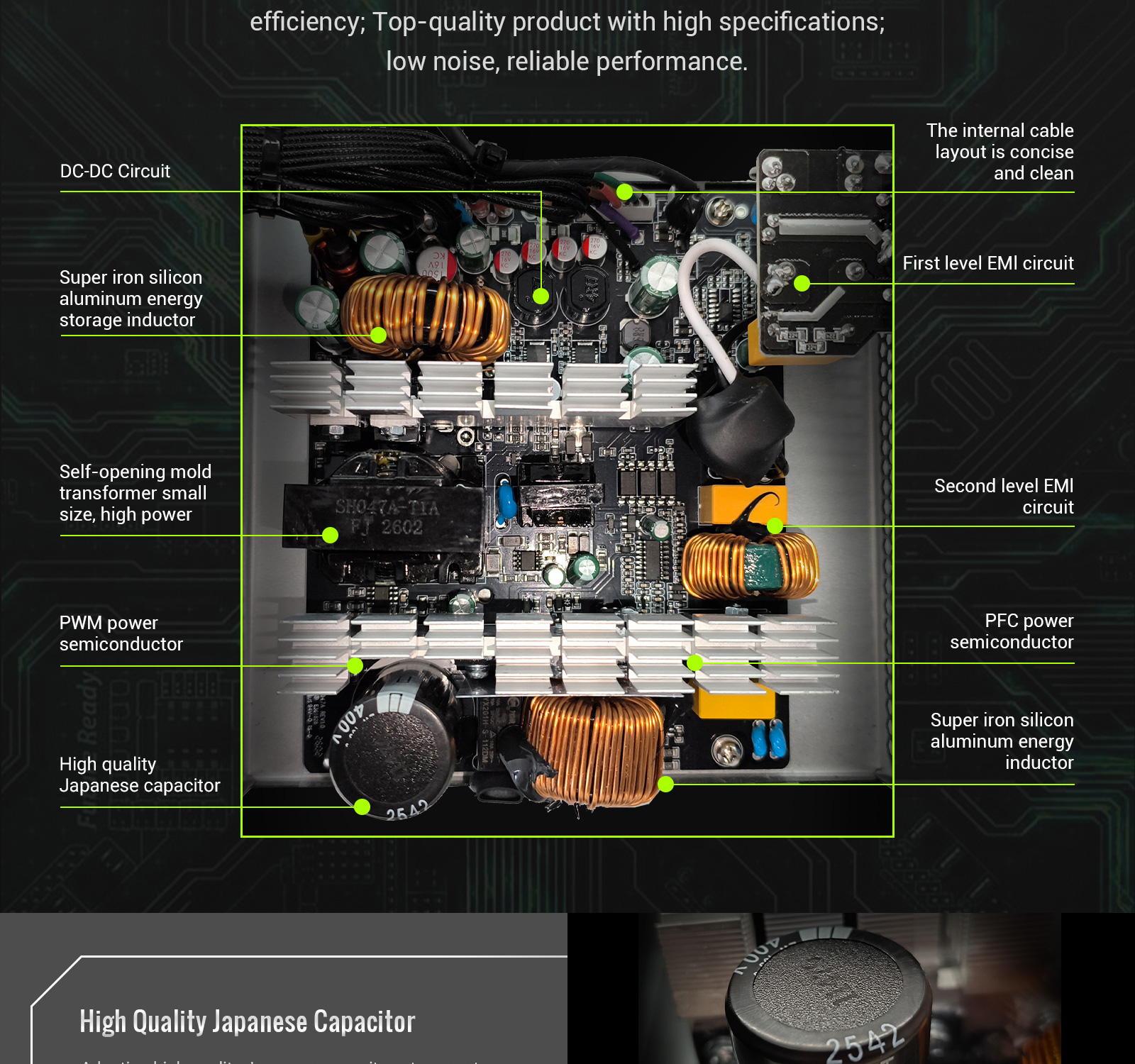

• Dual DC-DC Circuit: Features 180-degree phase-shifted 3.3V/5V outputs, lowers ripple noise and ensures ±2% voltage accuracy for better stability.
• Premium Japanese Capacitors: Equipped with high-quality Japanese capacitors to provide stable full-load output and long-lasting reliability.

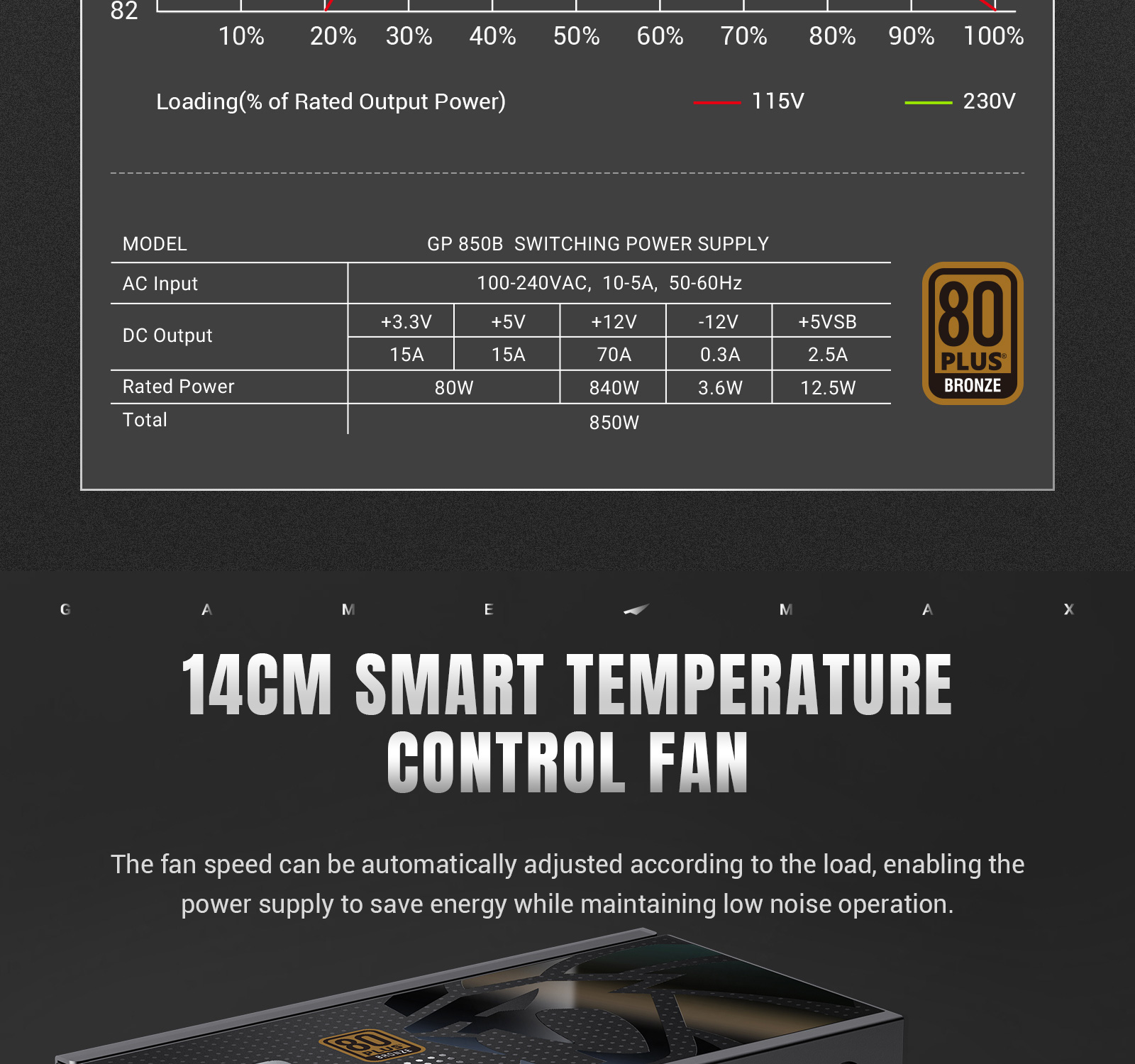

• 14cm Smart Fan: Automatically adjusts speed based on load, balancing energy efficiency and low-noise working.
• Double-Sided Top-Side SMD PCB: Single-sided component design improves product stability and precision.
• Enhanced Heat Dissipation: Aluminum extrusion and optimized cooling architecture ensure efficient cooling for stable long-term performance.

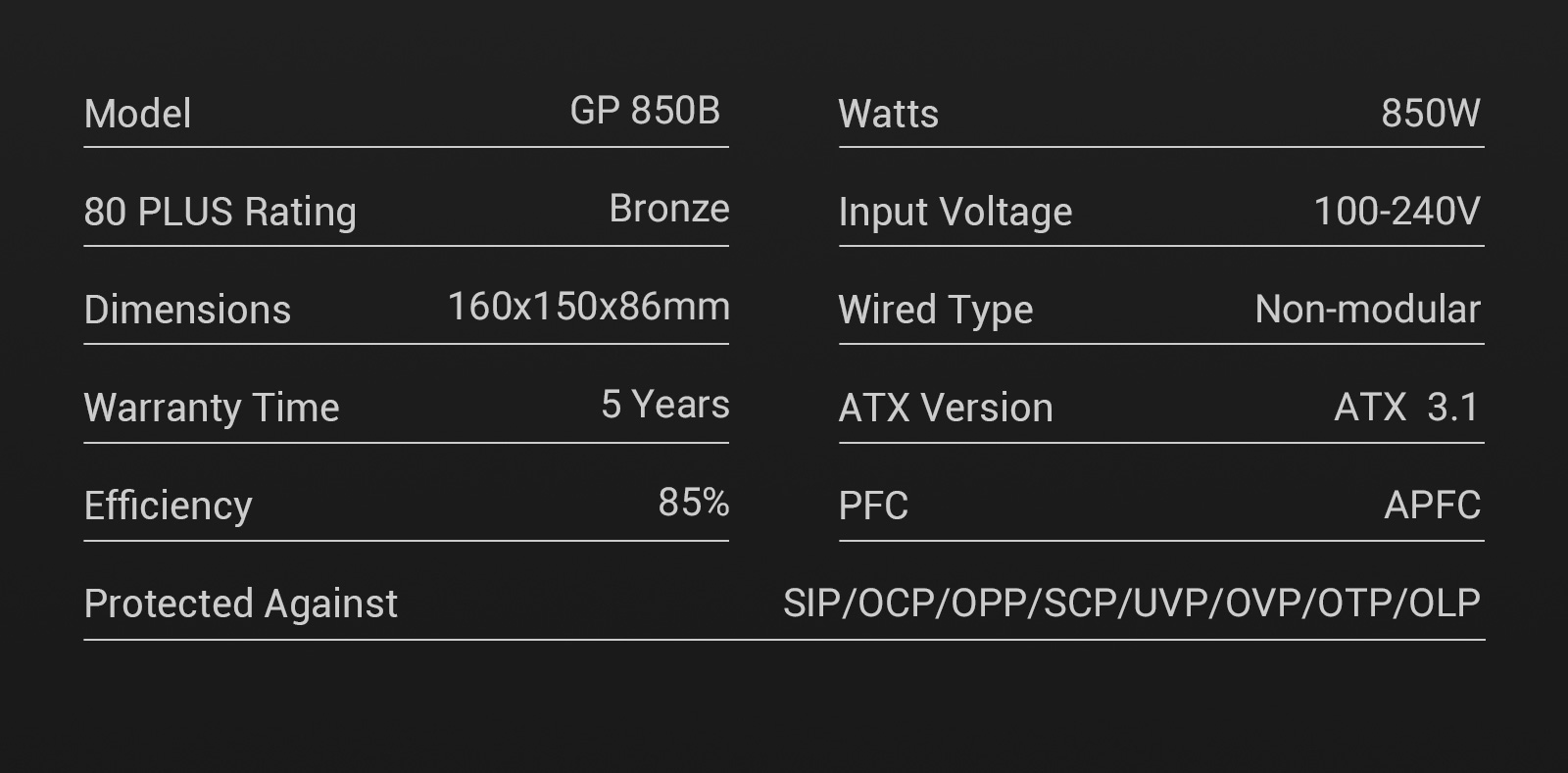

Detailed Specifications
| Dimensions: | 160mm x 85mm x 150mm (W x H x D) |
| Input Voltage: | 100-240 VAC |
| Input Current: | 10-5A |
| Input Frequency Range: | 50-60Hz |
| PFC: | Active PFC (>.99) |
| Power Good Signal: | 100-150 ms |
| Hold Up Time: | >10ms |
| Efficiency: | > 85% (87% max) |
| MTBF: | > 100,000 Hours |

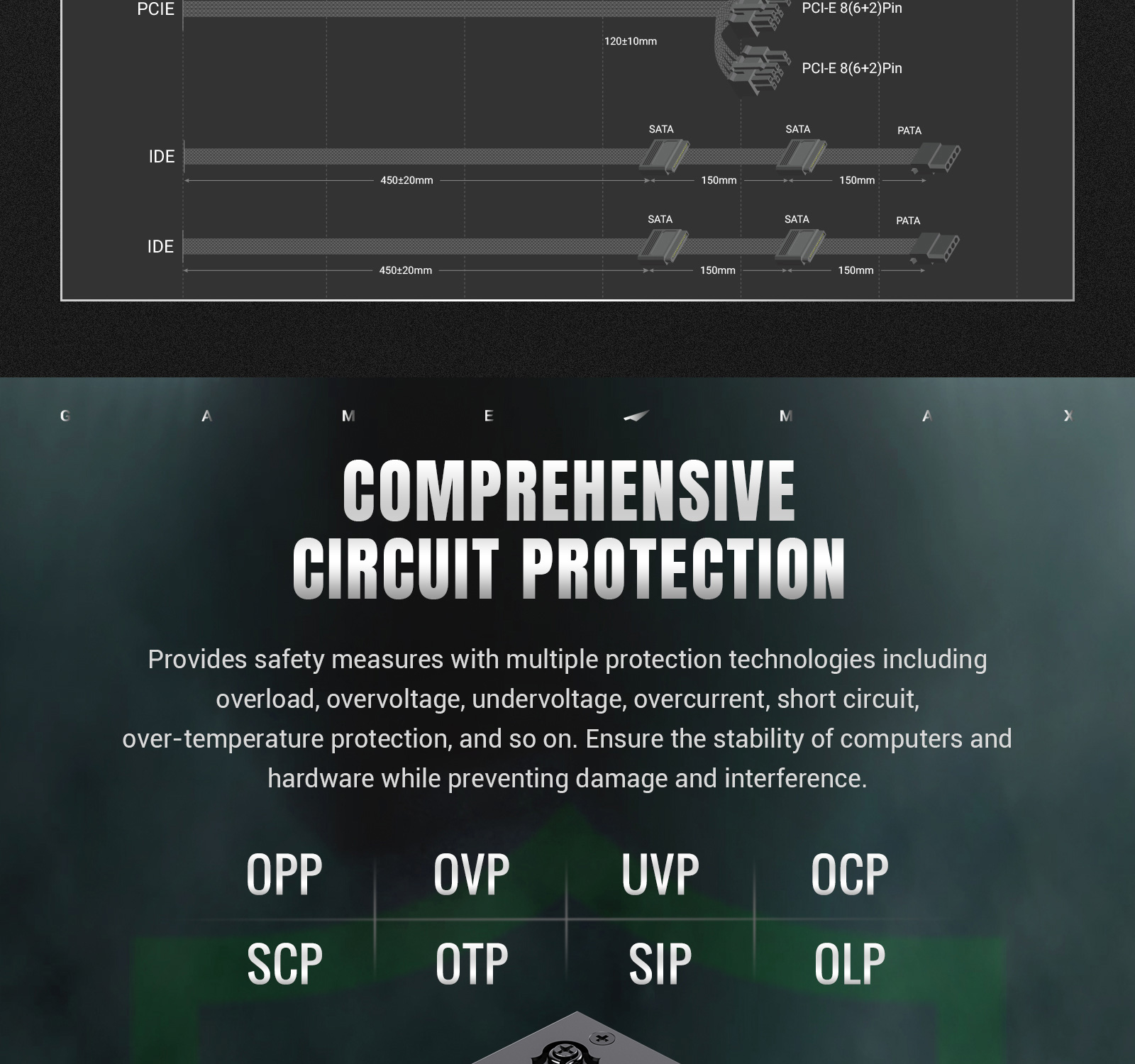

| Protection: | OPP / OVP/ UVP / OCP/ SCP / OTP / SIP / OLP / NLO |
| Power: | 850W |
| Operation Temperature: | 0-40C |
| Safety: | CE / FCC / CB |

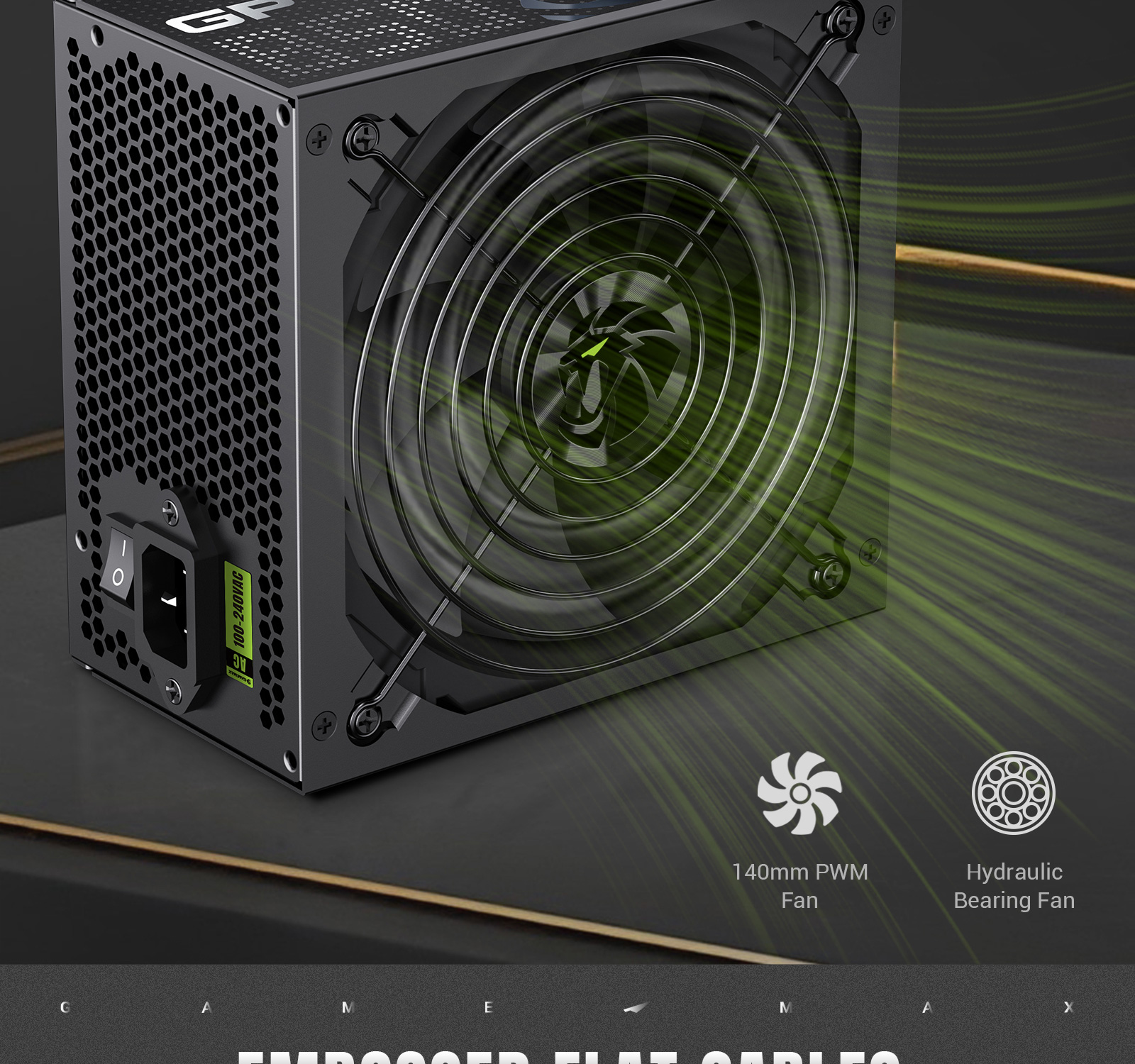

| Cooling: | 140mm Ultra Silent Fan |
| Noise: | <25dBa |

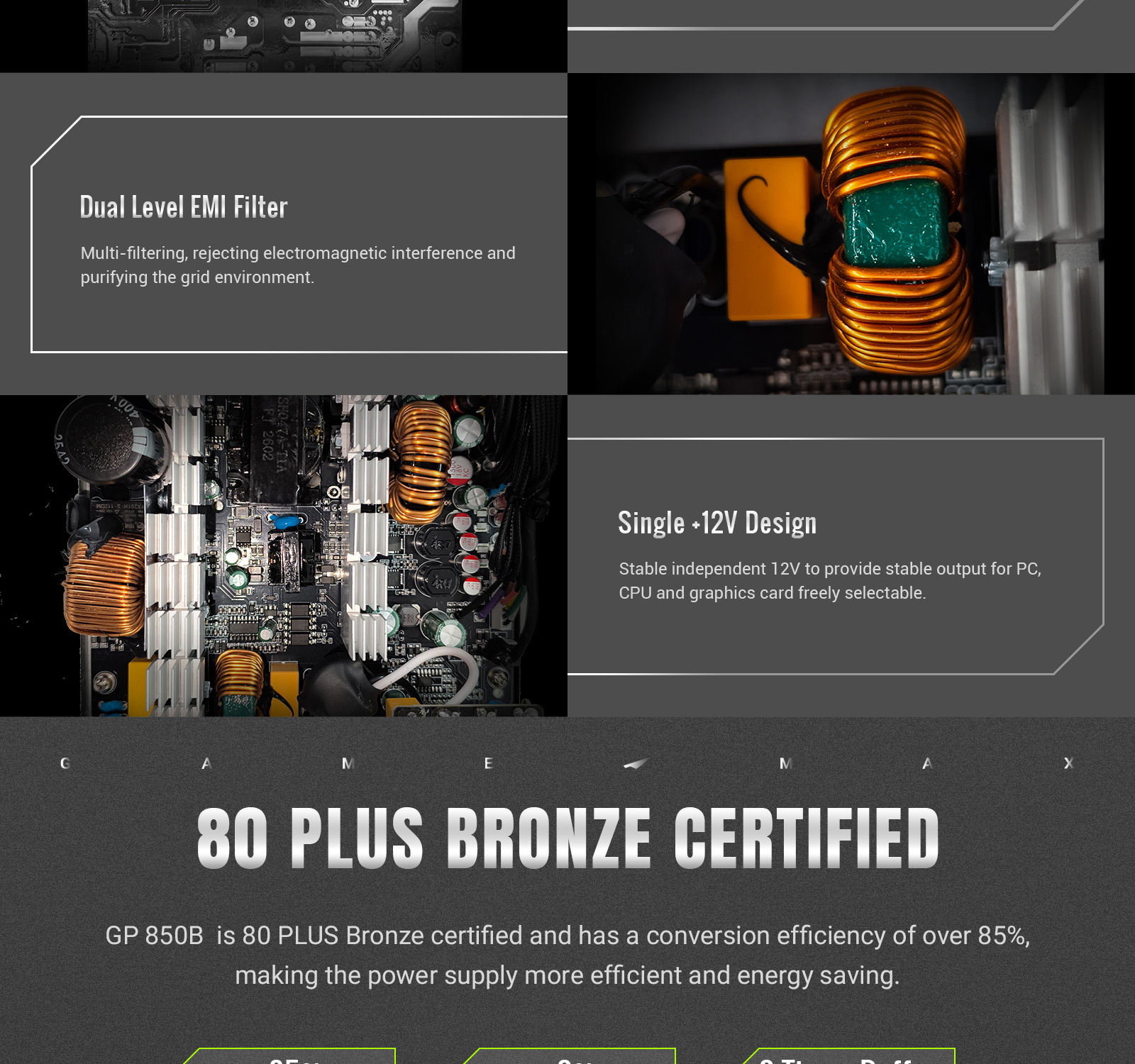

| 80 Plus Certified: | Yes - 80 Plus Bronze |
