The small form factor power supply for your big ideas.
• GameMax SFX Series power supplies bring legendary performance and reliability to the SFX small form factor standard
• They have the features found in full-size high-performance power supplies, with compliance with 80 PLUS efficiency, superior voltage regulation, along with smart fan controller for better reliability.

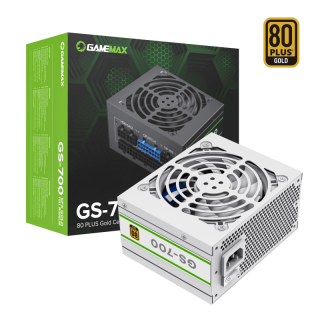

• SFX Modular 700W (2022)The new line of GameMax GS-700 is versatile in its application and powerful with a small footprint
• It is a standard SFX unit, measuring at 125 mm (L) x 100 mm (W) x 63.5 mm (H)
• The GS-700 is shipped with an SFX to ATX adapter bracket in the box, which allows the power supply to be mounted not only in the SFX form factor chassis, but also a standard ATX chassis should the user prefers to reserve more space for airflow inside the PC case
• The GameMax hybrid fan control is always enabled to optimize the cooling according to necessity.
SPECIFICATION
Power Output | ||||||
AC Input | Voltage: 100 V - 240 V | |||||
Current: 9 - 4.5 A | ||||||
Frequency: 50 Hz - 60 Hz | ||||||
DC Output | Rail | +3.3 V | +5 V | +12 V | -12 V | +5 VSB |
Maximum Power | 20 A | 20 A | 58 A | 0.3 A | 2.5A | |
110 W | 696 W | 3.6 W | 12.5 W | |||
Total continuous power | 750 W(Max. Output) |
OUTPUT CABLES
The new line of GameMax's GS-700 is versatile in its application and powerful with a small footprint. It is a standard SFX unit, measuring at 125 mm (L) x 100 mm (W) x 63.5 mm (H). The GS-700 is shipped with an SFX to ATX adapter bracket in the box, which allows the power supply to be mounted not only in the SFX form factor chassis, but also a standard ATX chassis should the user prefers to reserve more space for airflow inside the PC case. The GameMax hybrid fan control is always enabled to optimize the cooling according to necessity.
80 PLUS? GOLD
The GS-700 Gold Series achieves 80 PLUS? Gold certification with its 90 % efficiency at 50 % system load.
The 2022 version of the GS-700 measures at 125 and 100 mm in length and width. This super-compact size allows it to fit into various sized computer cases.
