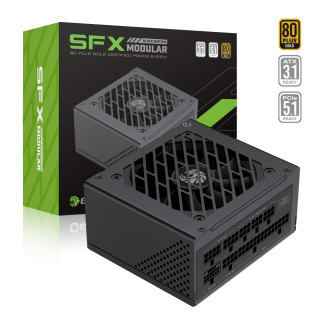

• The GameMax SFX Series Power Supplies offer compact, high-performance solutions designed for small form factor builds, combining efficiency and reliability in one package。

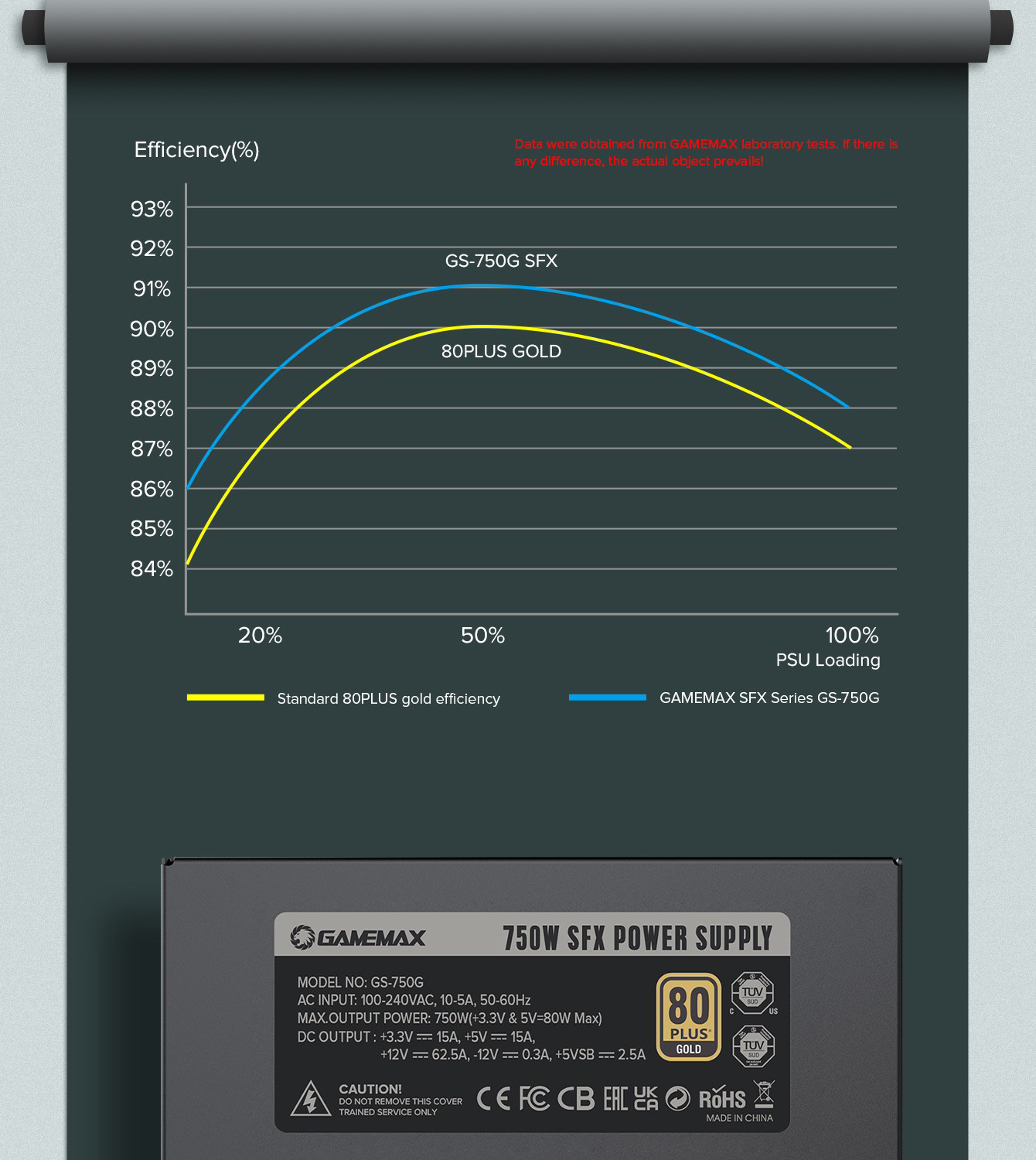

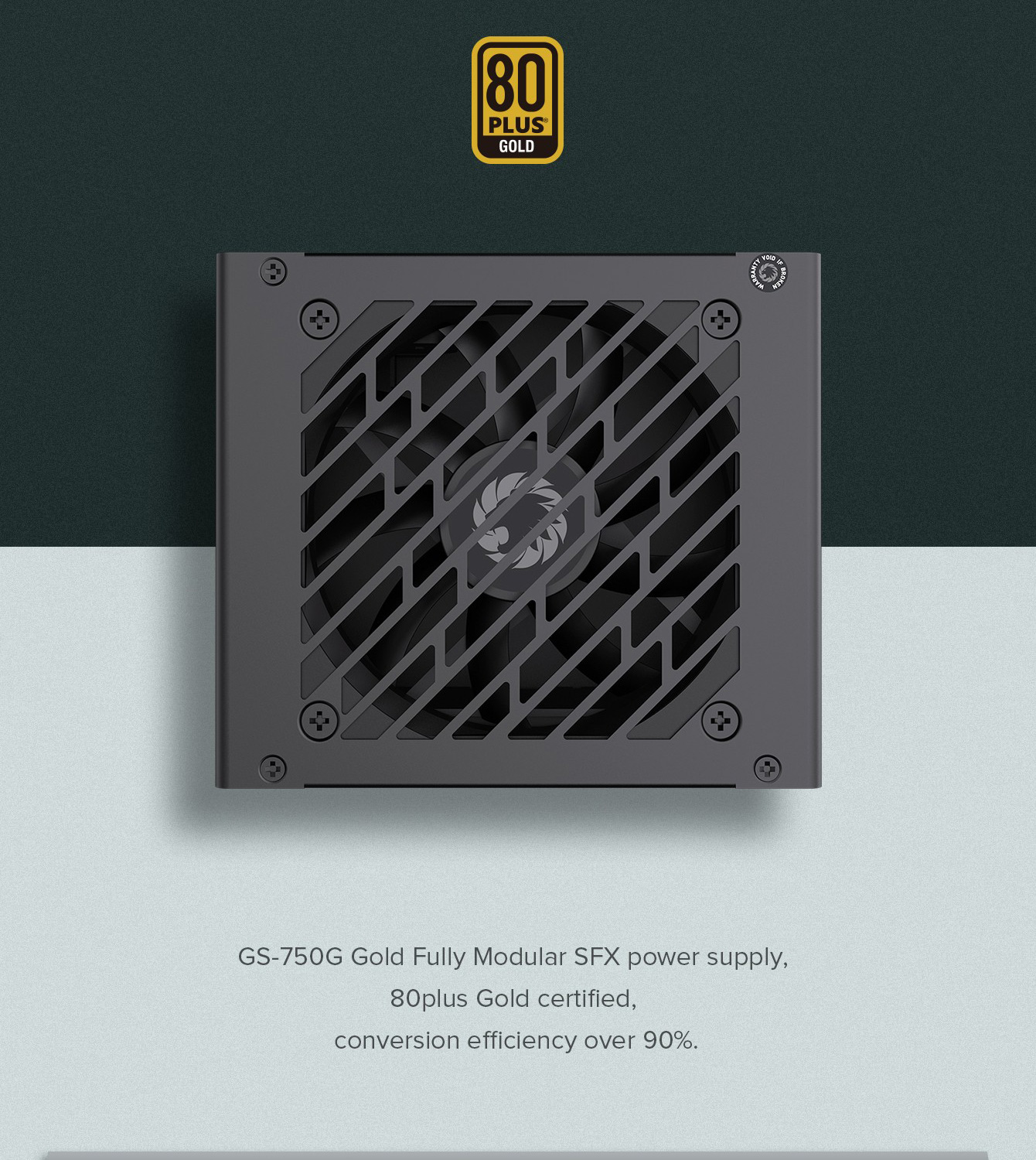

• Exceptional Performance: Certified 80 PLUS efficiency, precise voltage regulation, and smart fan control ensure dependable operation.

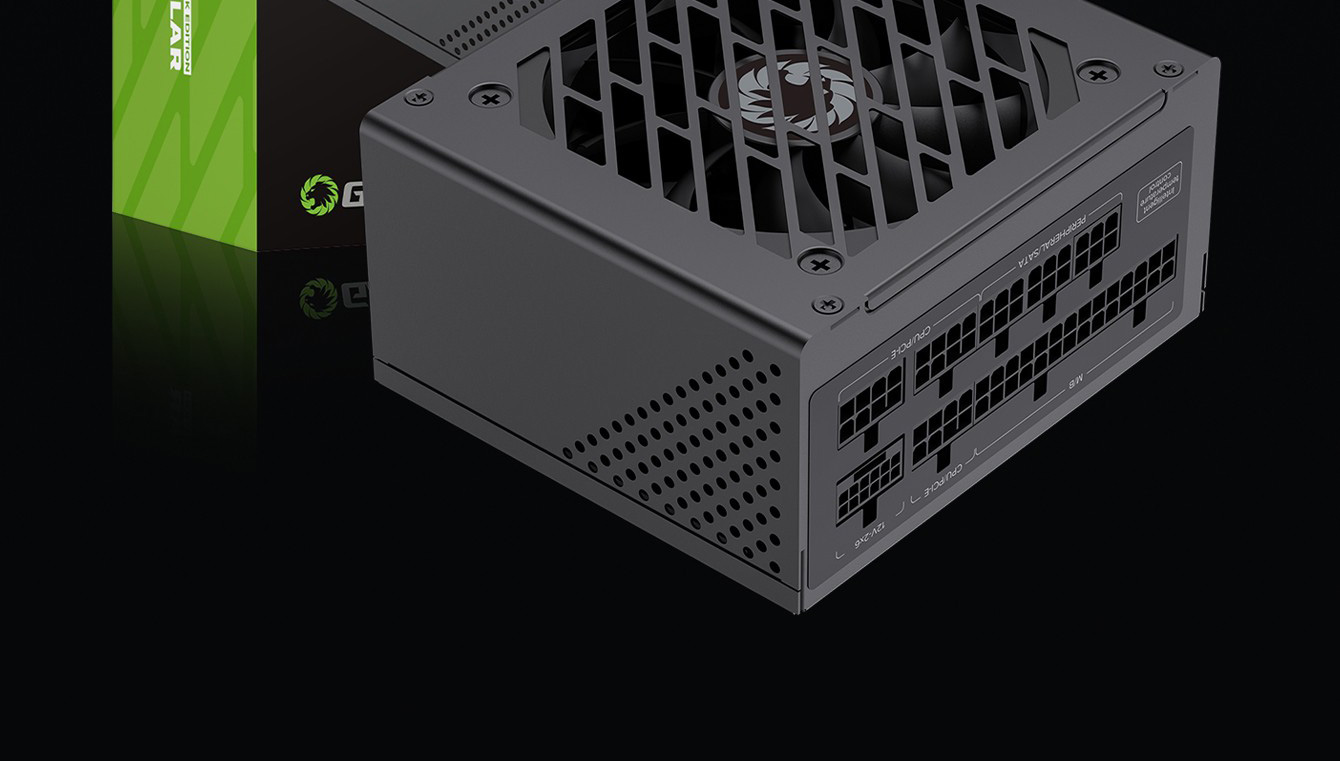

• Compact and Powerful: The SFX Modular 750W (2024) measures 125mm x 110mm x 65mm, delivering robust power in a small footprint.
• Flexible Installation: Includes an SFX to ATX adapter, enabling installation in both SFX and ATX cases for enhanced airflow flexibility.

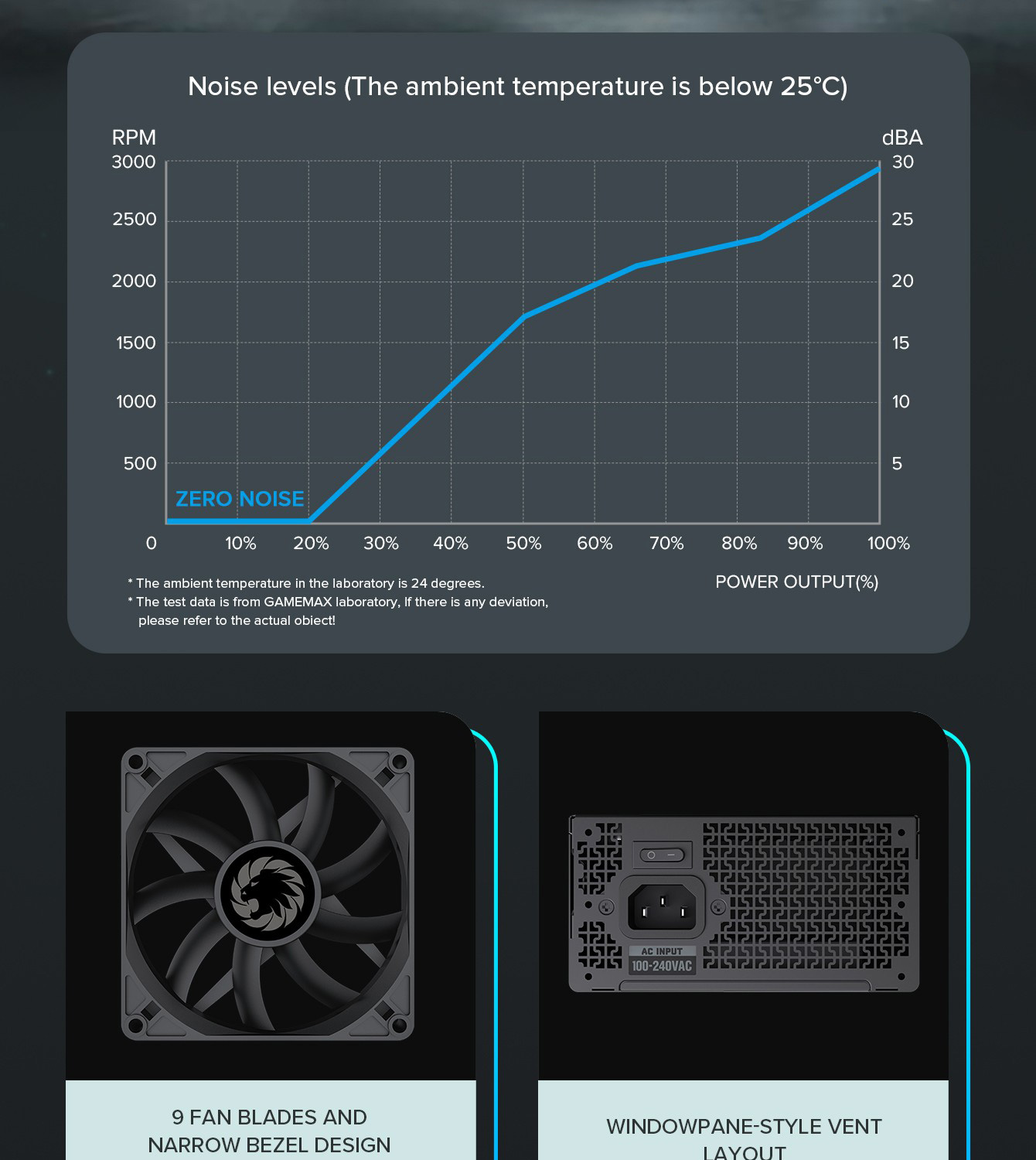

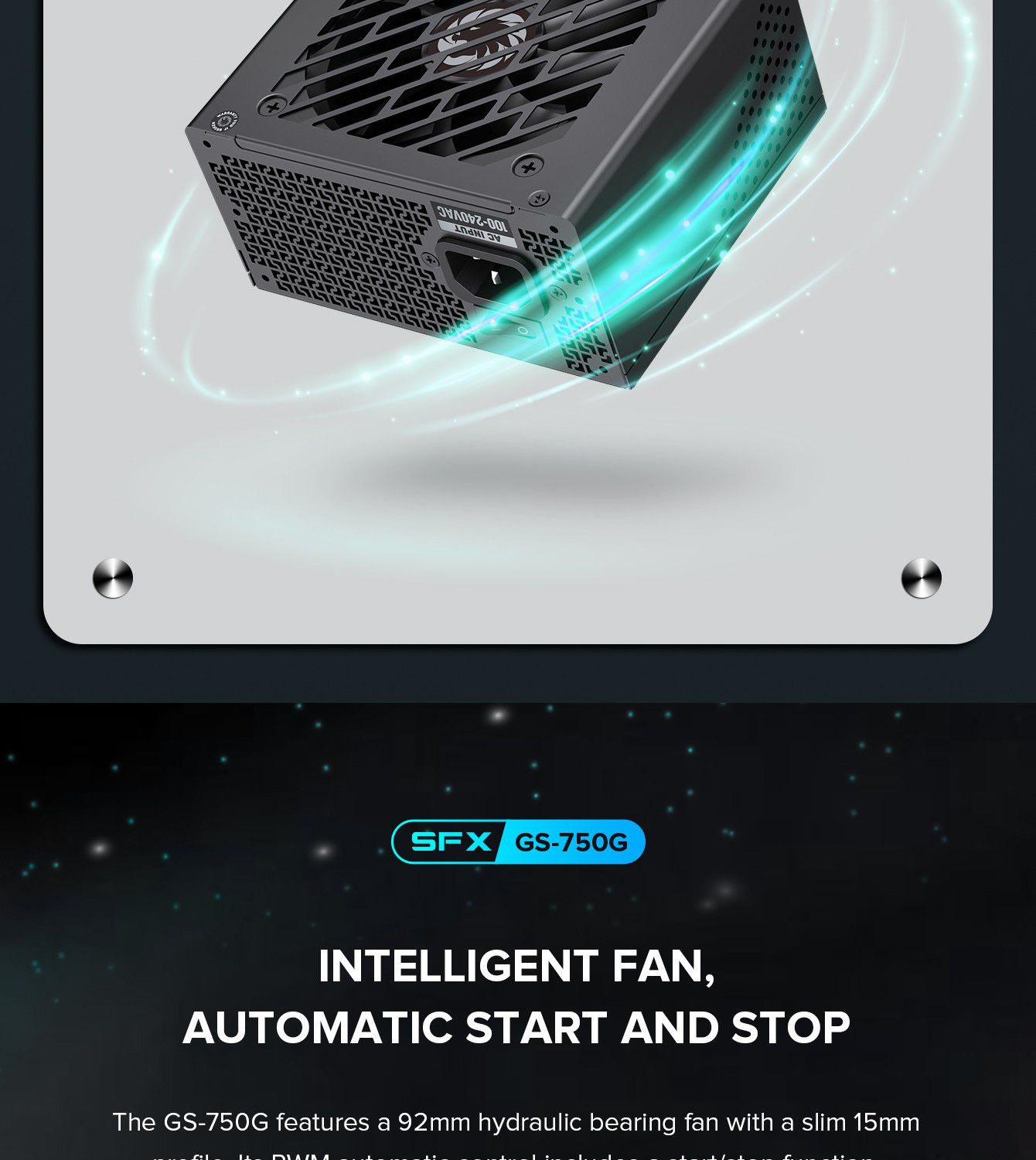

• Optimized Cooling: GameMax hybrid fan control automatically adjusts cooling based on system demands for maximum efficiency.

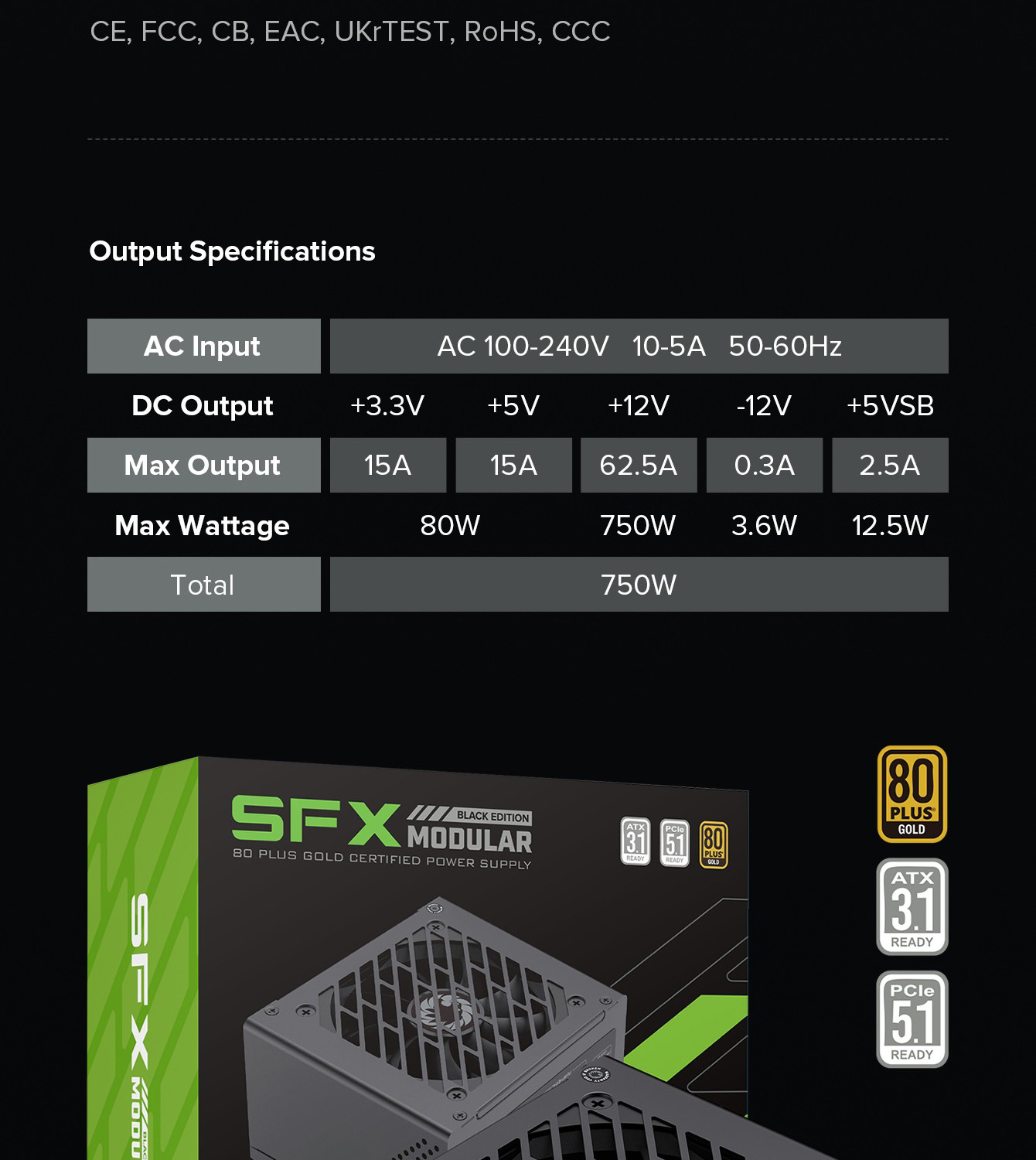

SPECIFICATION
Power Output | ||||||

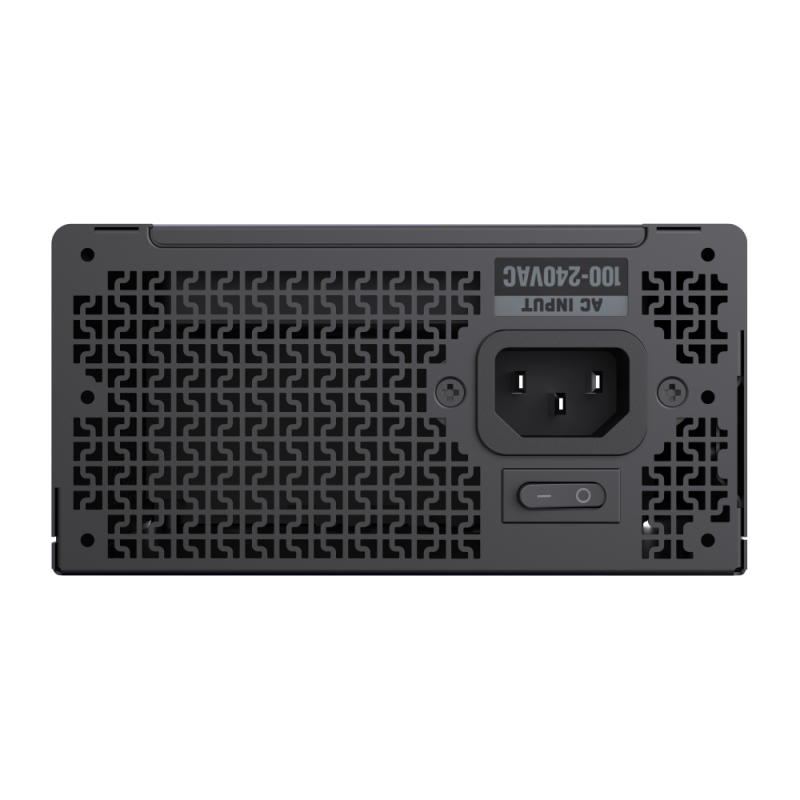

AC Input | Voltage: 100 V - 240 V | |||||
Current: 10 - 5 A | ||||||
Frequency: 50 Hz - 60 Hz | ||||||
DC Output | Rail | +3.3 V | +5 V | +12 V | -12 V | +5 VSB |
Maximum Power | 15 A | 15 A | 62.5A | 0.3 A | 2.5A | |
80 W | 750 W | 3.6 W | 12.5 W | |||
Total continuous power | 750 W(Max. Output) |
