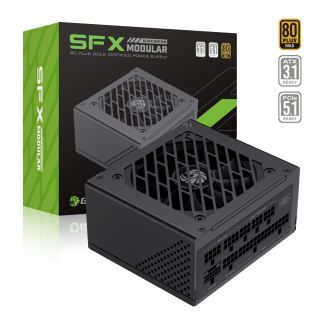

GS-850G Black

• The GameMax SFX Series Power Supplies offer compact, high-performance solutions designed for small form factor builds, combining efficiency and reliability in one package。

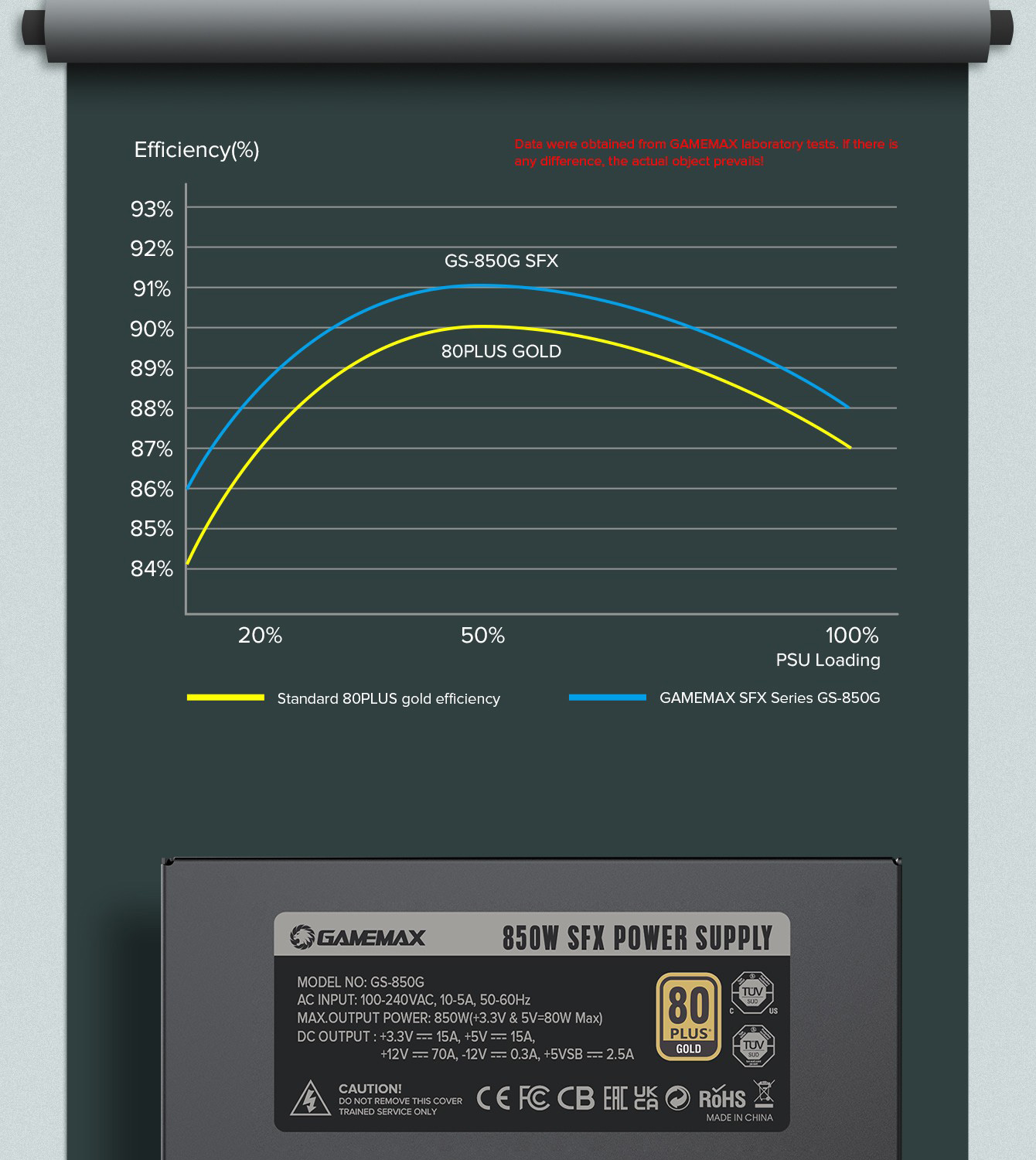

•  Exceptional Performance: Certified 80 PLUS efficiency, precise voltage regulation, and smart fan control ensure dependable operation.

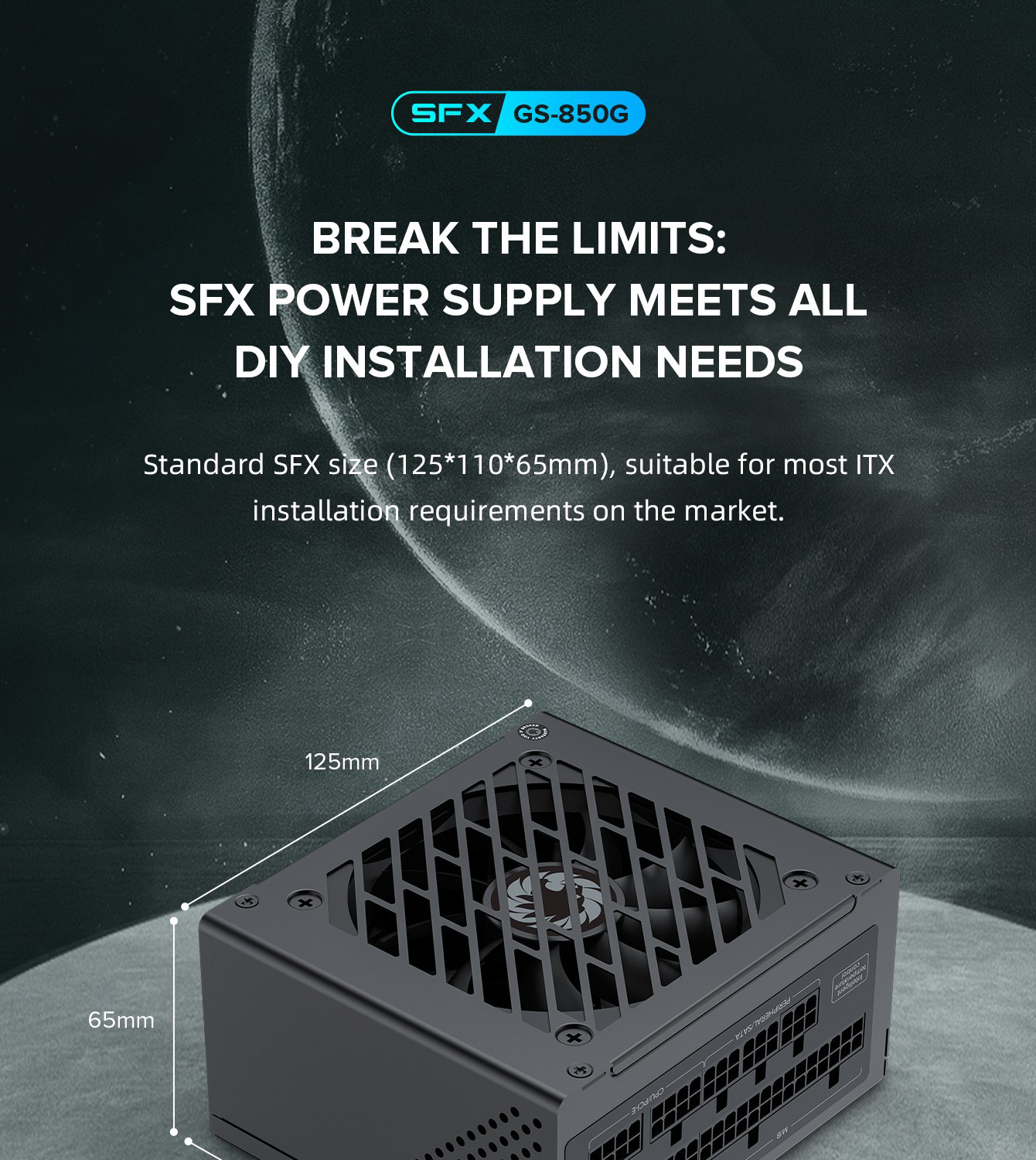

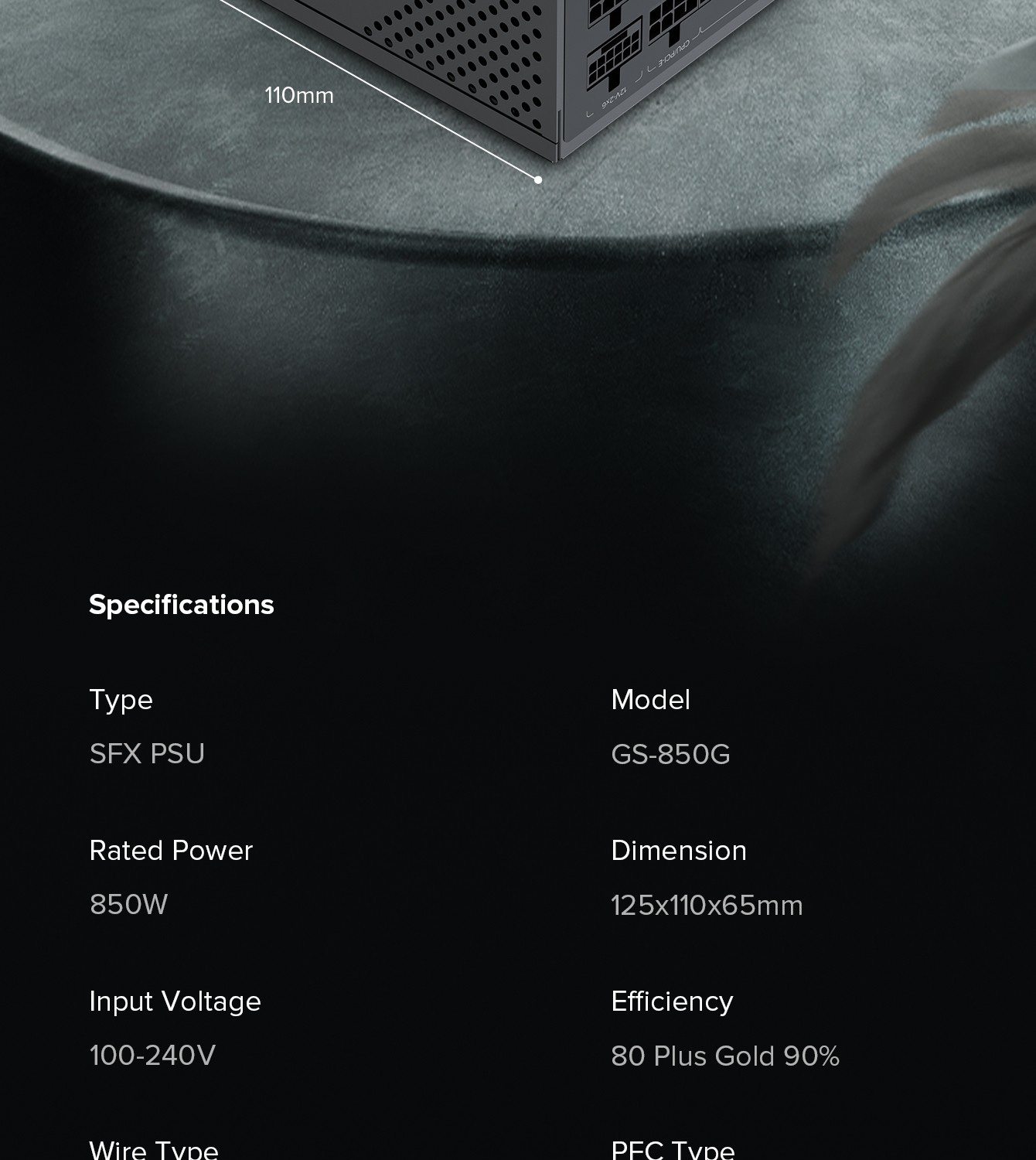

•  Compact and Powerful: The SFX Modular 850W (2024) measures 125mm x 110mm x 65mm, delivering robust power in a small footprint.
•  Flexible Installation: Includes an SFX to ATX adapter, enabling installation in both SFX and ATX cases for enhanced airflow flexibility.

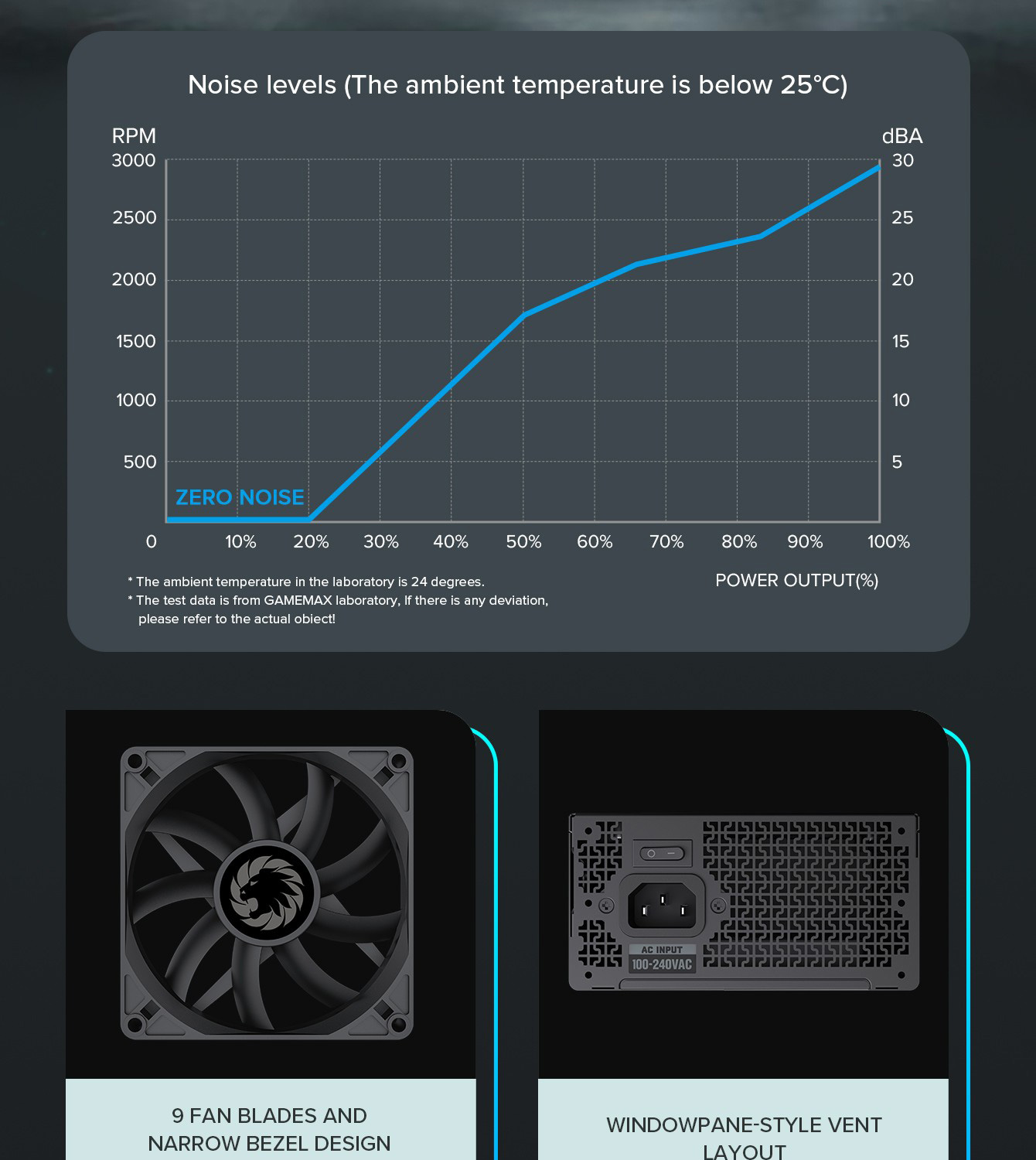

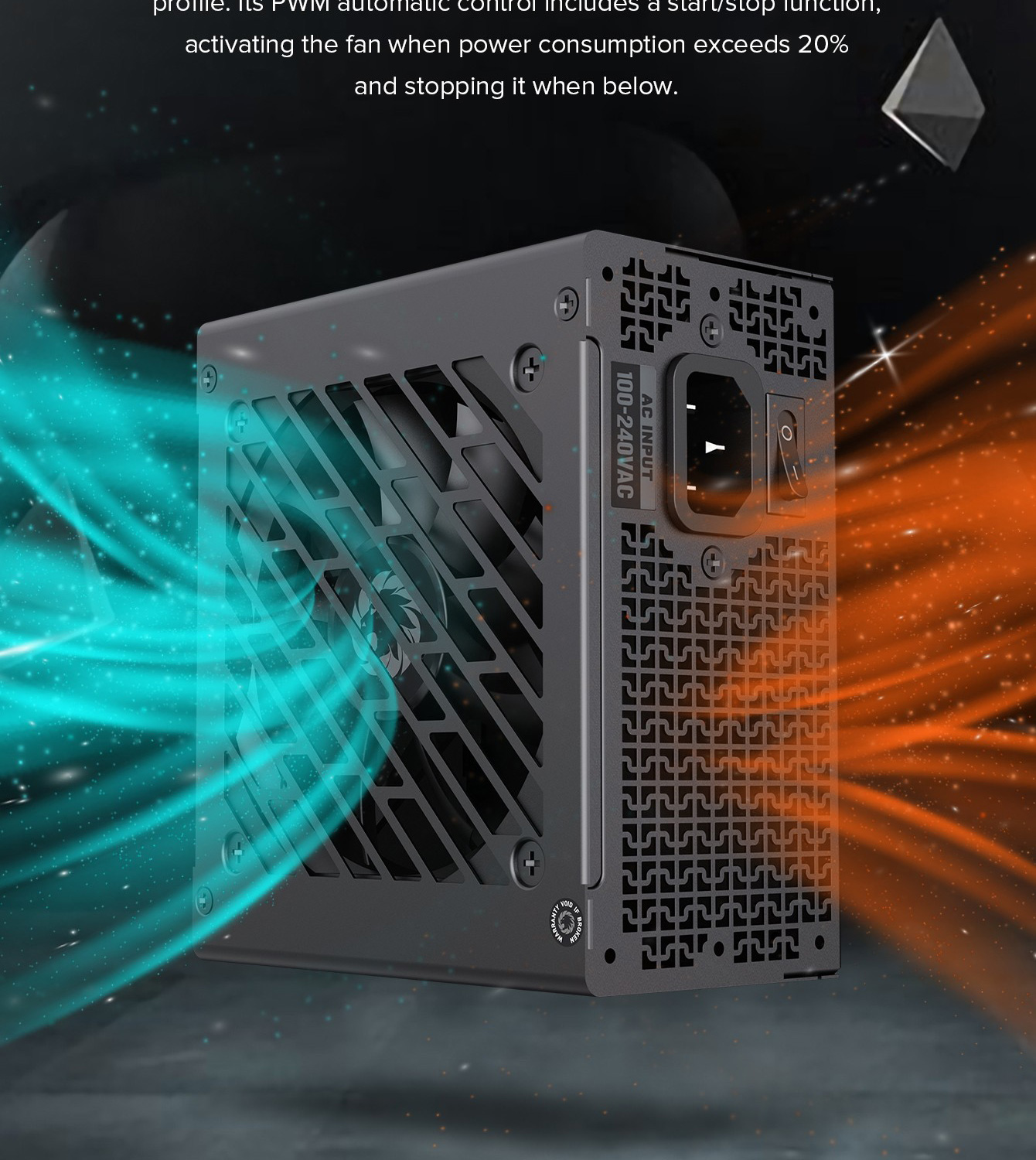

•  Optimized Cooling: GameMax hybrid fan control automatically adjusts cooling based on system demands for maximum efficiency.


SPECIFICATION

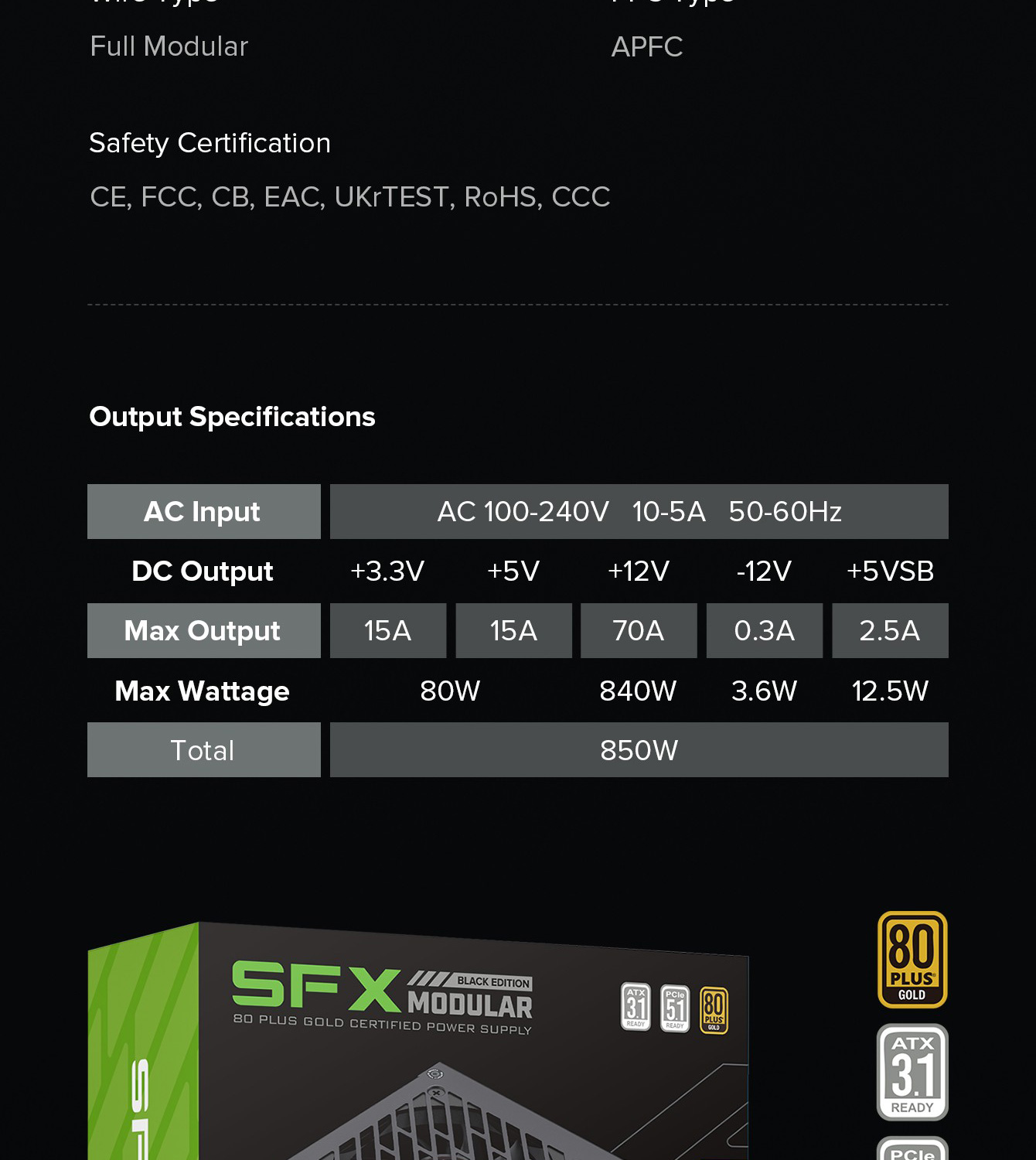

Power Output

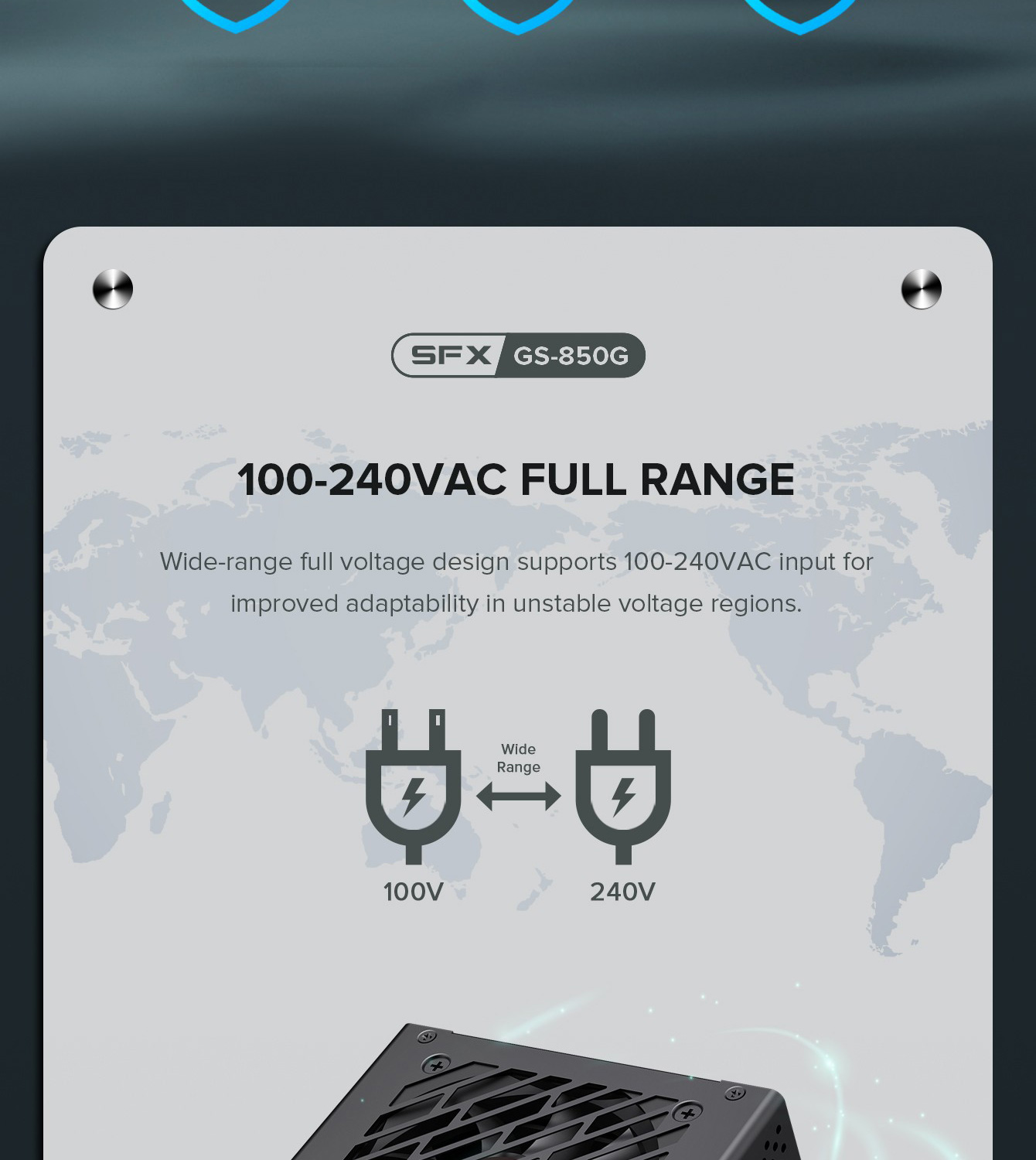

AC InputVoltage: 100 V - 240 V
Current: 10 - 5 A
Frequency: 50 Hz - 60 Hz
DC OutputRail+3.3 V+5 V+12 V-12 V+5 VSB
Maximum Power15 A15 A70A0.3 A2.5A
80 W840 W3.6 W12.5 W
Total continuous power850 W(Max. Output)

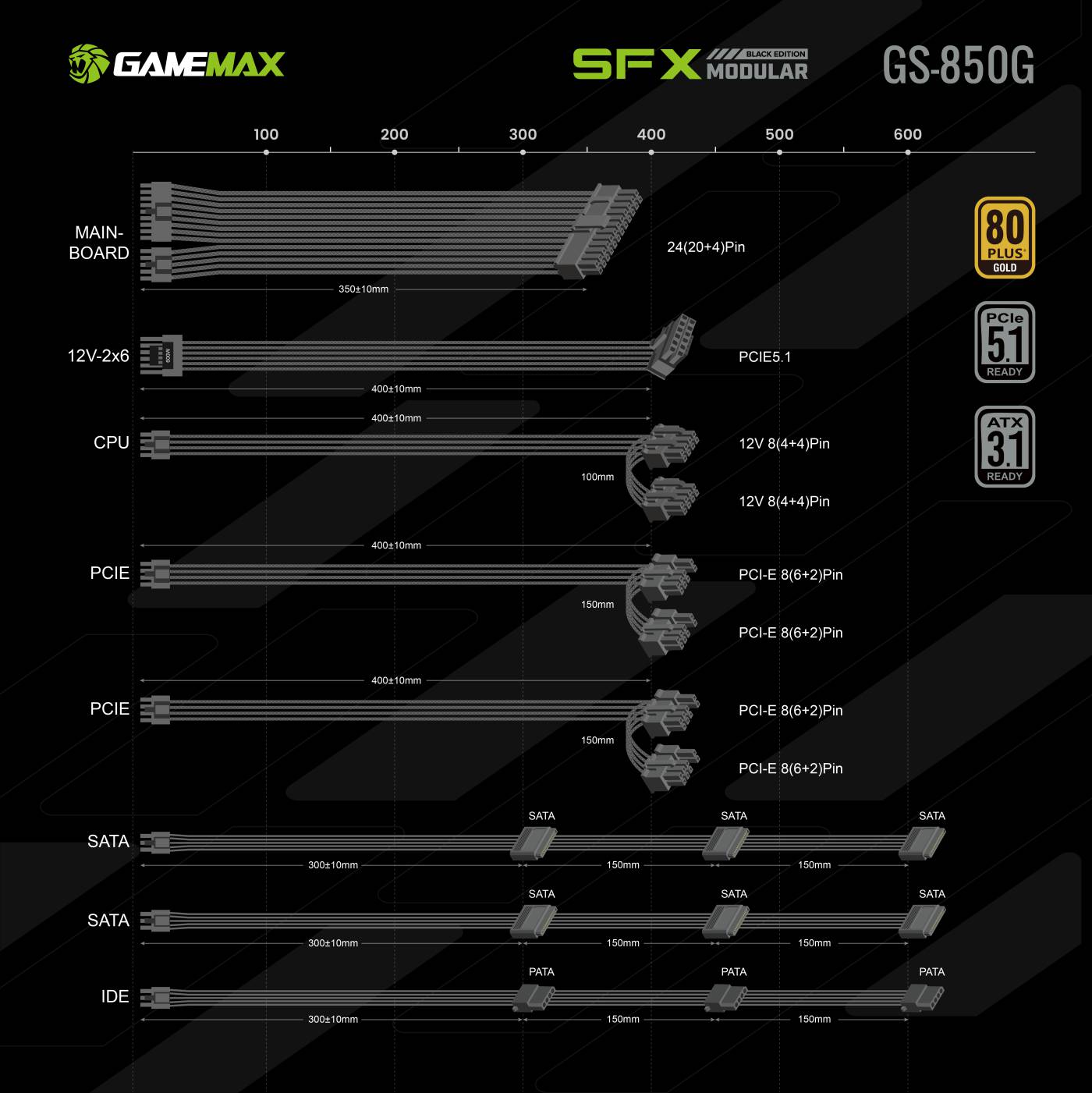

GS-850G BK 11.png
