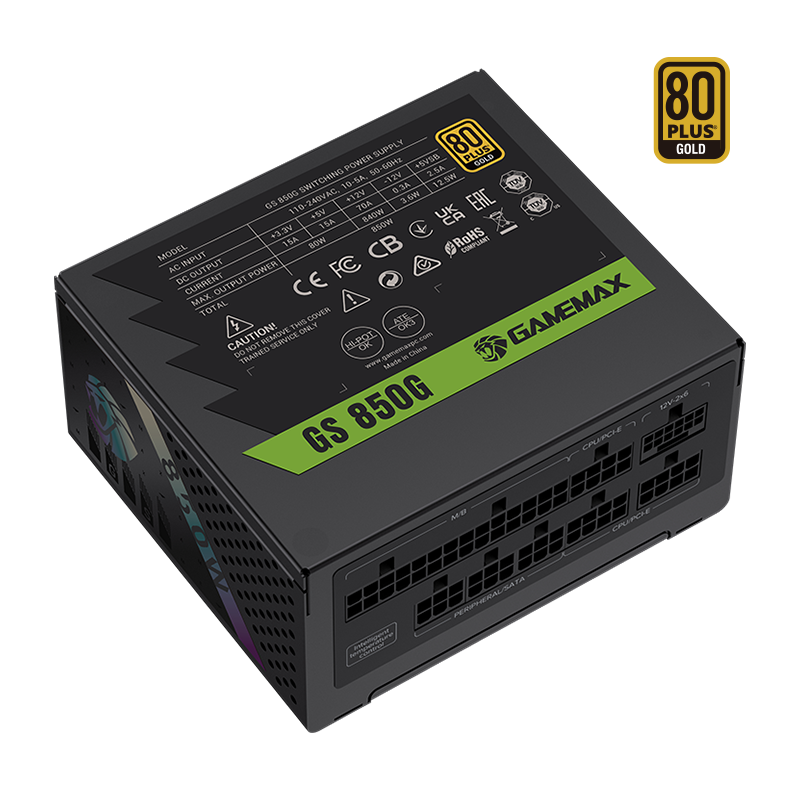

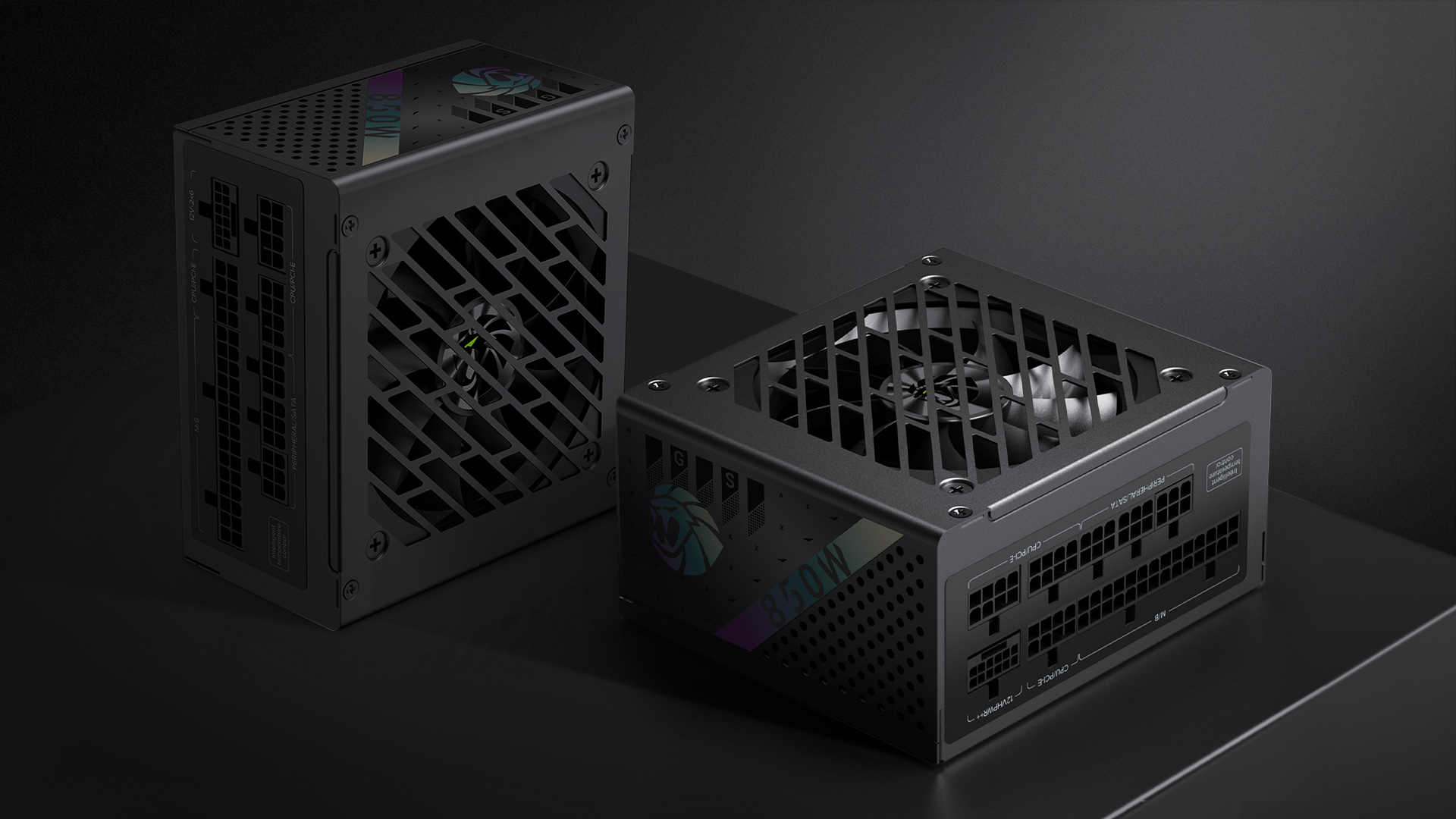

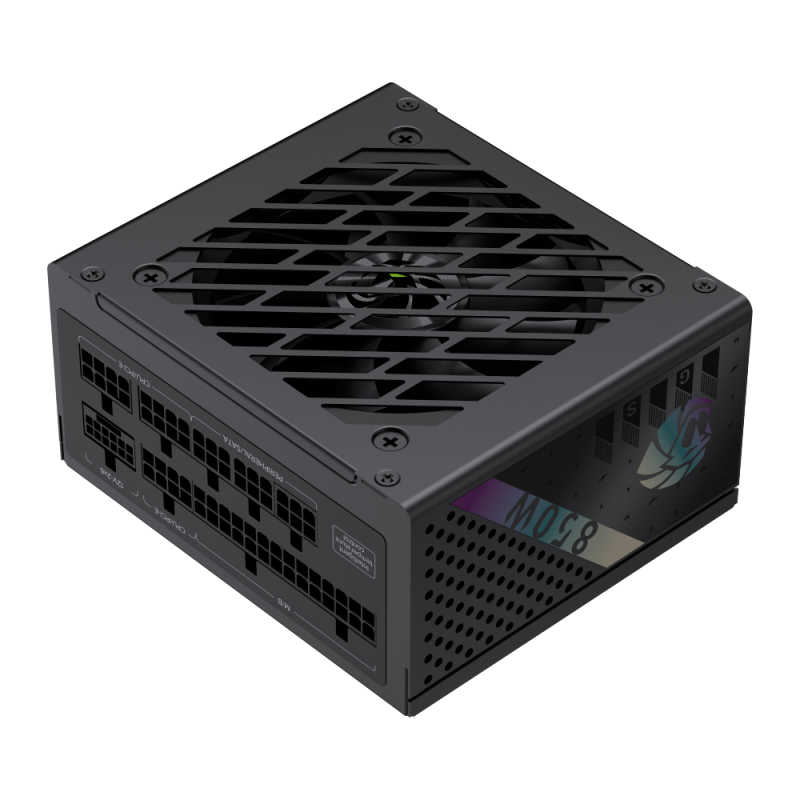

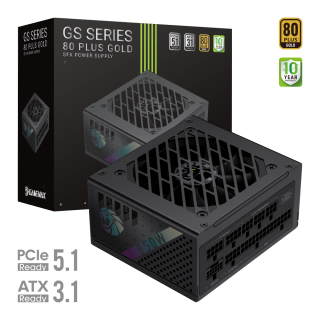

GS 850G 80 Plus Gold Certified SFX Power Supply with Intelligent Cooling, Japanese Capacitors, and Comprehensive Protection
• 80 Plus Gold Certified Efficiency: Enhances power efficiency and stability, reducing the risk of system crashes.
• High-Quality Japanese Capacitors: Ensures long-term reliability and stability with 105°C electrolytic and solid-state capacitors.

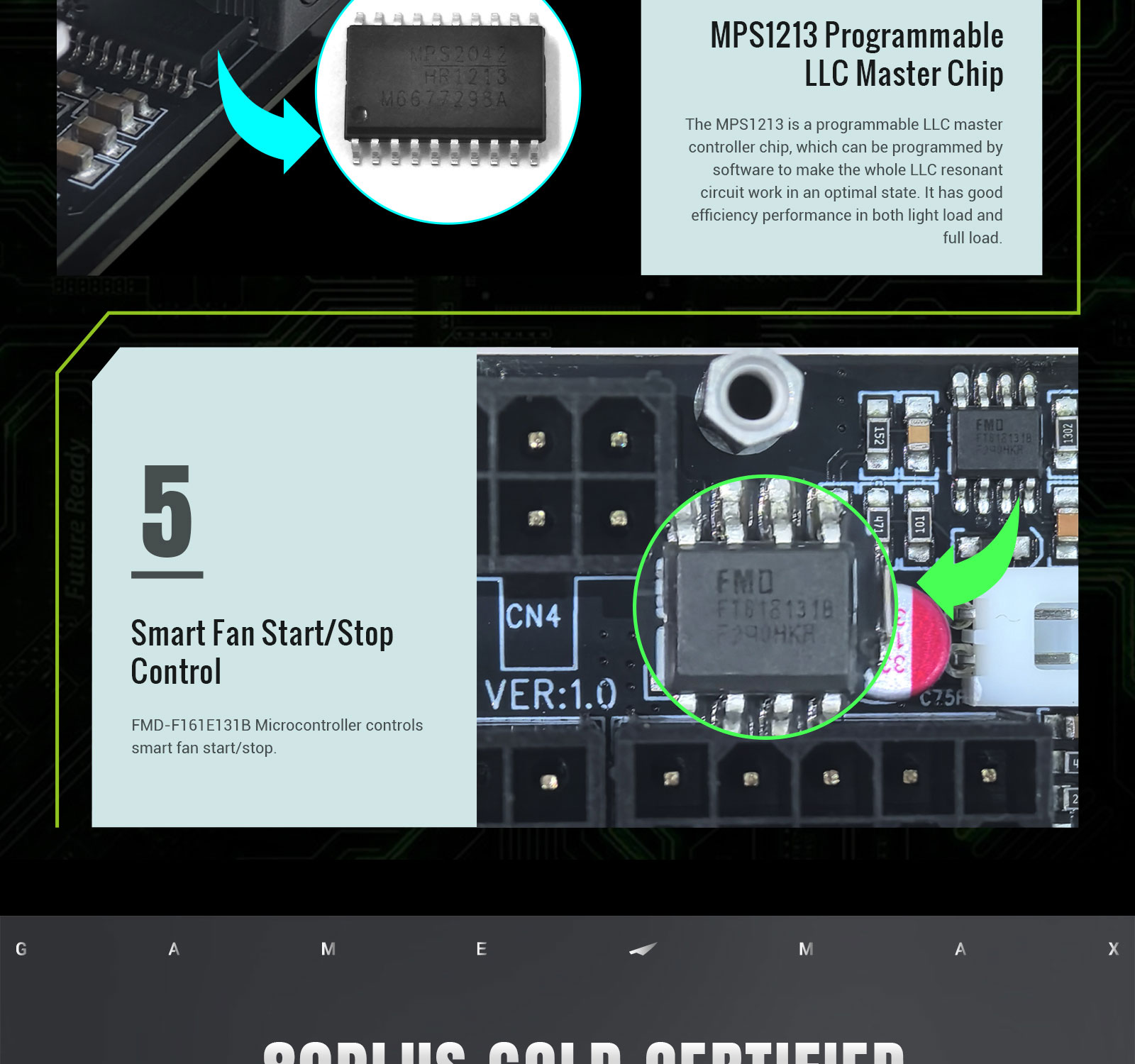

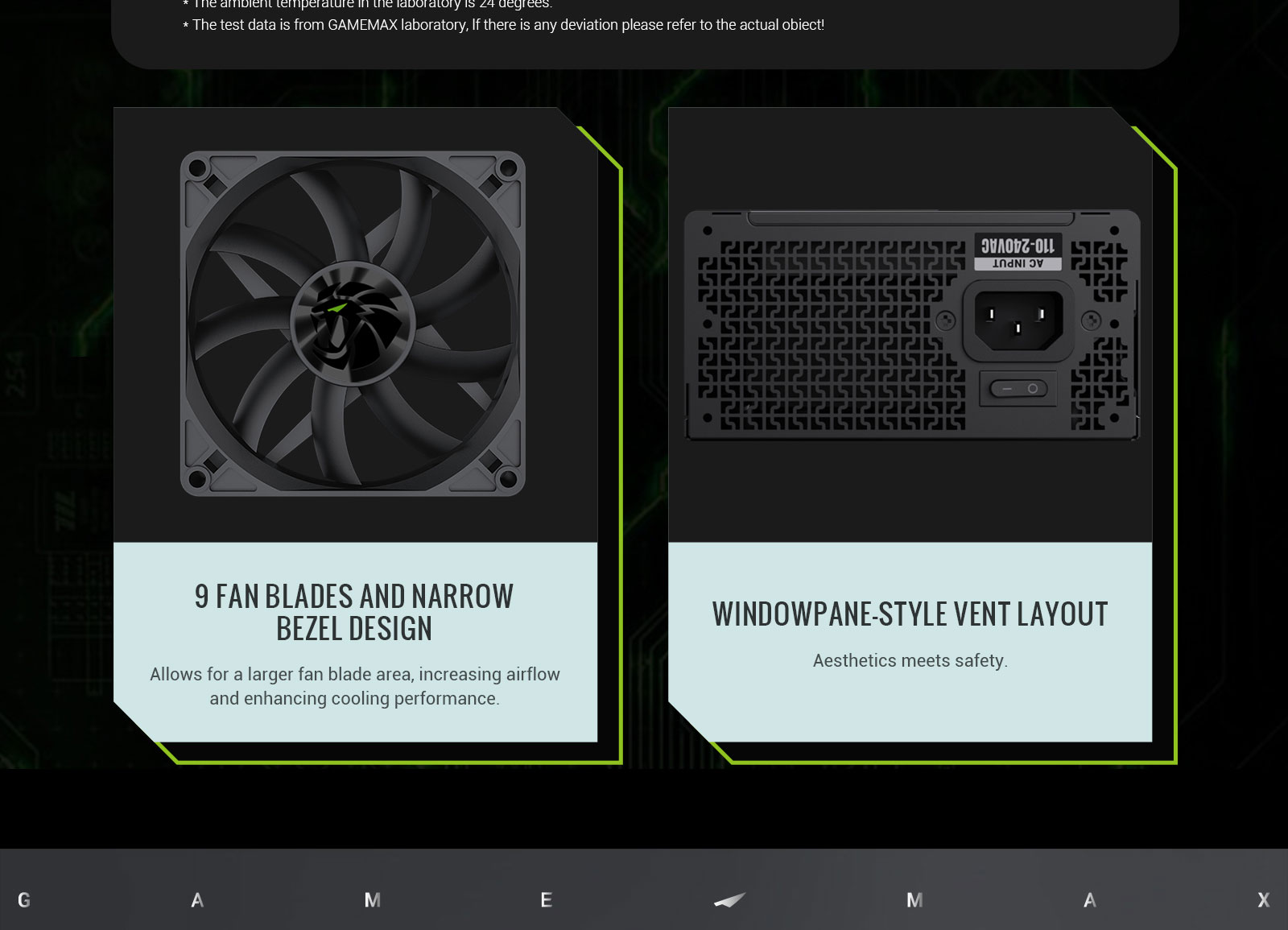

• Intelligent Fan Control: 9.2cm hydraulic bearing fan with PWM automatic control starts and stops based on power consumption (above 20% and below), optimizing cooling and noise.

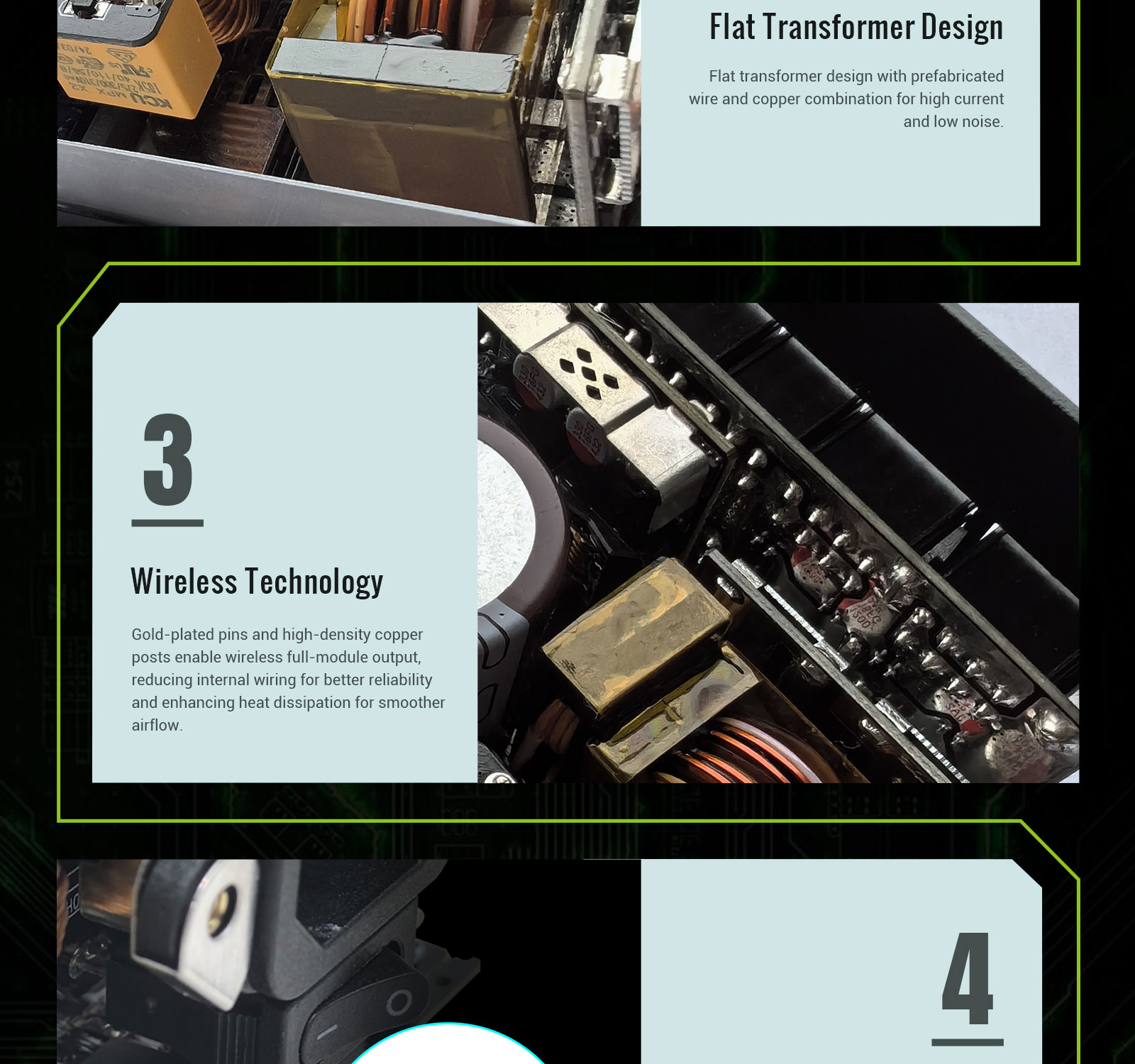

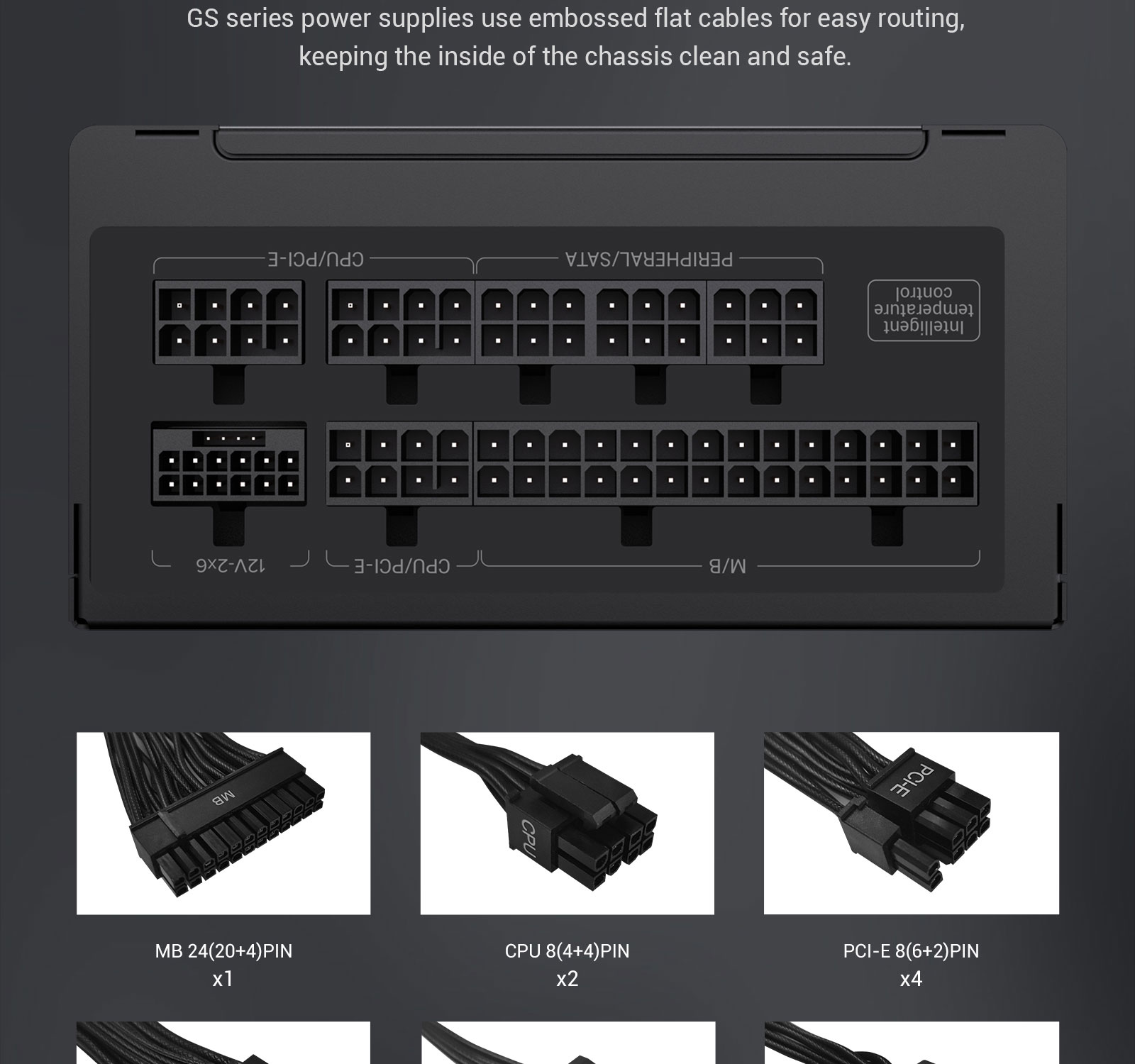

• Advanced Wireless Output Design: Gold-plated pins and high-density copper posts enable efficient, reliable power output and improved heat dissipation.

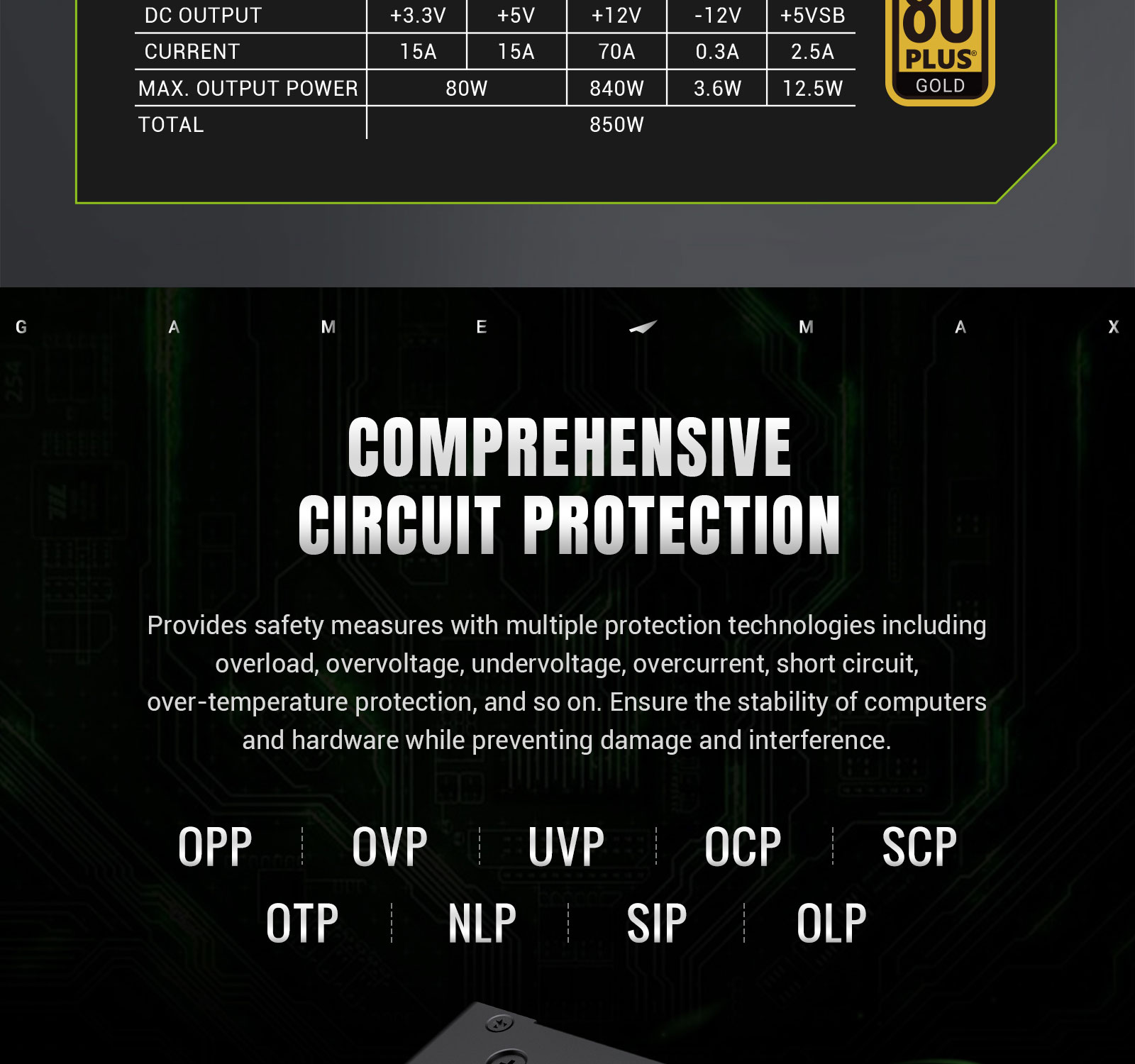

• Comprehensive Circuit Protection: Provides multi-layered protection (OPP, OVP, UVP, OCP, SCP, OTP) to safeguard your PC and components from damage.

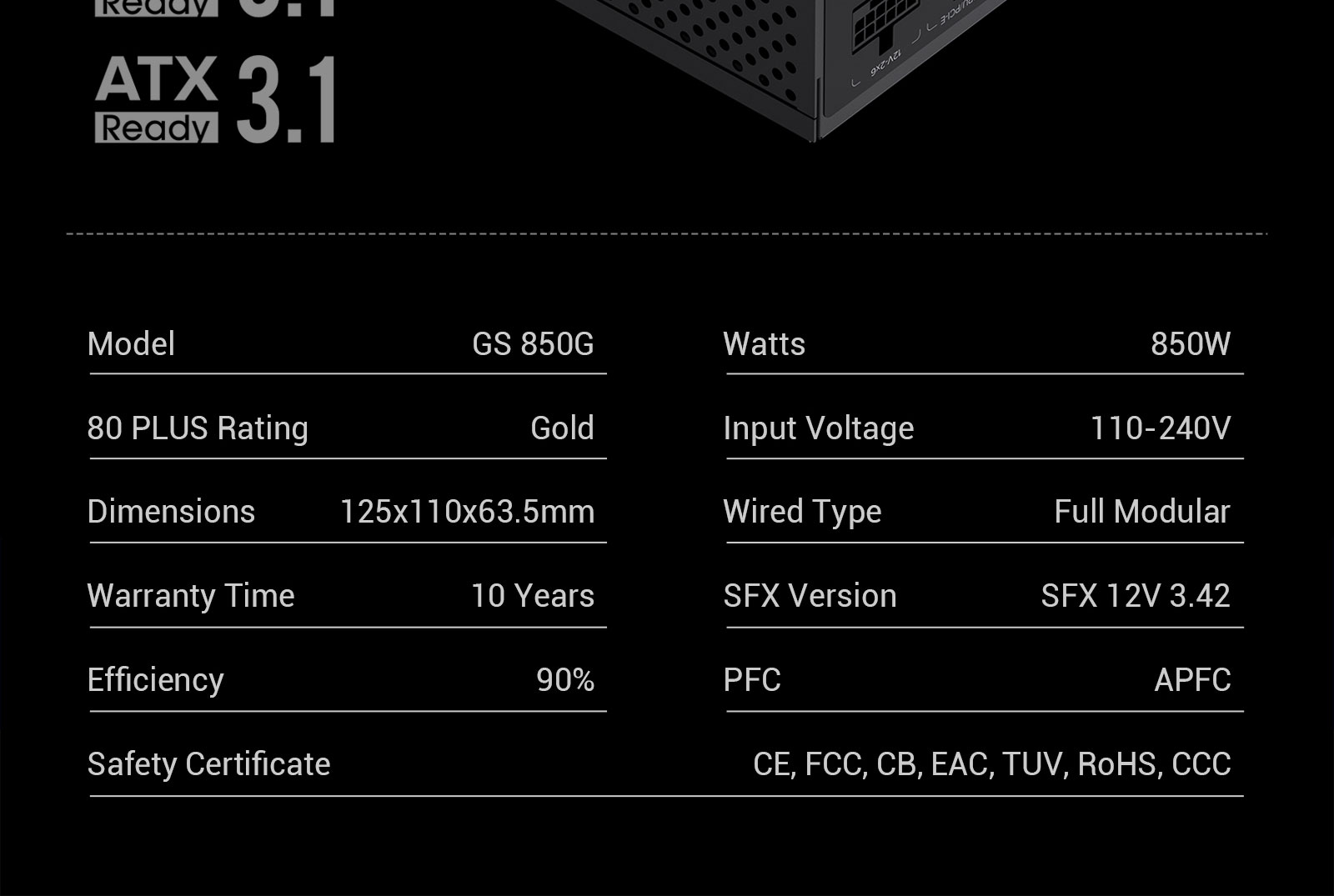

Detailed Specifications

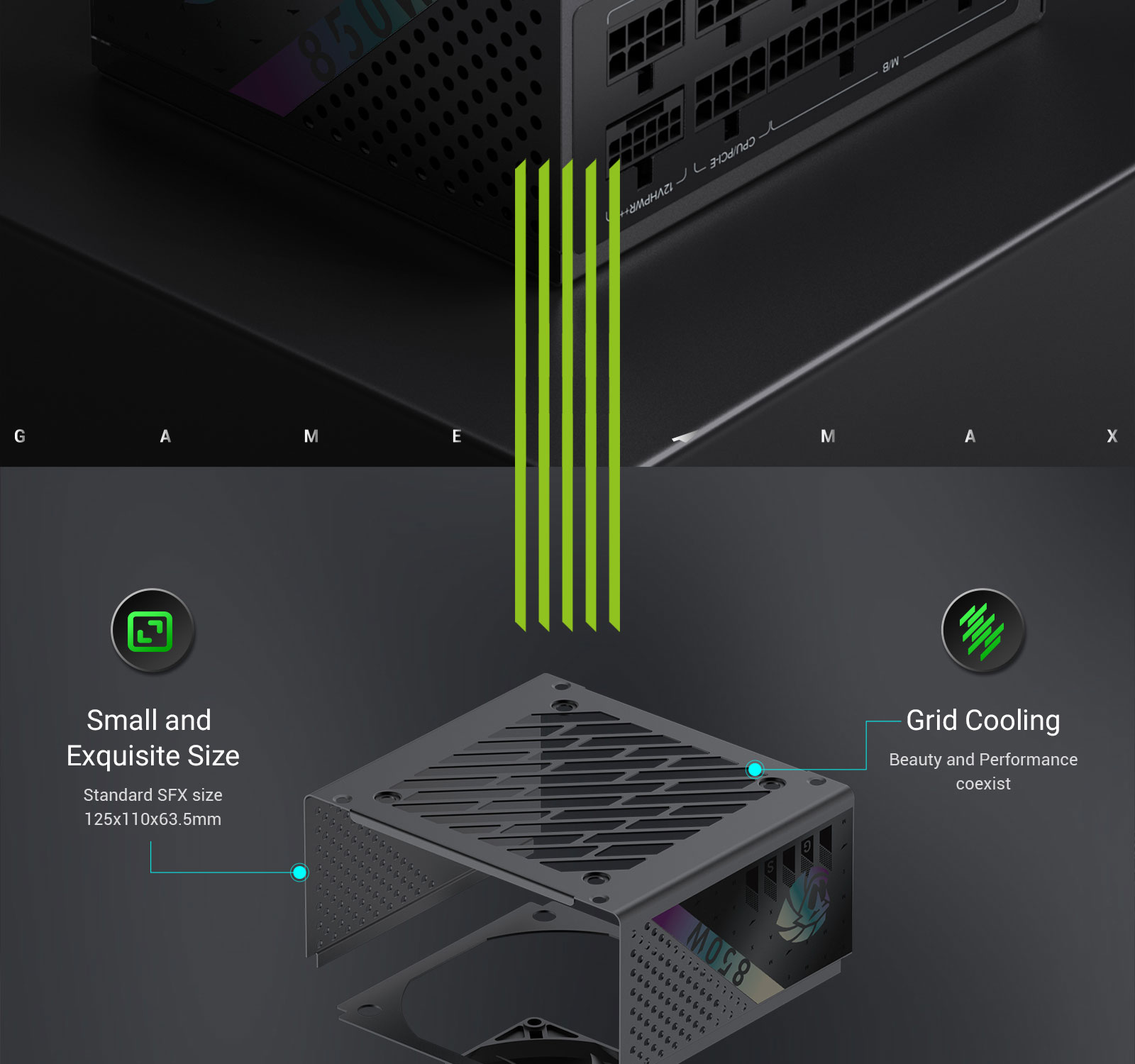

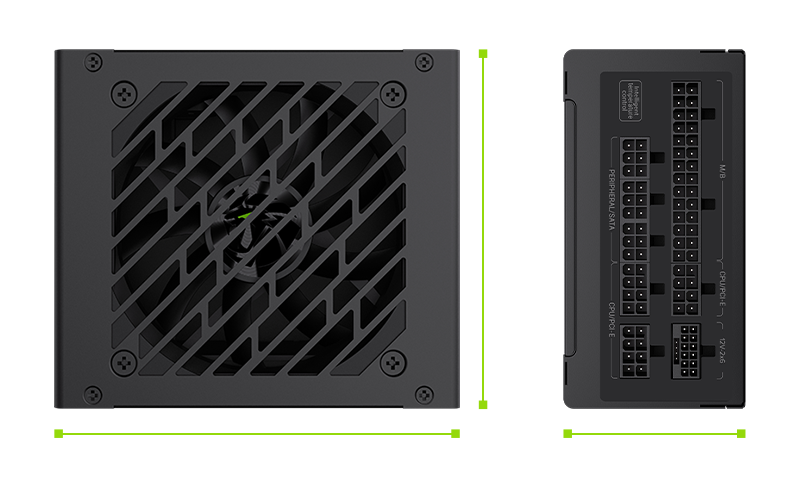

Dimensions: | 125mm x 63.5mm x 110mm (W x H x D) |
Input Voltage: | 110-240 VAC |
Input Current: | 10-5A |
Input Frequency Range: | 50-60Hz |
PFC: | Active PFC (>.99) |
Power Good Signal: | 100-150 ms |
Hold Up Time: | >10ms |

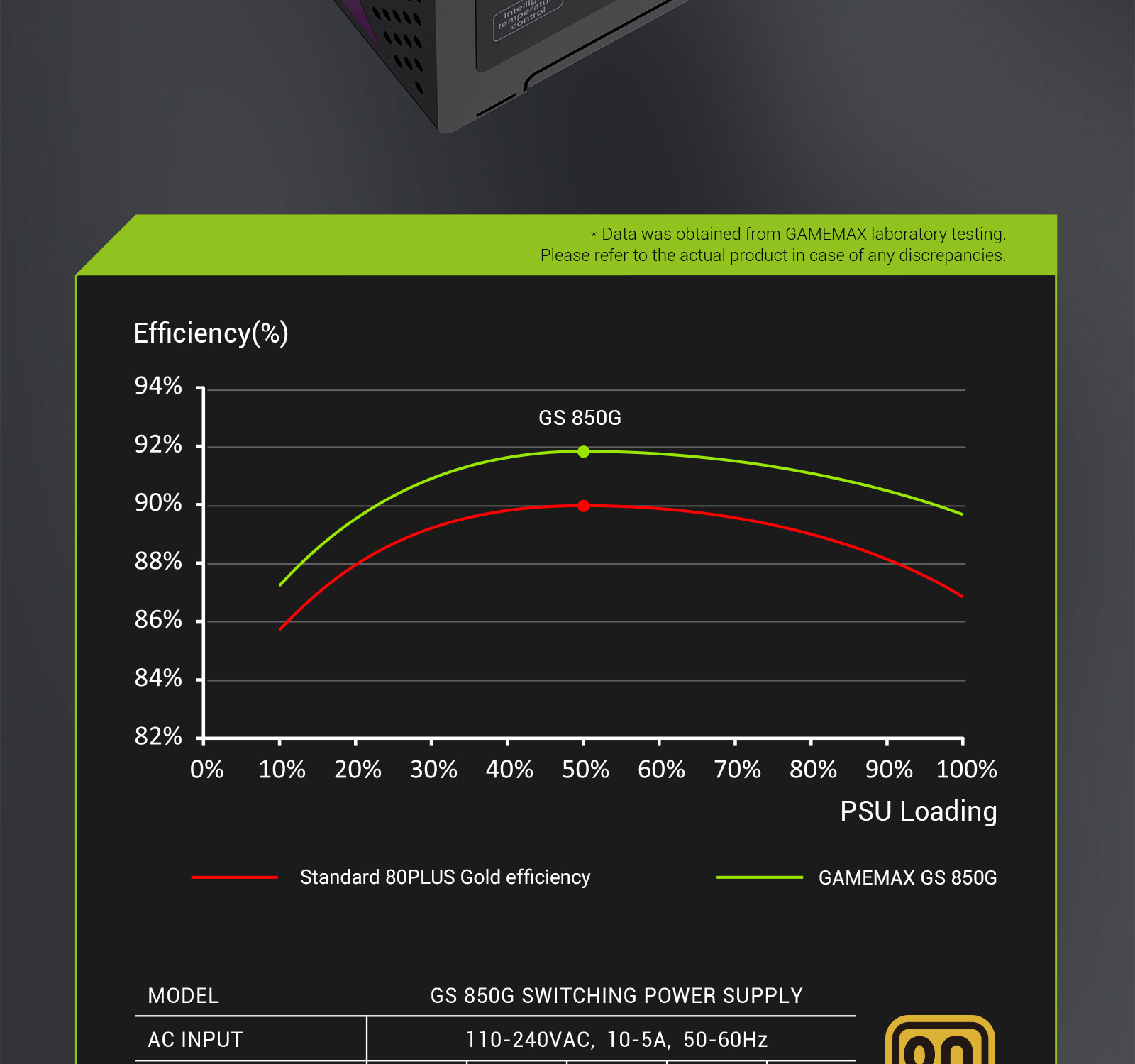

Efficiency: | > 87% (92% max) |
MTBF: | > 100,000 Hours |
Protection: | OVP / UVP/ SIP / OCP/ OLP/ OPP/ SCP |
Power: | 850W |
Operation Temperature: | 0-40C |
Safety: | CE / FCC / CB/ROHS/TUV/cTUVus |
Cooling: | 90mm Ultra Silent Fan |
Noise: | <25dBa |

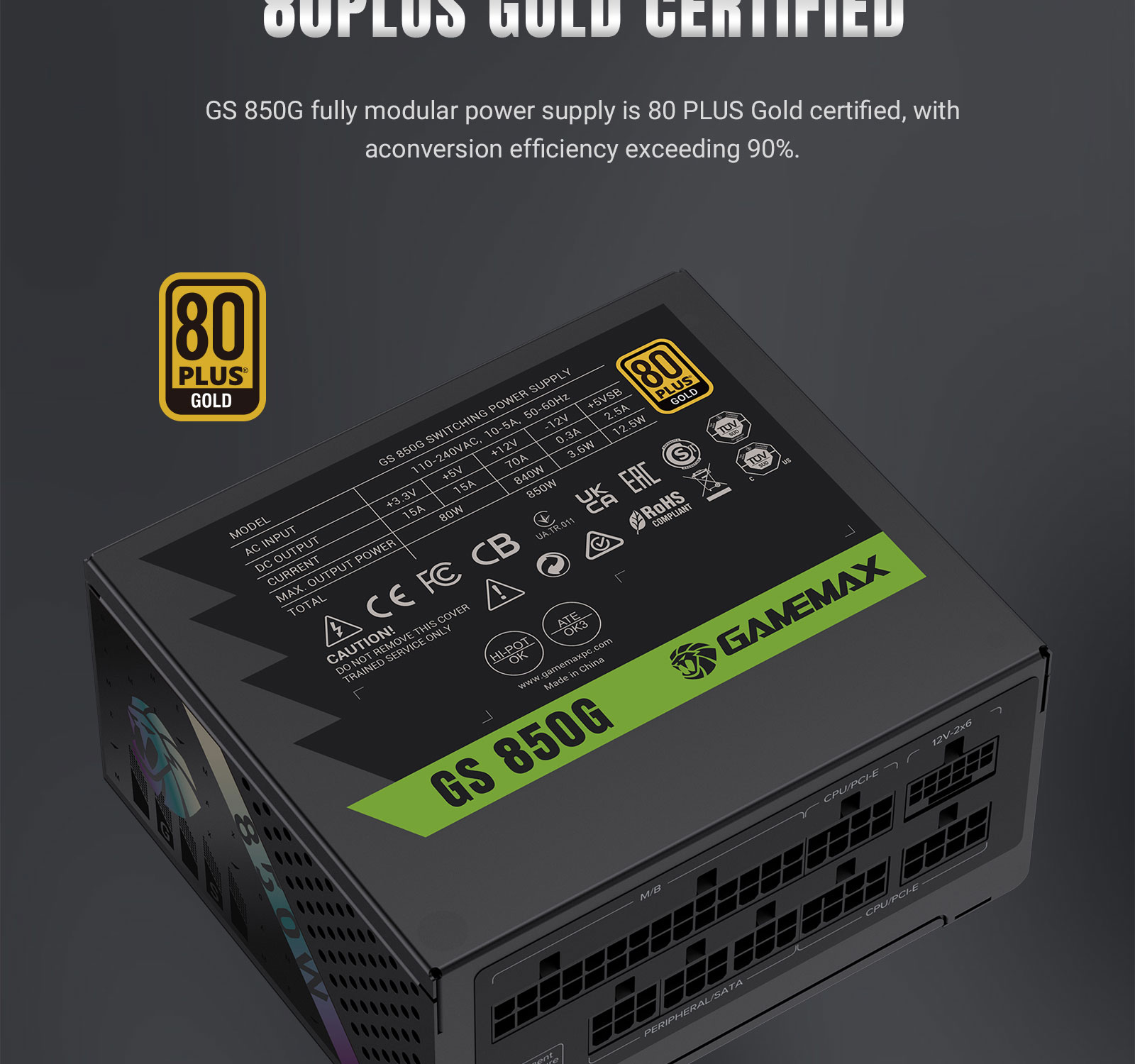

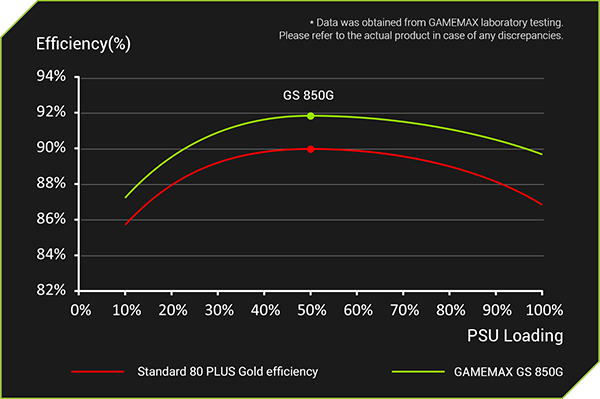

80 Plus Certified: | Yes - 80 Plus Gold |
