When building a PC, one of the most overlooked but critical components is the airflow within your PC case. Proper airflow ensures that your system runs efficiently, keeps temperatures in check, and extends the lifespan of your components. Poor airflow, on the other hand, can result in overheating, reduced performance, and potential hardware failure.
This guide will explore how to improve PC case airflow, detailing the factors that influence airflow, including fan placement, cable management, case design, and cooling systems. By the end of this article, you’ll have the knowledge needed to optimize the airflow in your PC case for peak performance.
Before diving into specific methods to improve airflow, let’s first understand why airflow matters. The primary purpose of airflow in a PC case is to keep the internal temperature of your system under control. Proper airflow ensures that cool air is drawn in to replace the warm air expelled by the fans, effectively dissipating the heat generated by high-performance components like the CPU, GPU, and power supply.
Components like CPUs and GPUs generate significant amounts of heat when running demanding applications or games. Without adequate airflow, the temperature inside the case can rise dramatically, leading to thermal throttling (where components slow down to prevent damage), and in extreme cases, component failure.
High temperatures accelerate wear and tear on internal components, reducing their overall lifespan. Maintaining optimal airflow can prevent this, helping your system last longer and perform more reliably over time.
Overheating can lead to thermal throttling, where your CPU or GPU automatically reduces its speed to avoid overheating. With improved airflow, these components can operate at their peak performance without being held back by thermal constraints.
To improve airflow in your case, it's essential to understand the factors that affect airflow. These include the layout of the case, the placement of fans, cable management, and the overall design of the case.

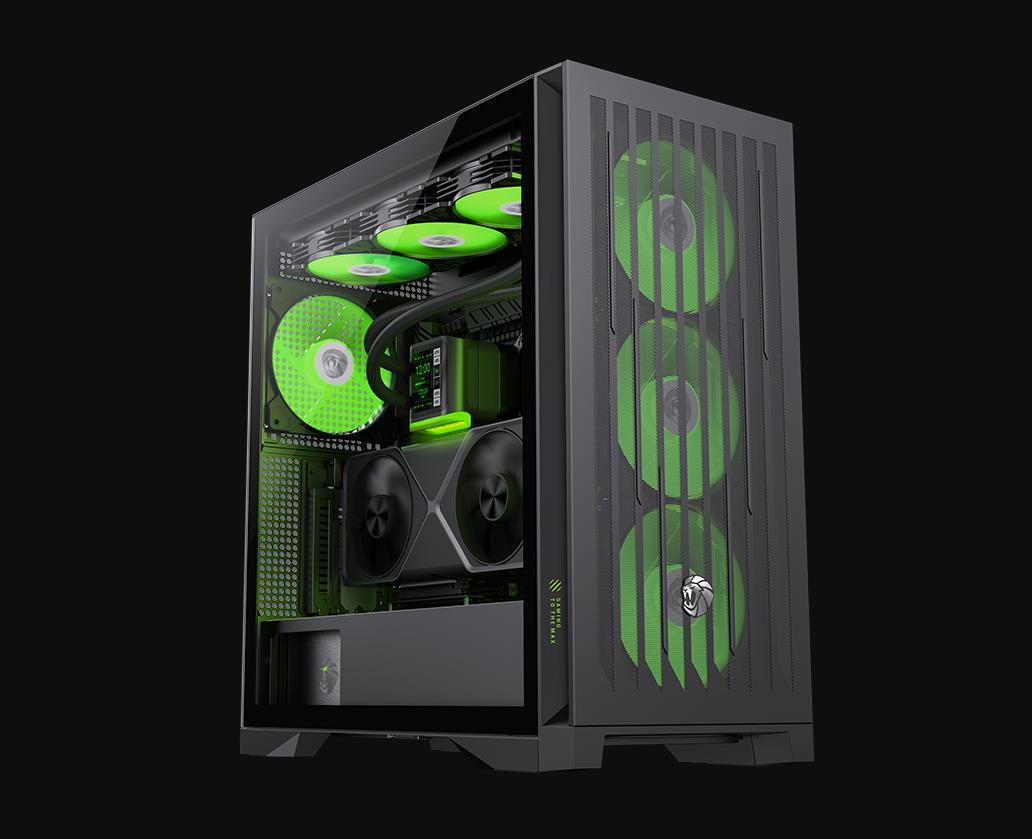

The design of your case plays a significant role in how air moves through it. Open-frame designs or mesh front panels offer better airflow than cases with solid metal or tempered glass fronts, which can obstruct air movement. A well-ventilated case will have plenty of holes or mesh panels that allow air to flow in and out.
Positive Pressure: A case that has more intake fans than exhaust fans creates positive pressure, forcing air to move out through the available exhaust openings. This can reduce dust buildup but may affect cooling efficiency if not properly balanced.
Negative Pressure: A case with more exhaust fans than intake fans creates negative pressure, which can increase airflow but might allow dust to enter the case through unfiltered openings.
The placement and configuration of your fans are crucial to achieving balanced airflow. There are two primary fan types to consider: intake fans and exhaust fans.
Intake Fans: These pull cool air into the case from outside. The ideal placement for intake fans is at the front and bottom of the case.
Exhaust Fans: These push warm air out of the case. Exhaust fans are usually positioned at the top and rear of the case, as hot air naturally rises.
The balance between intake and exhaust fans plays a critical role in airflow. Ideally, you want a balanced fan setup where the intake fans pull in enough cool air to replace the hot air being expelled by the exhaust fans. A 1:1 ratio of intake to exhaust fans is a good starting point. However, the specific balance may vary depending on your case design and cooling needs.
The speed at which your fans operate (measured in RPM) can also affect airflow. High-RPM fans move more air but can be noisier, while low-RPM fans are quieter but move less air. Choosing the right fan speed for your setup is essential for maintaining an optimal balance between noise and cooling performance.
Not all fans are created equal, and selecting the right ones for your case can significantly improve airflow. When choosing fans, you should consider the airflow rating (CFM) and static pressure.
High Airflow Fans: These are designed to move large volumes of air through open areas in the case. They're ideal for areas like the front or bottom of the case where air needs to flow freely.
High Static Pressure Fans: These fans are designed to push air through obstructed areas, such as radiators or filters. If you have a radiator or a case with restrictive airflow, high static pressure fans are your best choice.
One often-overlooked factor that can reduce airflow is poor cable management. Loose cables can obstruct the flow of air inside the case, creating hot spots and reducing the overall cooling efficiency. By organizing cables behind the motherboard tray or using cable management channels, you can allow air to flow more freely.
Using cable ties or velcro straps to bundle cables together and secure them out of airflow pathways is a simple yet effective way to improve airflow in your case.
In some cases, using shorter cables or cable extensions can help reduce clutter and improve airflow.
While increasing airflow is important, you also want to make sure your case remains clean. Dust can accumulate inside your case, blocking airflow and causing components to overheat. Installing dust filters on intake and exhaust fans helps prevent dust buildup and keeps your system running smoothly.
Now that we understand the factors affecting airflow, let's look at some practical steps you can take to improve the airflow in your PC case.
If you’re using stock fans that came with your case, consider upgrading to high-quality aftermarket fans. Look for fans with high airflow ratings (CFM) and low noise levels. Popular fan brands like Noctua, Corsair, and be quiet! offer excellent options for both intake and exhaust.
If dust buildup is not a significant concern for you, setting up a positive pressure environment with more intake fans than exhaust fans can help improve airflow. However, be sure to use filters to prevent dust from entering.

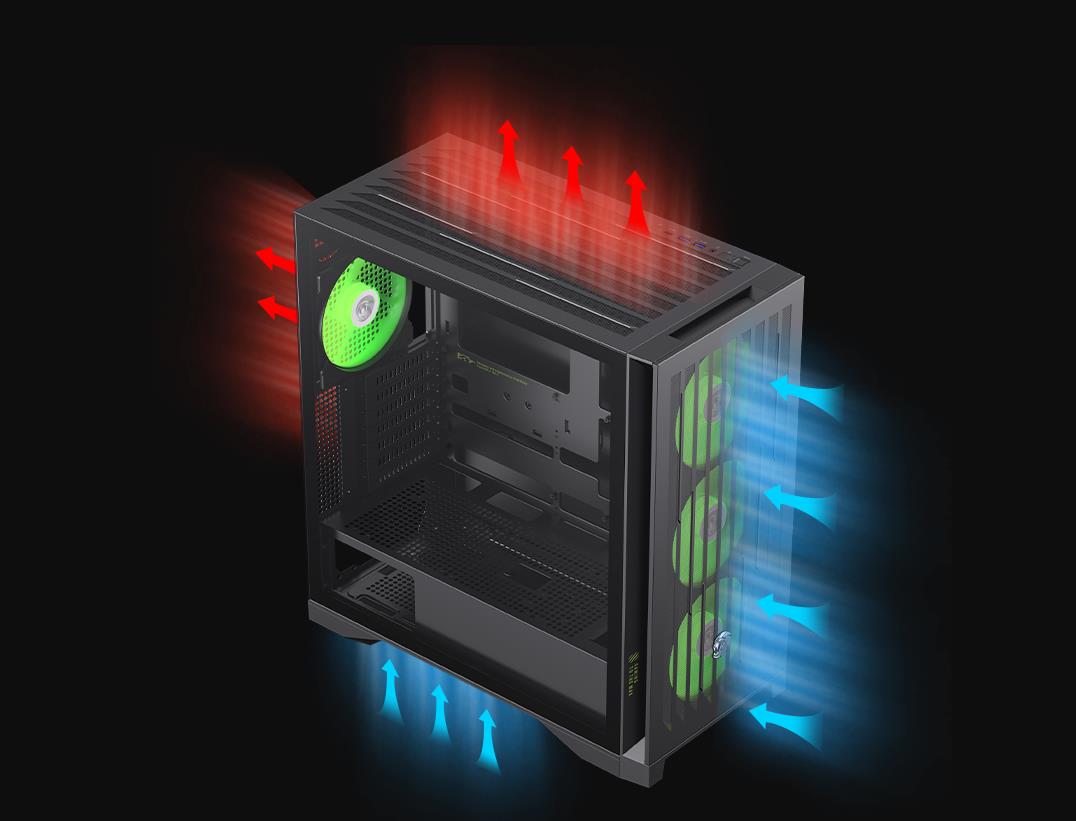

Experiment with fan placements to see what works best for your system. For most cases, placing fans at the front for intake, top for exhaust, and rear for exhaust provides a balanced airflow system.
Regularly clean your fans, filters, and interior to prevent dust buildup. Use a compressed air canister to blow out dust from hard-to-reach places. Clean your filters frequently to ensure they remain effective.
If your current case is small and cramped, it might be time to upgrade to a larger case. A larger case allows for better airflow, more fan mounting options, and greater space for components.
For users seeking extreme performance, consider integrating additional cooling solutions such as:
A custom water cooling loop can improve cooling efficiency by circulating coolant through a dedicated radiator and water blocks, keeping your components at an optimal temperature.
Cases specifically designed for airflow, such as those with full mesh fronts or those optimized for radiator mounting, can provide better overall airflow than standard cases.
Improving the airflow in your PC case is essential for maximizing performance, preventing overheating, and extending the lifespan of your components. By optimizing fan placement, managing cables, choosing high-quality fans, and maintaining your system, you can achieve efficient airflow that will keep your system cool and running smoothly. Whether you're building a gaming rig or a high-performance workstation, airflow should always be a priority.
By following the tips in this article, you can optimize your case for optimal cooling, ensuring that your system remains stable under load and performs at its best.
