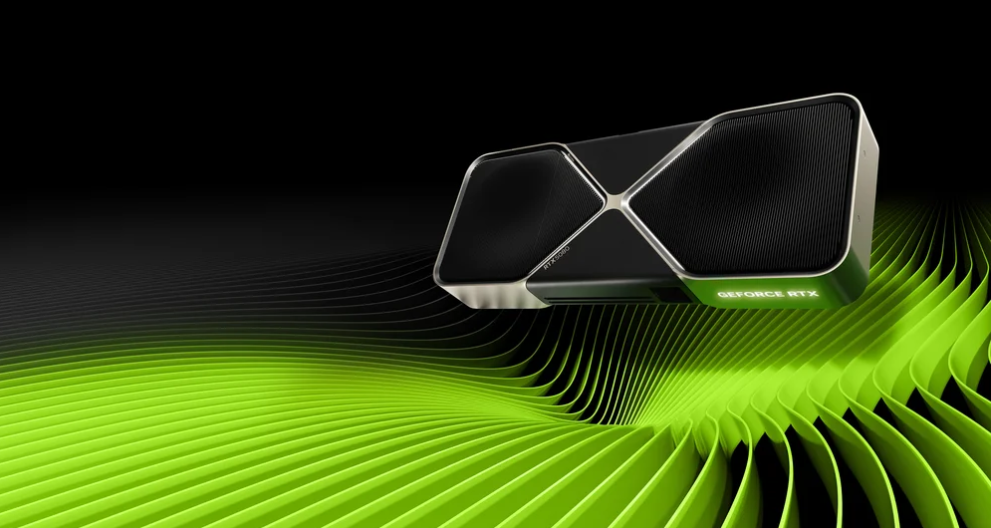

As the sub-flagship GPU based on NVIDIA’s Blackwell architecture, the RTX 5080 presents stringent power demands with a 360W TDP and 600W peak power consumption. Key requirements for compatible PSUs include:
Instantaneous Load Response: Capability to handle sudden power surges during intensive tasks like ray tracing or 4K high-resolution rendering.
Interface Compatibility: Native support for the 12V-2×6 16Pin (PCIe 5.1) connector to avoid voltage drop risks from adapters.
Long-Term Stability: 80 Plus Gold or higher certification for low heat, low noise, and high energy efficiency.
GAMEMAX addresses the RTX 5080’s needs through breakthroughs in architecture, components, and cooling:
Dynamic Power Distribution: Models like the GX PRO 1050G use an LLC Resonance + DC-DC Conversion scheme, enabling single-channel +12V output to support 3x the GPU’s peak power (1800W instantaneous capacity). Voltage fluctuation is controlled within <1% during high GPU loads.
Upgraded Interface Standards: Premium models (e.g., RGB PRO 1300P, GX PRO 1250G) feature native 12V-2×6 16Pin connectors, eliminating safety hazards from 12VHPWR adapters.
Capacitor Design: Flagship models (RGB PRO 1300P) utilize full Japanese 105℃ temperature-resistant capacitors with full-bridge LLC circuits, ensuring 100,000 hours of fault-free operation. Mid-range models (e.g., GX 850GF) use high-quality Taiwanese capacitors for balanced performance and cost.
Cooling Design: The 13.5cm FDB (Fluid Dynamic Bearing) fan in GX PRO series supports smart start-stop technology, achieving <20dB noise at low loads. High-load thermal management keeps internal temperatures below 45℃ (ambient 25℃).
Energy Certification: Full coverage of 80 Plus Gold/Platinum certifications, with typical load efficiencies exceeding 90% (Gold) or 92% (Platinum) to reduce long-term energy costs.
Form Factor Options: Both ATX standard (160×150×86mm) and SFX compact (125×100×63.5mm, e.g., GS 850G) designs cater to full-tower cases and ITX mini PCs.
Three core models tailored to performance, size, and budget:
| Model | RGB PRO 1300P (Platinum) | GX PRO 1050G (Gold) | GS 850G (Gold) |
|---|---|---|---|
| Power Rating | 1300W | 1050W | 850W |
| PCIe 5.1 Ports | 3×16Pin | 2×16Pin | 1×16Pin |
| Key Technology | Full-Bridge LLC + Japanese Caps | LLC + DC-DC High-Efficiency | GaN Components + SFX Compact |
| Fan Solution | 14cm ARGB Smart-Temp Fan | 13.5cm FDB Silent Fan | 9cm Low-Noise Axial Fan |
| Use Case | Multi-GPU/Extreme Overclocking | Mid-High-End Water/Air Cooling | ITX Small Cases/HTPC |
| Unique Advantage | Redundant 16Pin Design | +12V Ripple <30mV | 30% Smaller Size for Mini Builds |
| Brand | Model | Certification | +12V Output (A) | Native 16Pin | Dimensions (mm) | Typical Efficiency |
|---|---|---|---|---|---|---|
| GAMEMAX | GX PRO 850G | 80 Plus Gold | 70.8 | Yes | 160×150×86 | 92% |
| Super Flower | LEADEX G850 | 80 Plus Gold | 70 | No | 165×150×86 | 90% |
| Corsair | RM850x | 80 Plus Gold | 70 | No | 150×140×86 | 90% |
GAMEMAX Key Advantages:
Native Interface: The only brand with native 16Pin connectors in all premium models, eliminating adapter risks.
Efficiency-Size Balance: GX PRO 850G leads in efficiency and compactness for its power class.
Cost-Effectiveness: 10%-20% more affordable than competitors, with 5-year (or 10-year for select models) warranties.
GX PRO 1050G: 1-hour dual stress test showed +12V voltage fluctuation of 0.7% (industry excellence <1.5%), with GPU connector temperature at 58℃ (better than the 65℃ average).
GS 850G: Operated in an ITX case with 28dB noise (1m distance) and 42℃ surface temperature, ideal for compact cooling environments.
80 Plus Lab Data: RGB PRO 1300P achieved 94.1% efficiency at 50% load, exceeding Platinum certification standards.
EMI Compliance: All models pass CE and FCC certifications, minimizing electromagnetic interference with motherboards/peripherals.
Power Calculation: Opt for 850W+ (1050W+ for overclocked CPUs/multiple storage drives).
Interface Priority: Prioritize models with “ATX 3.1 + PCIe 5.1” dual certification (e.g., names containing “PRO” or “RGB PRO”).
Case Compatibility:
Full-Tower/Mid-Tower: Choose ATX standard models (GX PRO series) for cable management and cooling.
ITX/HTPC: Select SFX models (GS 850G), ensuring case compatibility (some mini cases support only SFX-L).
From native PCIe 5.1 support to industrial-grade power architecture, GAMEMAX PSUs address the RTX 5080’s high-frequency loads, transient power demands, and compact build needs across all scenarios. Whether for extreme overclocking (RGB PRO 1300P), mainstream high-end systems (GX PRO 1050G), or ITX enthusiasts (GS 850G), precise model selection ensures an optimal balance of performance, stability, and value. In the RTX 5080, GAMEMAX stands out as a reliable choice through technical innovation and user-centric design.
850W 80 Plus Gold ATX3.1 PCIe5.1 power supply with PCIe5.1 12V-2*6 connector for direct RTX™ 40 Series GPU connection, minimizing current loss.
• ATX3.1 & PCIe5.1 ready with 12V-2*6 connector
• LLC MPS1213 Chipset optimizes LLC resonant circuit for high efficiency at all loads
• UP3861 Chip ensures stable 3.3V and 5V outputs with reduced ripple noise
• MPS6924 Chip boosts efficiency via optimized synchronous rectification
• 105℃ Japanese bulk capacitors ensure long life and stable output
• Quiet, temperature-controlled axial fan for efficient cooling
• Seven protection levels: OTP, OCP, SCP, OVP, UVP, OPP, SIP
• Black flat copper output cables for efficient power delivery
• SMT-produced components for fast heat dissipation and stability
