When building a high-performance PC system, choosing the right power supply (PSU) for the AMD Radeon RX 7800 XT graphics card is crucial to ensure stable operation and unleash full performance potential. This article deeply analyzes the power consumption requirements of the 7800XT, explores key factors to consider when selecting a PSU, and combines high-quality products from GAMEMAX to provide you with a comprehensive purchasing guide.

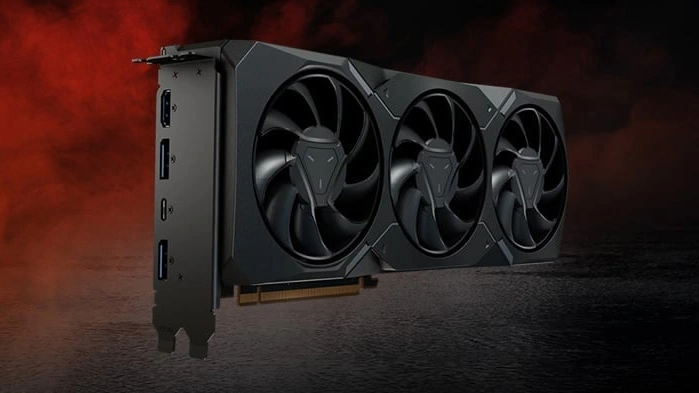

I. Power Consumption Characteristics of 7800XT Graphics Card
As a high-performance graphics card, the AMD Radeon RX 7800 XT exhibits the following typical power consumption characteristics:
Base Power Consumption: The officially 标称 (specified) TDP (Thermal Design Power) is approximately 245W, representing the power consumption level under standard operating conditions.
Peak Power Consumption: When running high-load games or overclocking, the instantaneous peak power consumption of the graphics card may reach 280W or even higher.
Overall System Requirements: Besides the graphics card, power consumption of the CPU, memory, storage devices, and other peripheral components must also be considered. For a mainstream configuration, a mid-to-high-end CPU (such as Ryzen 7 or Intel i7) consumes about 120-150W, and other components total around 80-100W.
Comprehensively, it is recommended to choose a PSU with a rated power between 650W and 750W for a system built with the 7800XT, ensuring sufficient power headroom to handle peak loads and future upgrade needs.
II. Key Consideration Factors for Selecting a PSU
(一) Power Calculation and Headroom Planning
Accurately calculating system power consumption is the first step in selecting a PSU. It is recommended to use a PSU calculator tool, inputting detailed specifications of all components to obtain precise power requirements. For a 7800XT system, a 650W PSU is usually sufficient for standard configurations, but a 750W or higher PSU is recommended in the following cases:
Planning to overclock the CPU or graphics card
Configuring multiple storage devices (such as multiple SSDs/HDDs)
Using a high-power CPU (such as Ryzen 9 or Intel i9)
Possible future addition of a second graphics card or other high-power components
(二) 80 Plus Certification and Efficiency
The 80 Plus certification is an important standard for measuring PSU conversion efficiency. A higher-efficiency PSU not only reduces power loss and heat generation but also saves electricity costs. For a 7800XT system, it is recommended to choose at least an 80 Plus Gold certified PSU, which has efficiencies of not less than 87%, 90%, and 87% at 20%, 50%, and 100% loads, respectively. If budget allows, 80 Plus Platinum or Titanium certified PSUs offer higher efficiency and lower long-term usage costs.
(三) Modular Design
Modular PSUs allow users to connect only the required cables, reducing cable clutter inside the case, improving heat dissipation, and facilitating installation and cable management. According to the degree of modularity, they can be divided into:
Fully Modular: All cables are detachable, offering the highest flexibility, suitable for users pursuing perfect cable management.
Semi-Modular: Motherboard and CPU power cables are fixed, while other cables are detachable.
Non-Modular: All cables are fixed, with lower cost but greater difficulty in cable management.
For the high-end configuration of the 7800XT, fully modular or semi-modular PSUs are better choices, keeping the interior of the case tidy and improving heat dissipation efficiency.
(四) Stability and Protection Functions
High-quality PSUs should have perfect protection mechanisms to deal with various abnormal situations and protect hardware safety:
Over Power Protection (OPP): Automatically cuts off power when the load exceeds the PSU's rated power to prevent damage.
Over Voltage Protection (OVP): Prevents output voltage from being too high, damaging sensitive electronic components.
Over Current Protection (OCP): Timely cuts off power when the output current of a certain channel exceeds the rated value.
Short Circuit Protection (SCP): Quickly cuts off power in case of a short circuit to avoid serious failures.
Under Voltage Protection (UVP): Protects the system from unstable power supply when the input voltage is too low.
In addition, the quality of PSU capacitors is also crucial. High-quality Japanese capacitors (such as Nichicon, Teapo, etc.) have longer service life and better stability, ensuring the PSU maintains reliable performance during long-term use.
(五) Noise and Heat Dissipation
The 散热 (heat dissipation) fan design of the PSU directly affects noise level and service life. Choosing a PSU with a large-sized fan (such as 120mm or 140mm) can usually provide sufficient air volume at a lower speed, reducing noise. Some high-end PSUs also feature intelligent fan start/stop functions, stopping the fan under low loads to achieve zero noise operation.
III. Recommendations for gamemaxpc Power Supply Products
Combining the requirements of the 7800XT graphics card, the following several PSUs are selected from GAMEMAX and their suitability is analyzed:
(一) Gamemax Snowstorm 750W 80 Plus Gold
Product Features:
Power and Efficiency: 750W rated power, 80 Plus Gold certification, with an efficiency of up to 90%, fully meeting the power requirements of the 7800XT system, and providing stable power even under overclocking conditions.
Modular Design: Fully modular design, equipped with flat black cables, facilitating cable management and creating a tidy interior environment for the case.
Heat Dissipation and Noise: 140mm hydraulic bearing fan, supporting intelligent temperature control, with noise below 20dB under low loads, and maintaining quiet operation under high loads.
Protection Functions: Equipped with OPP, OVP, OCP, SCP, UVP full protection mechanisms, using Japanese 105℃ high-temperature resistant capacitors to ensure long-term stable operation.
Interface Configuration: Provides 2 x 8pin PCIe interfaces to meet the power supply needs of the 7800XT, while equipped with sufficient SATA and Molex interfaces to support multiple storage devices.
Suitable Scenarios:
Suitable for users pursuing high performance, high stability, and focusing on beautiful cable management, perfectly 胜任 (capable of) both gaming hosts and professional graphics workstations.
(二) Gamemax Thunder 650W 80 Plus Bronze
Product Features:
Power and Efficiency: 650W rated power, 80 Plus Bronze certification, with an efficiency of about 85%, suitable for users with limited budgets who still need to meet the basic requirements of the 7800XT.
Modular Design: Semi-modular design, with motherboard and CPU power cables fixed, and other cables detachable, striking a balance between cost and flexibility.
Heat Dissipation and Noise: 120mm fan, supporting temperature-controlled speed regulation, with operating noise controlled within a reasonable range.
Protection Functions: Equipped with basic OPP, OVP, OCP, SCP protection, using high-quality capacitors to ensure stability in daily use.
Interface Configuration: Provides 2 x 8pin PCIe interfaces to meet the power supply needs of the 7800XT, while equipped with multiple SATA and Molex interfaces.
Suitable Scenarios:
Suitable for budget-conscious gamers, providing a cost-effective PSU solution while ensuring stable system operation.

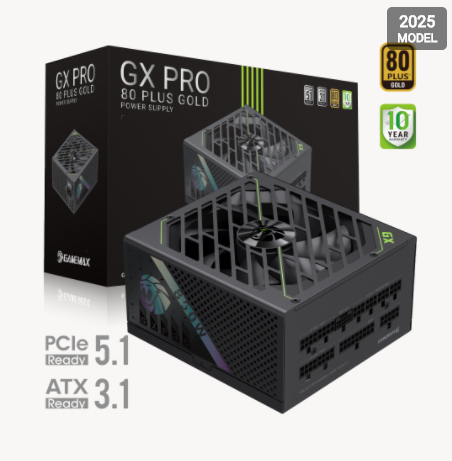

(三) Gamemax GX PRO 850W 80 Plus Gold
Product Features:
Power and Efficiency: 850W rated power, 80 Plus Gold certification, with an efficiency of up to 90% or more, an ideal choice for users pursuing extreme efficiency and future upgrade space.
Modular Design: Fully modular design, equipped with high-quality braided cables, supporting the most flexible cable management methods.
Heat Dissipation and Noise: 135mm liquid metal bearing fan, intelligent start/stop technology, completely silent under low loads, and maintaining extremely low noise under high loads.
Protection Functions: Full series of protection mechanisms, using top-grade Japanese capacitors, with a service life of over 100,000 hours, suitable for 24/7 all-weather operation servers or high-end workstations.
Interface Configuration: Provides 4 x 8pin PCIe interfaces, not only meeting the needs of the 7800XT but also reserving space for future addition of a second graphics card or other high-power devices.
Suitable Scenarios:
Suitable for high-end users, overclocking enthusiasts, or users needing to build multi-graphics card systems, providing unparalleled stability and efficiency.
IV. Purchasing Summary and Recommendations
When selecting a PSU for the 7800XT graphics card, the following points should be comprehensively considered:
Power Selection: A 650W 80 Plus Gold PSU is recommended for standard configurations, and 750W or higher for overclocking or high-end configurations.
Certification Level: At least 80 Plus Gold, and Platinum or Titanium certifications can be considered for pursuing efficiency and long-term use costs.
Modular Requirements: Fully modular is recommended for high-end configurations, and semi-modular can be chosen for limited budgets.
Brand and Quality: Choose products from well-known brands to ensure PSU stability and after-sales service.
From gamemaxpc's product line, the Snowstorm 750W 80 Plus Gold is the best choice to balance performance, efficiency, and price, not only meeting all the needs of the 7800XT but also featuring excellent stability and cable management convenience. If budget permits, the Titan 850W 80 Plus Platinum can provide higher efficiency and future upgrade space, being the perfect choice for high-end users.
No matter which PSU is chosen, ensure it has sufficient PCIe power supply interfaces (at least 2 x 8pin) and leaves a certain power headroom to guarantee the system can operate stably under various load conditions and fully unleash the powerful performance of the 7800XT graphics card.
GX PRO 850G 80 Plus Gold Modular Power Supply: ATX3.1 Ready, Silent Cooling, & Premium Durability
• 80 Plus Gold Efficiency & Quiet Operation: Achieves 90% efficiency under typical loads with APFC+LLC+DC-DC design, minimizing power waste and noise.
• Premium Durability & Reliability: Built with Japanese 105°C capacitors and solid capacitors for long-term stability and performance.
• ATX3.1 & PCIe5.1 Ready: Features a native 12V-2x6 connector for seamless RTX 40/50 GPU compatibility and efficient power delivery.
• Advanced Thermal Management: 13.5cm FDB fan with intelligent temperature control ensures quiet cooling and optimal heat dissipation.
• Modular Design & Robust Protection: Fully modular layout with dual-stage EMI filtering and NTC thermistor safeguards against surges, while gold-plated cables ensure durable, high-conductivity connections.
