In the realm of high-end PC building, the power supply acts as the "heart" of hardware operation, with its wattage, efficiency, and stability directly impacting system performance. 850W modular gold PSUs stand out for their triple advantages of "high-power output + low-energy conversion + flexible cabling," making them ideal for gaming rigs, professional workstations, and multi-hardware configurations. This article centers on GAMEMAX's product line, dissecting the technical highlights and application scenarios of 850W modular gold PSUs to provide professional purchasing insights.
80+ Gold Certification: Balancing Efficiency and Low Heat
The 80+ Gold certification requires power supplies to achieve conversion efficiencies of 87%, 90%, and 87% under 20%, 50%, and 100% loads, respectively. GAMEMAX's 850W gold PSUs (such as RGB PRO 850G and GX PRO 850G) reach over 90% efficiency under typical loads, saving approximately 150 kWh annually compared to bronze PSUs while reducing heat to extend hardware lifespan. Their LLC resonant topology + DC-DC conversion circuit precisely controls voltage fluctuations and reduces ripple noise, ensuring stable power for core components like CPUs and GPUs.
Fully Modular Design: Cabling Freedom and Chassis Cooling Optimization
Modular design allows users to connect only necessary cables (e.g., 24Pin motherboard, 8Pin CPU, PCIe GPU cables), eliminating redundant wiring. Models like GAMEMAX GX 850GF and RGB 850G use flat cables to reduce airflow resistance in the chassis, improving cooling efficiency while enabling neat cabling—perfect for side-panel transparent cases and customized builds.
High-Power Headroom: Future-Proof for Hardware Upgrades
850W power easily supports high-end configurations: Intel i9/Ryzen 9 processors paired with RTX 4090/RTX 3090 Ti GPUs, or even multi-GPU setups (SLI/CFX) and professional multi-drive arrays. Some GAMEMAX models (e.g., RGB-Smart 850 PRO BK) natively support ATX3.1 and PCIe5.1 standards, featuring 16Pin 12V-2×6 interfaces for direct next-gen GPU power, avoiding adapter losses.
RGB PRO 850G: Fusion of Lighting and Performance
Technical Highlights: ATX3.1 compliance, 140mm ARGB fan with motherboard sync support, Japanese main capacitors, and adaptive fan control that stops the fan under low loads for "zero noise" operation.
Ideal for: Gaming rigs, side-transparent builds, and users seeking lighting synchronization with silent performance.
GX PRO 850G: Industrial-Grade Durability Design
Core Specs: APFC+LLC+DC-DC topology, 10-year warranty, 16AWG full-modular cables for high-current transmission, suitable for 24/7 workstations or servers.
Exclusive Tech: MPS1213 chip optimizes LLC resonant circuit, reducing switching losses and boosting efficiency by 3-5%.
GS 850G: SFX Form Factor for Compact High Performance
Form Factor Advantage: SFX small size (125×100×63.5mm), compatible with ITX cases, Japanese capacitors, and smart 温控 fan, ideal for mini-PCs and HTPCs.
RGB-Smart 850 PRO BK: Benchmark for Future Compatibility
Cutting-Edge Support: ATX3.0/3.1 dual-standard compatibility, native PCIe5.1 interface for RTX 40-series GPUs, full-modular design with 12V single-rail high-current output (up to 70A) for extreme overclocking.
Topology: Why LLC+DC-DC Is Standard for Gold PSUs
LLC resonant topology reduces MOSFET losses via Zero Voltage Switching (ZVS), while the DC-DC conversion circuit precisely steps down 12V to 3.3V/5V. Compared to traditional single-rail magnetic amplification, this design lowers ripple (≤50mV) and improves voltage stability by 40%. GAMEMAX GX 850GF employs this scheme to ensure power purity under multi-hardware loads.
Cooling and Silence: Balance of FDB Fans and Smart Thermal Control
Most models feature FDB (Fluid Dynamic Bearing) fans with over 100,000 hours lifespan, paired with temperature sensors that stop the fan below 40℃ and full-speed above 60℃. For example, the 140mm ARGB fan in RGB 850G emits <28dB at full load, approaching library-level quiet.
Capacitors and Protection: The Last Line of Hardware Safety
GAMEMAX premium models (e.g., GS 850G) use 105℃ Japanese electrolytic capacitors with lower ESR (Equivalent Series Resistance) for superior ripple resistance. They integrate six protection mechanisms: OCP (Over-Current Protection), OVP (Over-Voltage Protection), SCP (Short-Circuit Protection), etc., safeguarding hardware from power anomalies.
Power Calculation: Maintain 20% Redundancy
Example: RTX 4090 (450W) + Ryzen 9 7950X (170W) + motherboard/hard drives/fans (150W) totals ~770W. Choosing an 850W PSU leaves 10-20% headroom to avoid overload.
Interface Requirements: PCIe5.1 and Modular Cable Quantity
For RTX 40-series or next-gen GPU upgrades, ensure the PSU has a native 16Pin PCIe5.1 interface (e.g., GX-850 PRO BK). Multi-drive users should check SATA power port counts (typically 4-6 included).
Scenario Adaptation: Differentiated Choices from Gaming to Professional Use
Gamers: Prioritize RGB PRO 850G (lighting + silence) or RGB-Smart 850 PRO BK (PCIe5.1 support);
Workstation Users: GX PRO 850G (10-year warranty + industrial stability);
Mini-PC Builders: GS 850G (SFX form factor + high efficiency).
As hardware power consumption rises, 850W modular gold PSUs are not just staples for current high-end builds but also "power reserves" for 3-5 years of future upgrades. Through ATX3.1/PCIe5.1 compatibility, LLC+DC-DC efficient circuitry, and full-modular flexibility, GAMEMAX transforms power supplies from "energy converters" into "hardware ecosystem hubs," offering cost-effective and future-proof solutions for users prioritizing performance and stability.

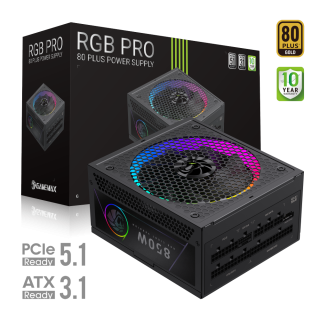

RGB PRO 850G 850W 80+ Gold ATX3.1 Power Supply with Adaptive Fan & ARGB SYNC
• 80 Plus Gold Efficiency: Delivers 90%+ efficiency under typical loads, cutting power use and noise for dependable performance.
• ATX3.1 & PCIe5.1 Support: Native 12V-2x6 connector ensures seamless power to RTX 40/50 GPUs, optimizing delivery and reducing loss.
• Adaptive Fan Control: 14CM fan auto-adjusts speed based on load, balancing energy efficiency with quiet operation.
• High-Quality Components: Japanese 105°C and solid capacitors guarantee durability, stability, and reliability for intensive tasks.
• Customizable RGB Lighting: 25 lighting modes with memory and ARGB SYNC support, enabling personalized and synchronized visual effects.

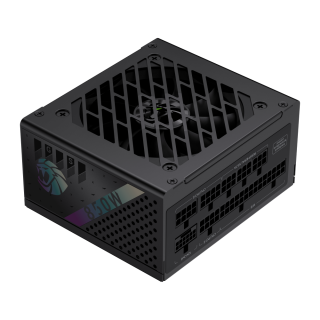

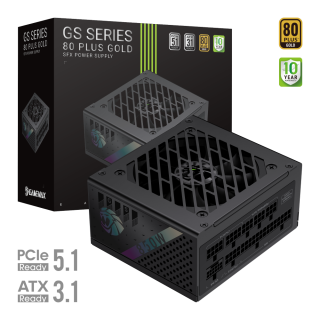

GS 850G 80 Plus Gold Certified SFX Power Supply with Intelligent Cooling, Japanese Capacitors, and Comprehensive Protection
• 80 Plus Gold Certified Efficiency: Enhances power efficiency and stability, reducing the risk of system crashes.
• High-Quality Japanese Capacitors: Ensures long-term reliability and stability with 105°C electrolytic and solid-state capacitors.
• Intelligent Fan Control: 9.2cm hydraulic bearing fan with PWM automatic control starts and stops based on power consumption (above 20% and below), optimizing cooling and noise.
• Advanced Wireless Output Design: Gold-plated pins and high-density copper posts enable efficient, reliable power output and improved heat dissipation.
• Comprehensive Circuit Protection: Provides multi-layered protection (OPP, OVP, UVP, OCP, SCP, OTP) to safeguard your PC and components from damage.

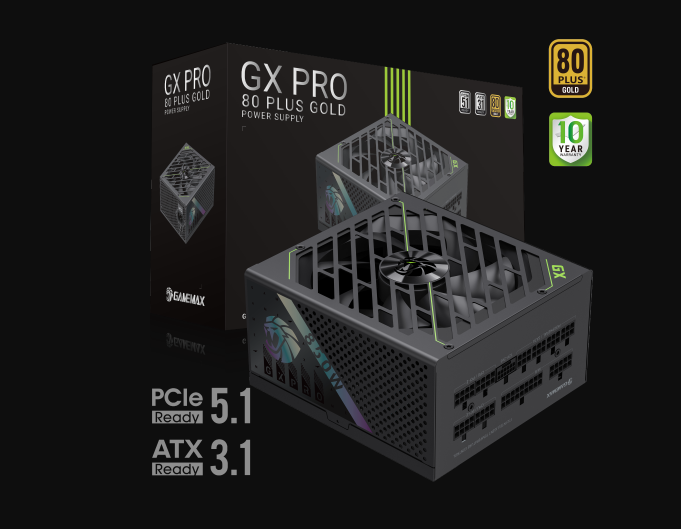

GX PRO 850G 80 Plus Gold Modular Power Supply: ATX3.1 Ready, Silent Cooling, & Premium Durability
• 80 Plus Gold Efficiency & Quiet Operation: Achieves 90% efficiency under typical loads with APFC+LLC+DC-DC design, minimizing power waste and noise.
• Premium Durability & Reliability: Built with Japanese 105°C capacitors and solid capacitors for long-term stability and performance.
• ATX3.1 & PCIe5.1 Ready: Features a native 12V-2x6 connector for seamless RTX 40/50 GPU compatibility and efficient power delivery.
• Advanced Thermal Management: 13.5cm FDB fan with intelligent temperature control ensures quiet cooling and optimal heat dissipation.
• Modular Design & Robust Protection: Fully modular layout with dual-stage EMI filtering and NTC thermistor safeguards against surges, while gold-plated cables ensure durable, high-conductivity connections.
