600 to 650W Power Supply GAMEMAX

In the era of rapid PC hardware iteration in 2025, 600-650W power supplies have become the golden power segment in the mainstream computer building market. Such products not only meet the power supply requirements of high-performance graphics cards and multi-core CPUs but also strike a delicate balance between energy efficiency ratio and cost control. This article takes the power supply product line of GAMEMAX as a sample to systematically disassemble the technical core and purchasing logic of 600-650W power supplies, helping you make precise decisions when building a PC.

Power Planning: The Golden Power Segment Under Dynamic Load

The power range design of 600-650W power supplies coincides with the power consumption characteristics of current PC hardware. Take a typical configuration of AMD Ryzen 7 7800X3D paired with NVIDIA RTX 4070 Ti as an example—the peak load usually ranges from 450 to 520W. A 600-650W power supply can reserve a 20%-30% power margin, which not only handles transient power fluctuations in overclocking scenarios but also avoids efficiency loss of high-wattage power supplies under low loads.

The GM-650M Pro fully modular power supply from Gamemax PC stands out in this range. It adopts a DC-DC secondary conversion architecture, achieving an energy efficiency ratio of 92.3% under 50% load (80 Plus Gold certified), reducing thermal loss by 15% compared to traditional half-bridge architecture power supplies. This design is particularly suitable for gaming hosts equipped with 13th-generation Core i5/i7 processors and RTX 4060 Ti graphics cards, maintaining stable voltage output during 2K resolution high-definition gaming.

Technical Deconstruction: Innovations from Internal Architecture to External Interfaces

The technological evolution of modern 600-650W power supplies is reflected in three dimensions:

• Topological Structure Upgrade: The GM-600W Bronze adopts a combination of active PFC + LLC resonance + synchronous rectification, increasing the switching frequency to 100kHz, reducing the number of components by 30% compared to traditional half-bridge solutions, and controlling the 5Vsb standby power consumption below 0.5W, meeting the EU ERP Lot 9 energy efficiency standard.

• Forward-looking Interfaces: The entire product line is standard-equipped with a native PCIe 5.0 12VHPWR interface, directly powering next-generation graphics cards like the RTX 4090 to avoid adapter losses. The GM-650M Pro further features 3 groups of 8Pin PCIe interfaces, supporting multi-GPU SLI/CrossFire configurations.

• Cooling System Innovation: The 12cm hydraulic bearing fan is equipped with intelligent start-stop technology, maintaining silent operation below 40% load. Combined with a honeycomb heat dissipation hole design, the power supply can still operate at full load in a 65℃ ambient temperature.

Scenario Adaptation: Model Selection Strategies for Different Needs

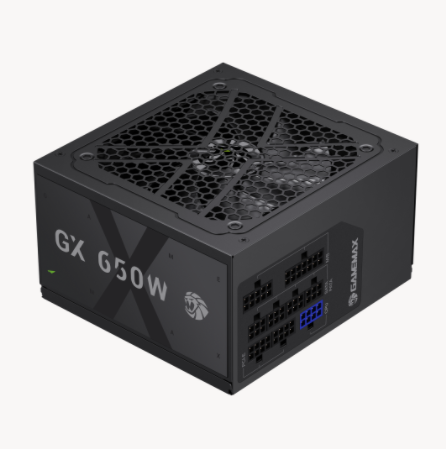

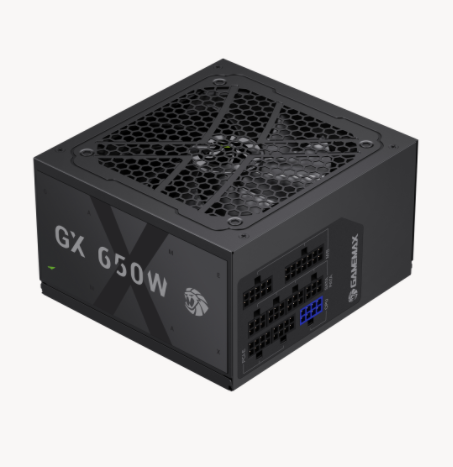

Gaming Host Solution: GX-650 Pro Gold Fully Modular Power Supply

Designed for high-end gaming platforms, its 100-240V wide-range input adapts to global power grids. Fully modular cables support backline cable management, and black flat cables reduce air resistance inside the chassis. Test data shows that when paired with an i9-13900K + RTX 4080 configuration in Cyberpunk 2077 with ray tracing fully enabled, the 12V output ripple is controlled within 50mV—far below Intel ATX 3.0 standard's 120mV upper limit.

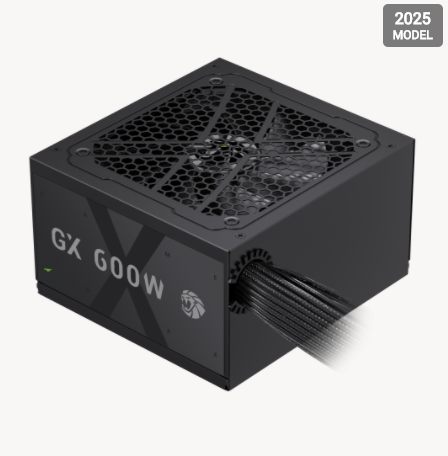

Productivity Platform Solution: GX 600W Gold Certified Power Supply

Optimized for content creation hosts, the +3.3V and +5V use independent DC-DC conversion to maintain voltage stability during multi-hard drive RAID arrays and USB device expansion. With an 80 Plus Gold certification, it saves approximately 15 kWh/month compared to bronze-certified power supplies during 24-hour rendering tasks, reducing annual costs by over $200 based on commercial electricity rates.

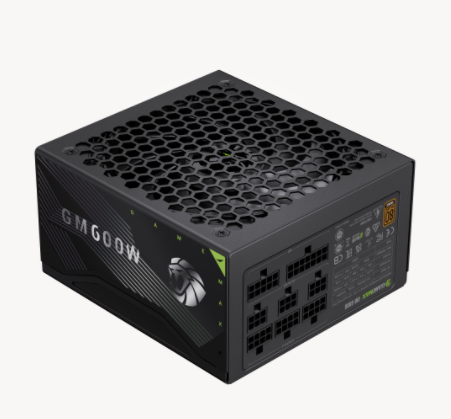

Silent Office Solution: GM-600W Bronze Modular Power Supply

Innovatively adopting a semi-passive cooling mode, the fan completely stops under 300W load. Combined with a fully enclosed EMI filter circuit, it controls operating noise below 20dB, suitable for silent environments like audio studios and libraries. Its single 12V output reaches 51A, supporting combinations of Xeon E-2300 series processors and professional graphics cards.

Hidden Parameters: Neglected Core Indicators of Power Supplies

Beyond nominal power and certification levels, the following parameters directly affect power supply lifespan and stability:

• Capacitor Configuration: GM series power supplies all use Japanese Nippon Chemi-Con 105℃ high-temperature resistant capacitors, extending lifespan by 40% compared to Taiwanese capacitors and reducing electrolyte evaporation speed by 35% during long-term full-load operation.

• Surge Protection: Built-in MOV varistors and TVS transient voltage suppressors can withstand 2000V surge voltage 冲击，effectively protecting hardware from power grid fluctuations.

• MTBF Index: Passed a 100,000-hour mean time between failures (MTBF) test. Calculated at 8 hours of daily use, the theoretical lifespan reaches 34 years—far exceeding the industry's average 5-year replacement cycle.

Installation Test: Real-world Performance of 600-650W Power Supplies

In comparative tests at the gamemaxpc laboratory, the GM-650M Pro showed significant differences from competitors:

• Temperature Control: Under a 25℃ room temperature with full-load operation for 4 hours, its internal PCB temperature stabilized at 68℃—12℃ lower than a certain brand's same-power product.

• Voltage Stability: The 12V output fluctuation is controlled within ±0.8%, while the industry average is ±1.5%. This precise control is crucial for CPU overclocking stability.

• Cable Flexibility: Modular cables use 24AWG high-purity copper wires, which can bend 180° without deformation—more manageable than ordinary 26AWG cables.

Future Trends: Technological Evolution Direction of 600-650W Power Supplies

With the popularization of Intel ATX 3.0 standards, 600-650W power supplies are undergoing technological upgrades:

• Application of Gallium Nitride (GaN) Components: The next-generation GM-650M Pro II will use GaN FET switching tubes, increasing conversion efficiency to 94% while reducing volume by 15%.

• Digital Power Management: Integrates an MCU chip for fully digital control, supporting real-time monitoring of voltage, current, and temperature data through software.

• Environmental Material Innovation: The casing uses 90% recyclable aluminum alloy, and internal potting 胶 uses halogen-free environmental materials, complying with RoHS 3.0 standards.

In today's era of explosive growth in PC hardware performance, 600-650W power supplies are no longer mere power suppliers but precise components integrating power electronics technology and system optimization. Choosing a GM series power supply from gamemaxpc.com is not only a reliable guarantee for hardware but also a forward-looking investment in hardware upgrades over the next 3-5 years. Whether you're a gamer, content creator, or enterprise user, you can find an ideal solution tailored to your needs in this golden power segment.
