Elysium Black
G503X Pardo
Model : G503X
Case Type: Mid Tower
Color：Black

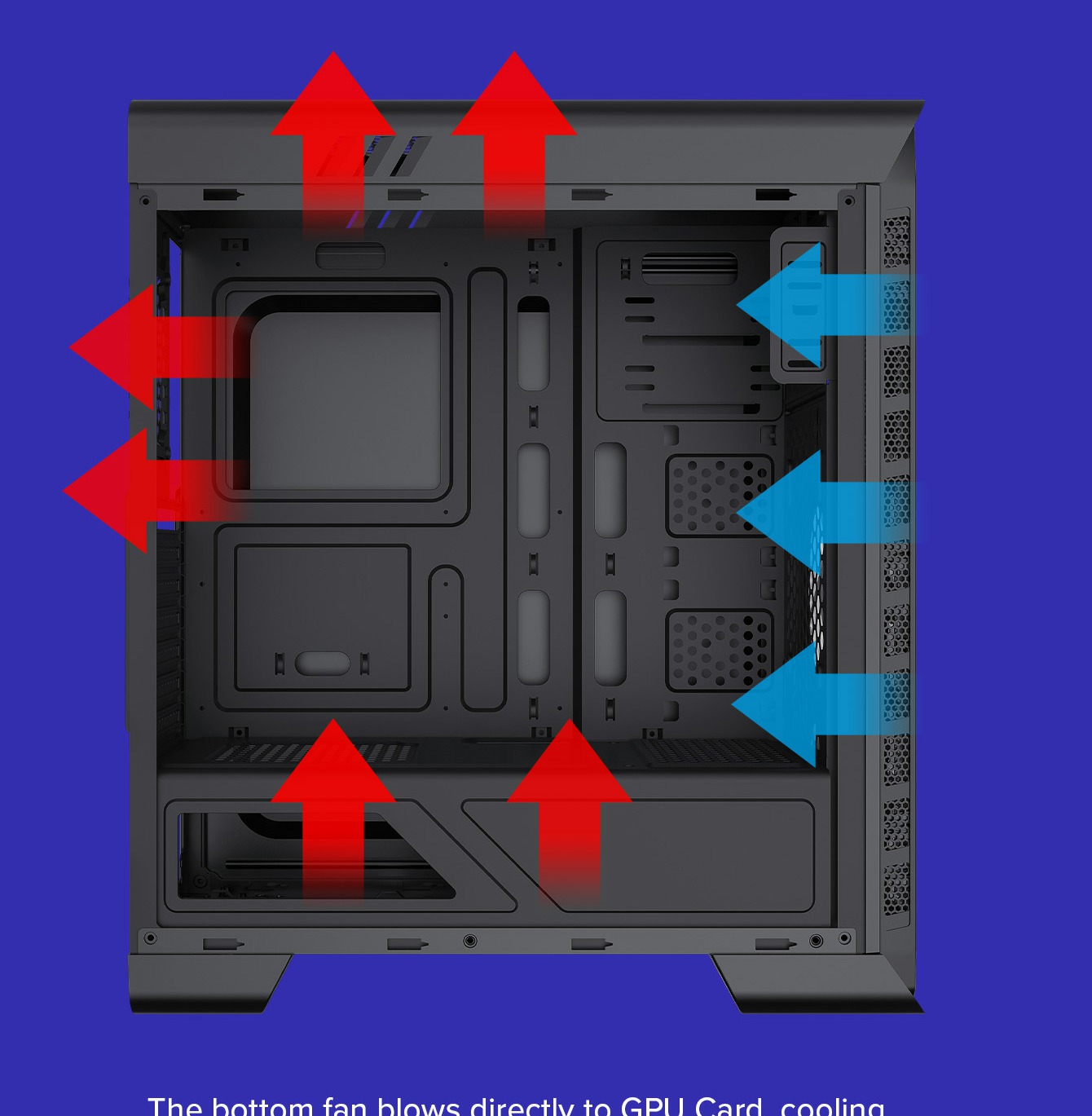

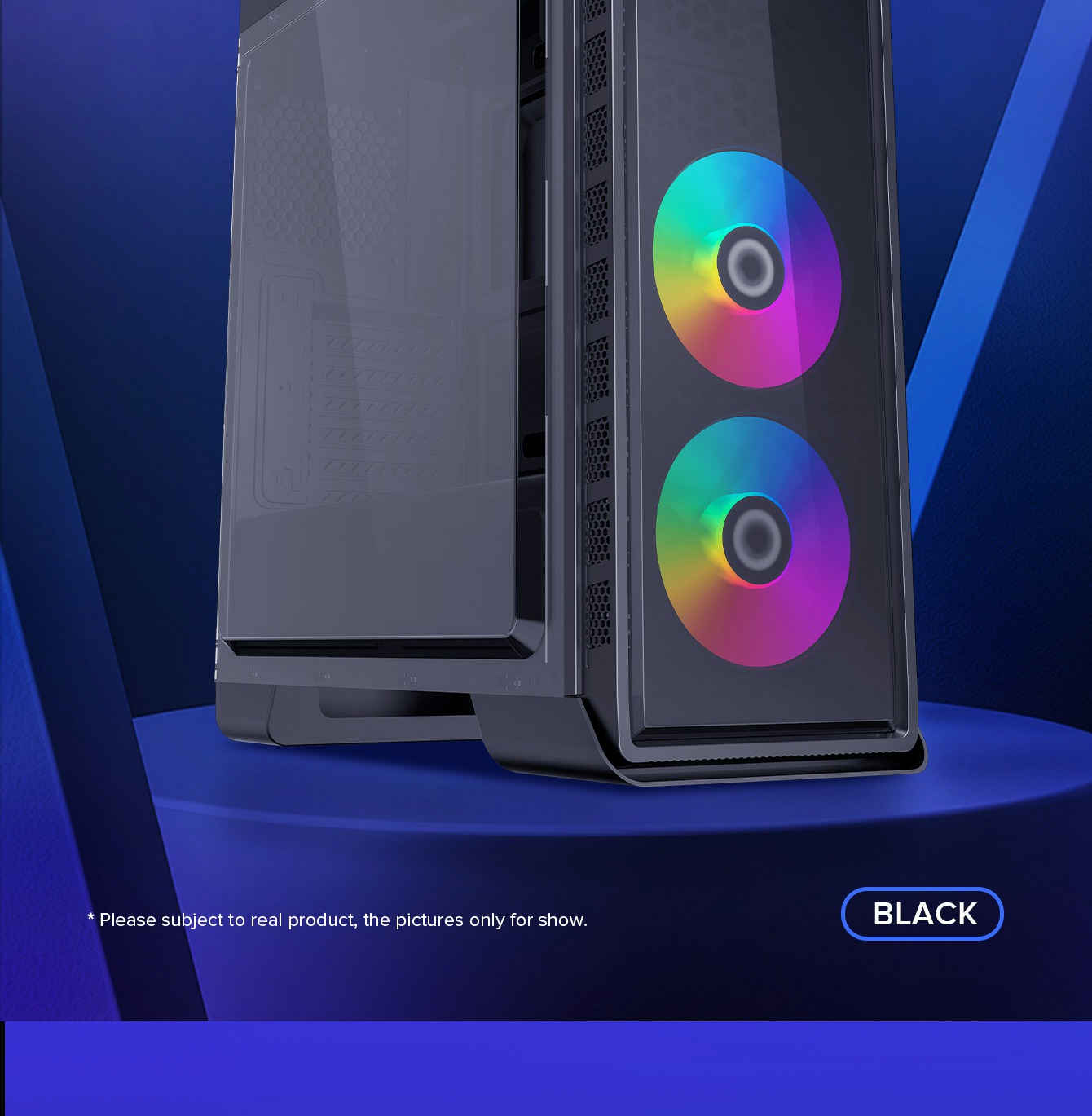

Cooling System: 3 x 120 mm front intake fans (Optional)
1 x 120 mm rear fan (Optional)
Window side panel

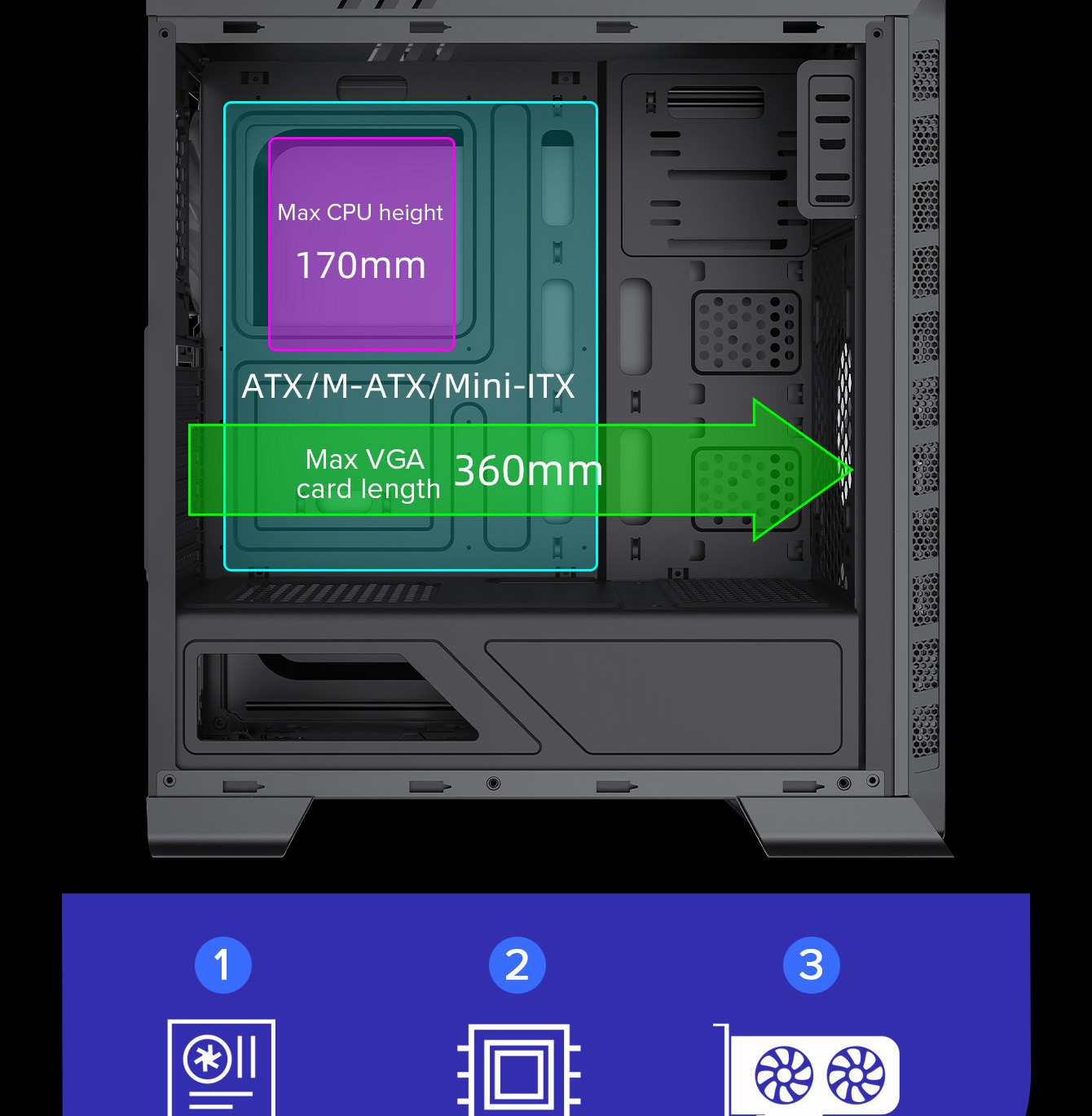

Maximum CPU cooler height: up to 170 mm

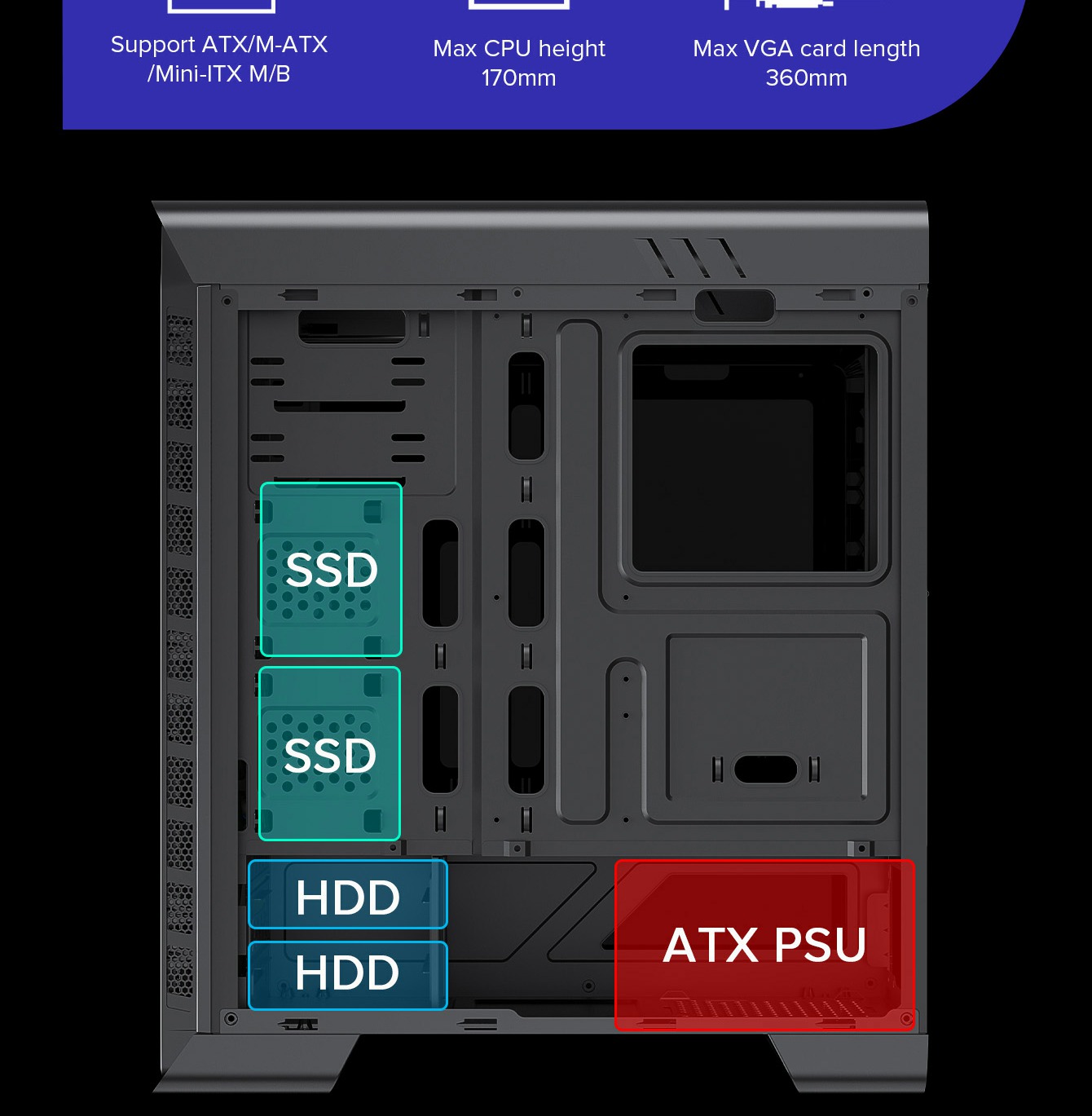

Drive Bays: 1 x 5.25
2 x 3.5 tool-less HDD bays；2 x 2.5 SSD

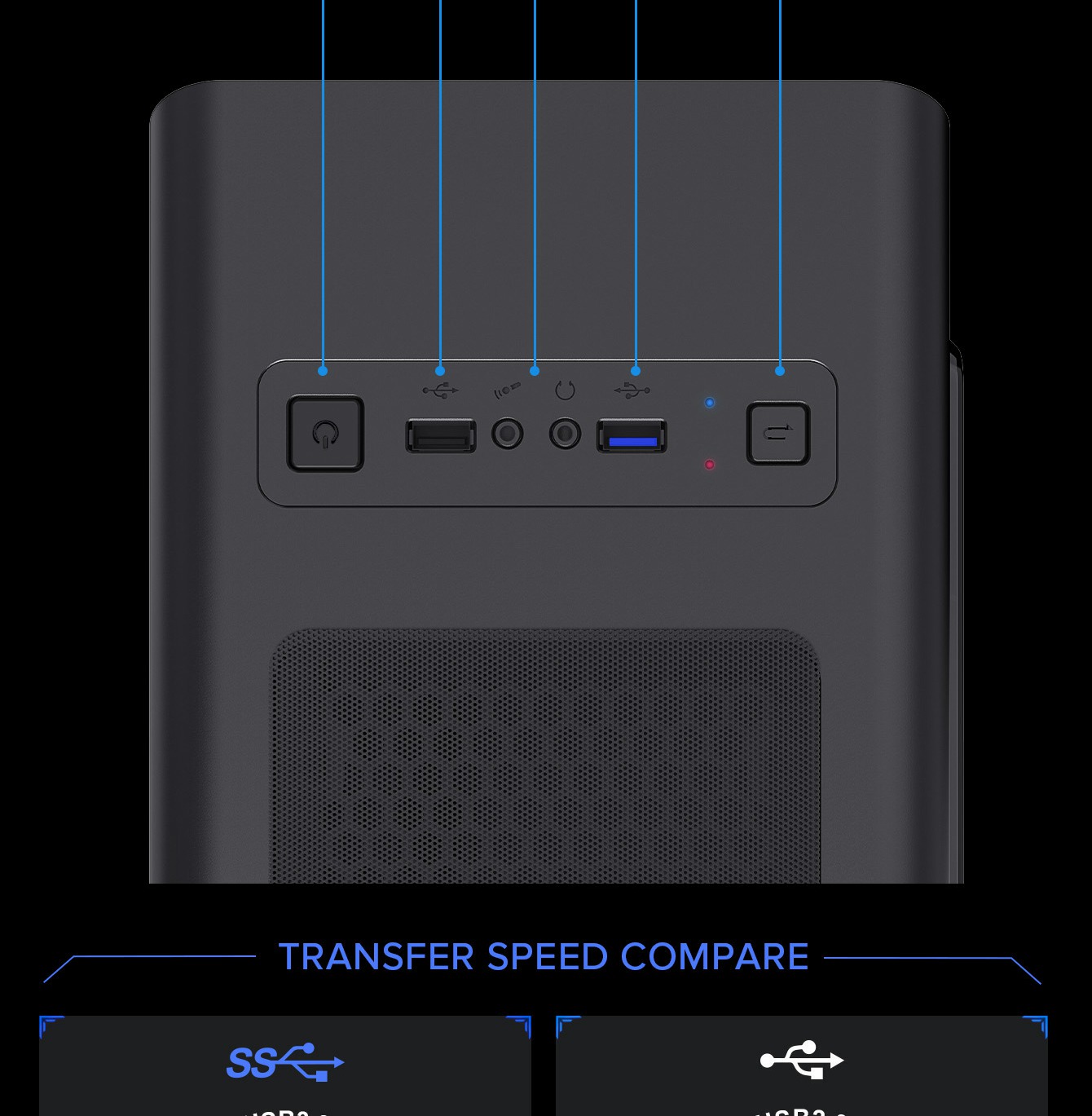

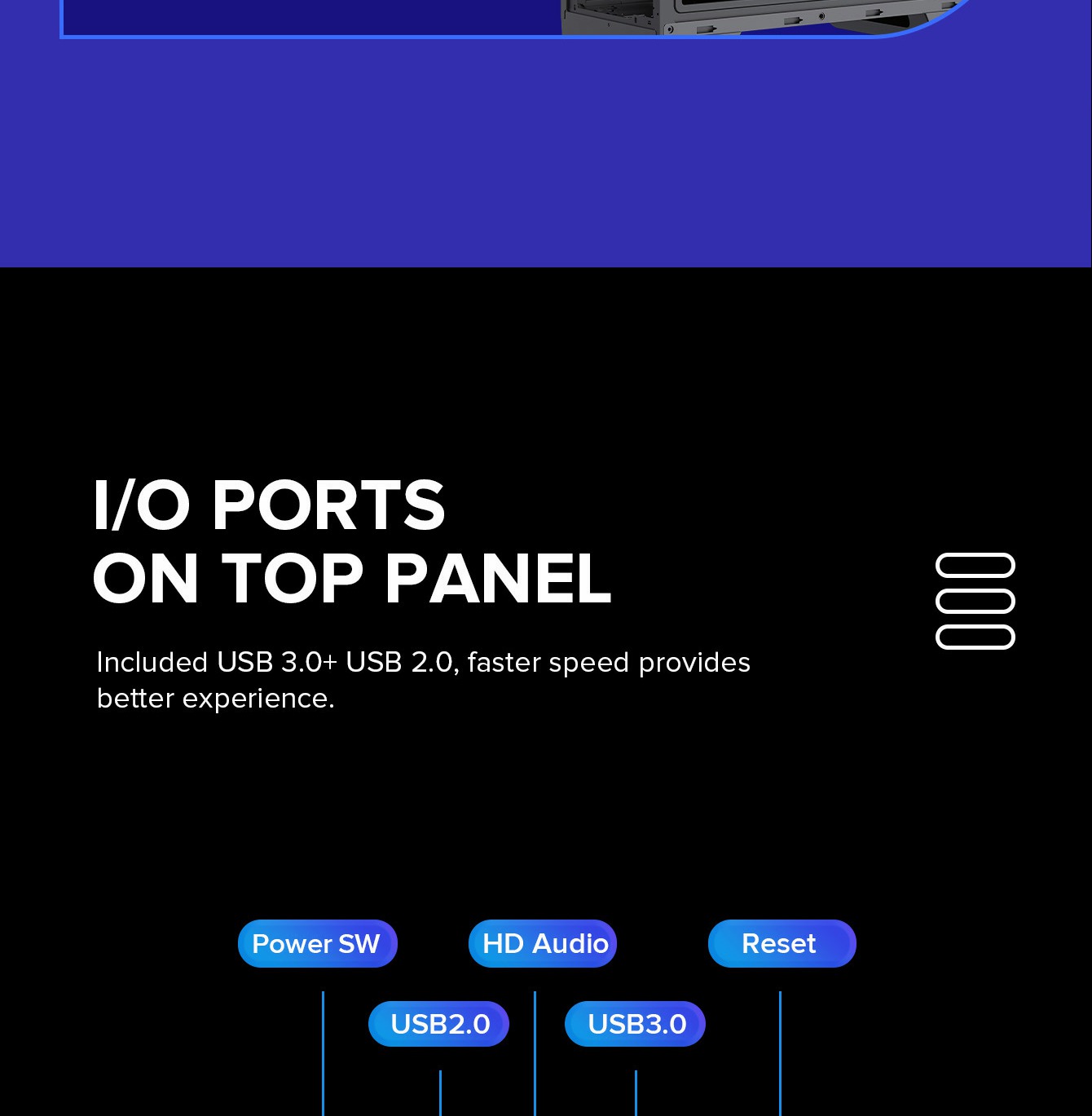

Top Ports:1 x USB 3.0+2xUSB2.0；Audio In and Out
Fan control (High/off/Low)
Expansion Slots : 7 x PCI-E
Motherboard Support: Standard ATX, Micro ATX, Mini-ITX
Cable Management: cable routing space behind motherboard
- Chassis Type： ATX
- Led's Mode： Normal
| Model No.: | Elysium /G503X |
| Type: | ATX/MICRO ATX/ITX/MINI ITX |
| Front Panel: | Transprant finish |
| Side Panel: | left panel with transparent panel (included) |
| Top Panel: | Top metal panel with filter |
| Fan controller : | x1 channel |
| Chassis: | 0.5mm , Black painting interior |
| Front USB Ports: | USB2.0x 2 (included) |
| USB3.0x 1 (included) | |
| Front Audio Jackets | HD_Audio |
| PSU Factor: | ATX |
| Reserved Fan Ports(optional): | Front: 2x120mm fan (Inlcuded) |
| Side: Null | |
| Rear: 1x 120mm 15 leds((optional) | |
| Top: 2x120mm fan (Optional) | |
| Water-Cooling System (optional)： | Front: 120 or 240mm water cooling |
| Top: 120 or 240mm water cooling | |
| Drive Bays 5.25'' exposed | 1 |
| Drive Bay 3.5'' exposed | 0 |
| Drive Bay 3.5'' hidden | 2 |
| Drive Bay 2.5'' SSD | 2 |
| PCI Expansion Slots: | 7 |
| Chassis Size: | 400*185*470mm |
| Carton Size: | 545*237*505mm |
| QTY in 20GP cntr(appr.): | 420 pcs |
| QTY in 40GP cntr(appr.): | 880 pcs |
| QTY in 40HQ cntr(appr.): | 1040 pcs |
| Max.VGA Card (Length): | 380 mm |
