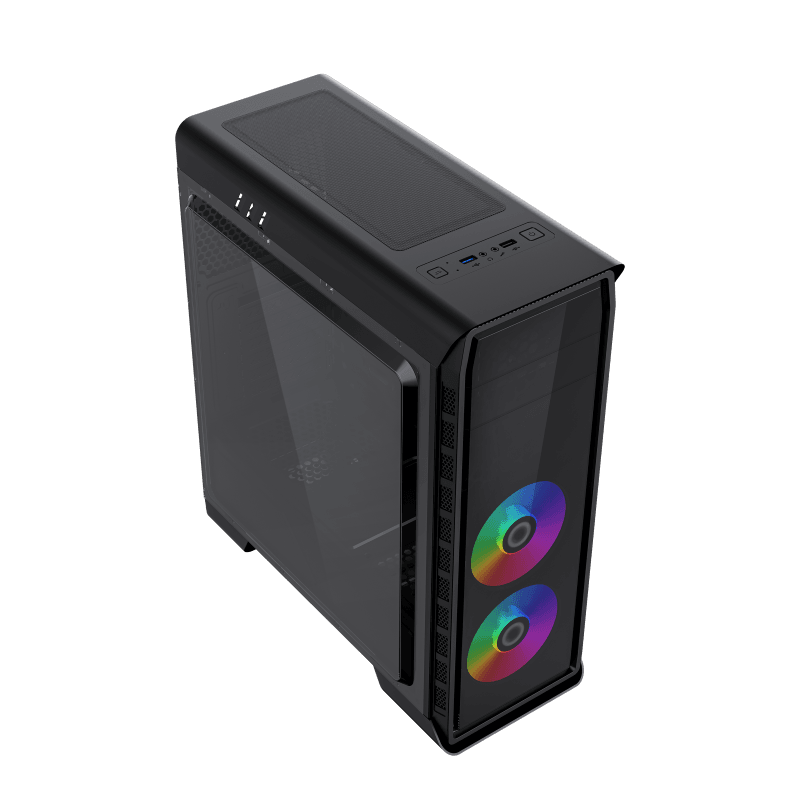

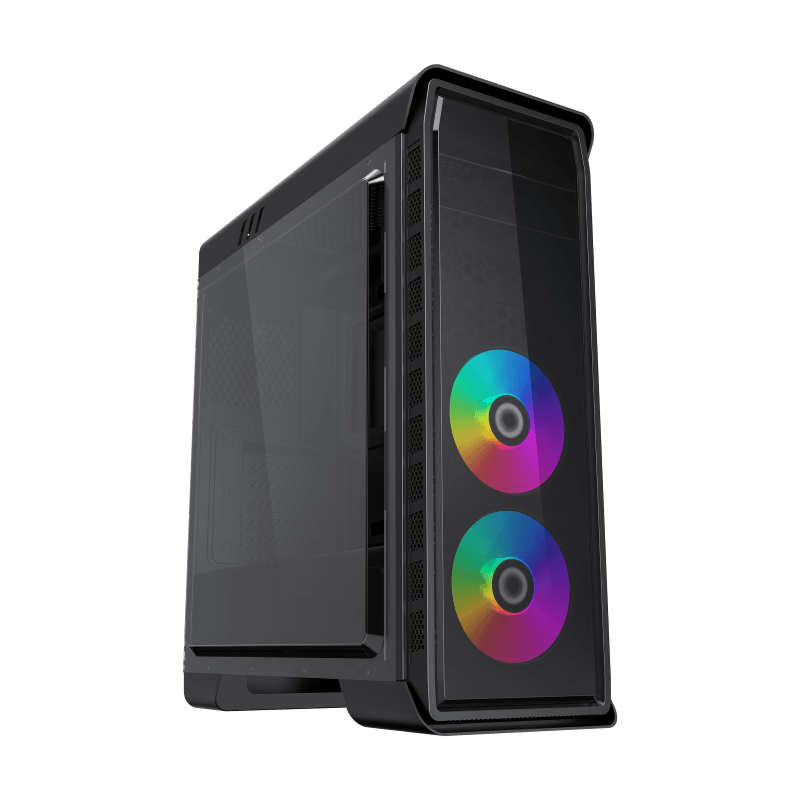

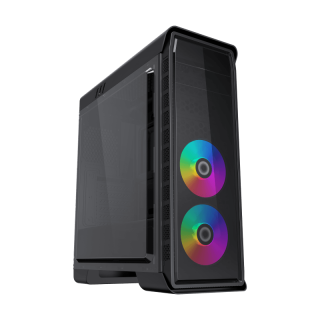

Elysium Black FRGB

Elysium Black FRGB, ATX Gaming case. Case Type: Mid Tower
Color:Black
Cooling System: 3 x 120 mm front intake fans (Optional)
1 x 120 mm rear fan (Optional)
Window side panel
Maximum CPU cooler height: up to 170 mm
Drive Bays: 1 x 5.252 x 3.5 tool-less HDD bays
x 2.5 SSD
Top Ports:1 x USB 3.0+2xUSB2.0;Audio In and Out
Fan control (High/off/Low)
Expansion Slots : 7 x PCI-E
Motherboard Support: Standard ATX, Micro ATX, Mini-ITX
Cable Management: cable routing space behind motherboard

Color:

Model    No.:Elysium Black /G503X
Type:ATX/MICRO ATX/ITX/MINI ITX
Front Panel:Transprant finish

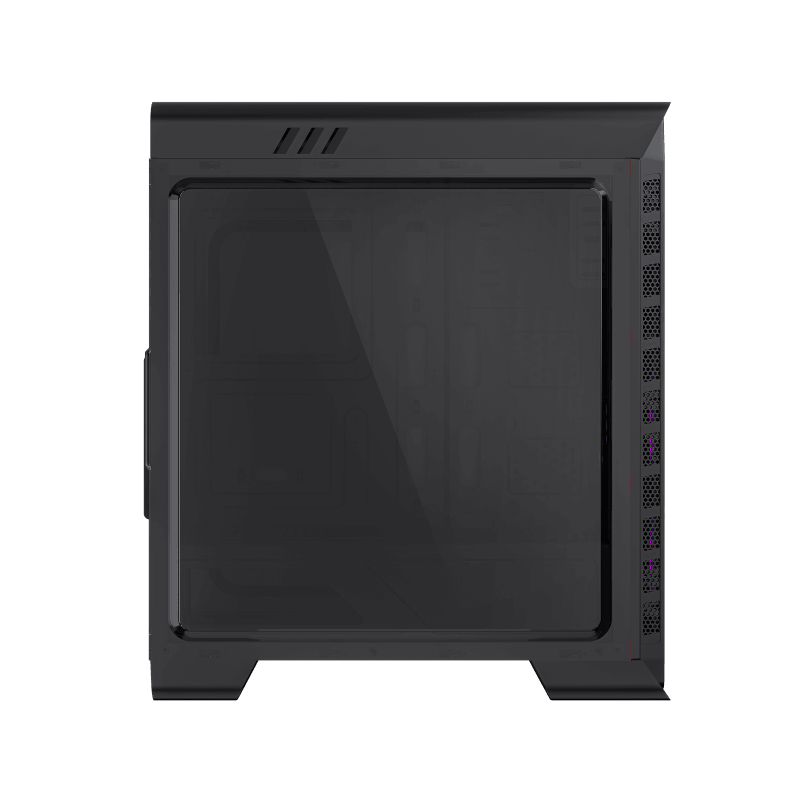

Side   Panel:left panel with  transparent panel  (included)
Top    Panel:Top metal panel with filter
Fan controller :x1 channel
Chassis:0.5mm , Black painting interior
Front USB Ports:USB2.0x 2  (included)
USB3.0x 1   (included)
Front Audio JacketsHD_Audio
PSU Factor:ATX
Reserved Fan Ports(optional):
Front: 2x120mm FRGB Fan( (Inlcuded)
Side:    Null
Rear:  1x 120mm FRGB Fan(optional)
Top:   2x120mm fan (Optional)
Water-Cooling System (optional)Front: 120 or 240mm water cooling
Top: 120 or 240mm water cooling
Drive Bays 5.25'' exposed1
Drive Bay   3.5''   exposed0
Drive Bay   3.5''   hidden2
Drive Bay   2.5''   SSD2
PCI Expansion Slots:7
Chassis Size:400*185*470mm
Carton   Size:545*237*505mm
QTY in 20GP cntr(appr.):420   pcs
QTY in 40GP cntr(appr.):880  pcs
QTY in 40HQ cntr(appr.):1040   pcs
Max.VGA Card  (Length):380 mm
