GP-650

GameMax GP-650 Elegant PSU casing with white flat cables, Designed for high performance business and gaming build and various compatibility
Elegant black PSU casing with full black mesh cables
ATX12V Ver.2.30 compliant with ATX12V Ver.2.31

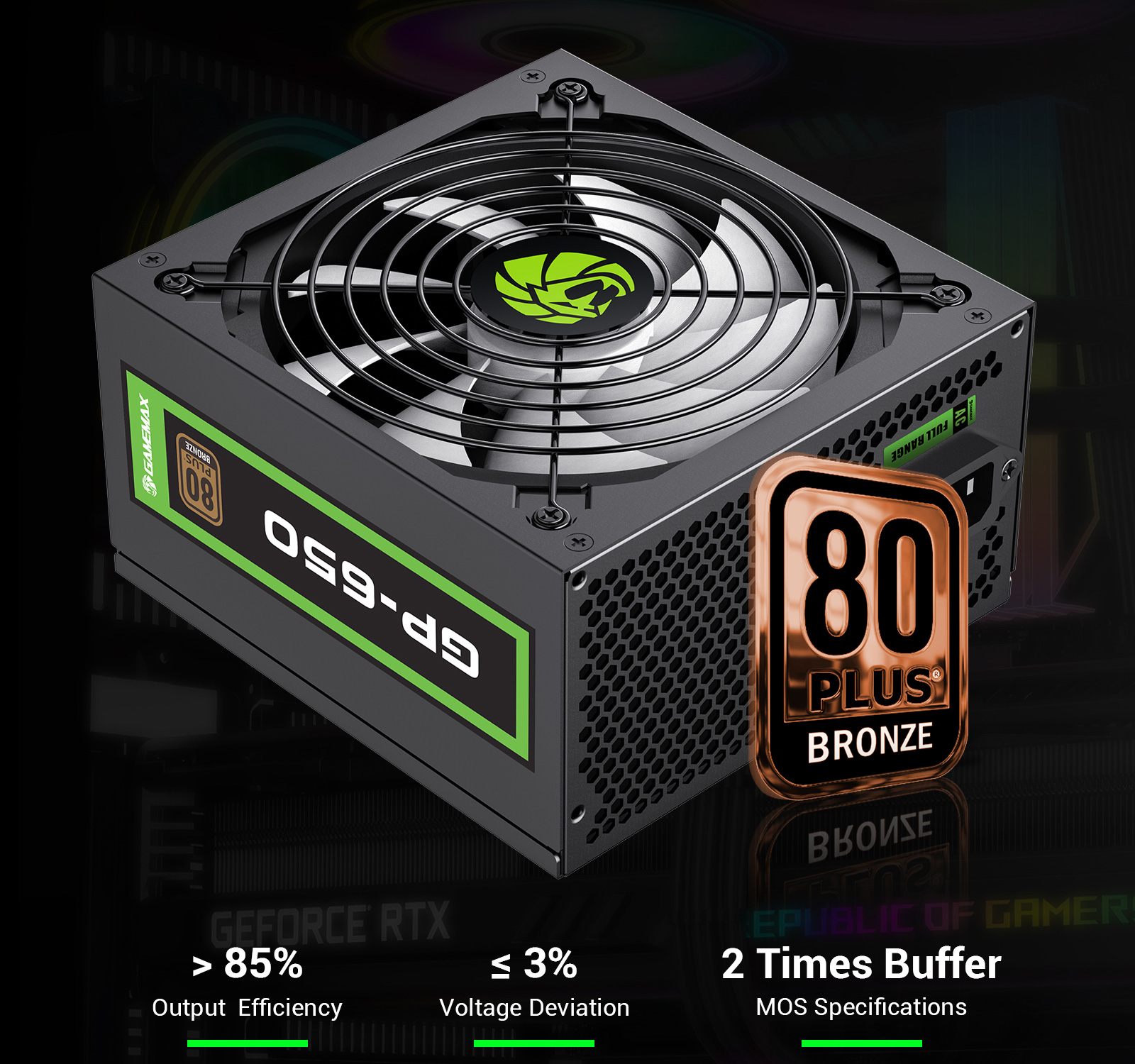

High efficiency PSU, up to 85% efficiency
Extended 12V Rail for high compatibility and extreme high current output
Longer 20 + 4 500mm and 4 + 4 pins up to 650mm is easy for high-end tower chassis installation

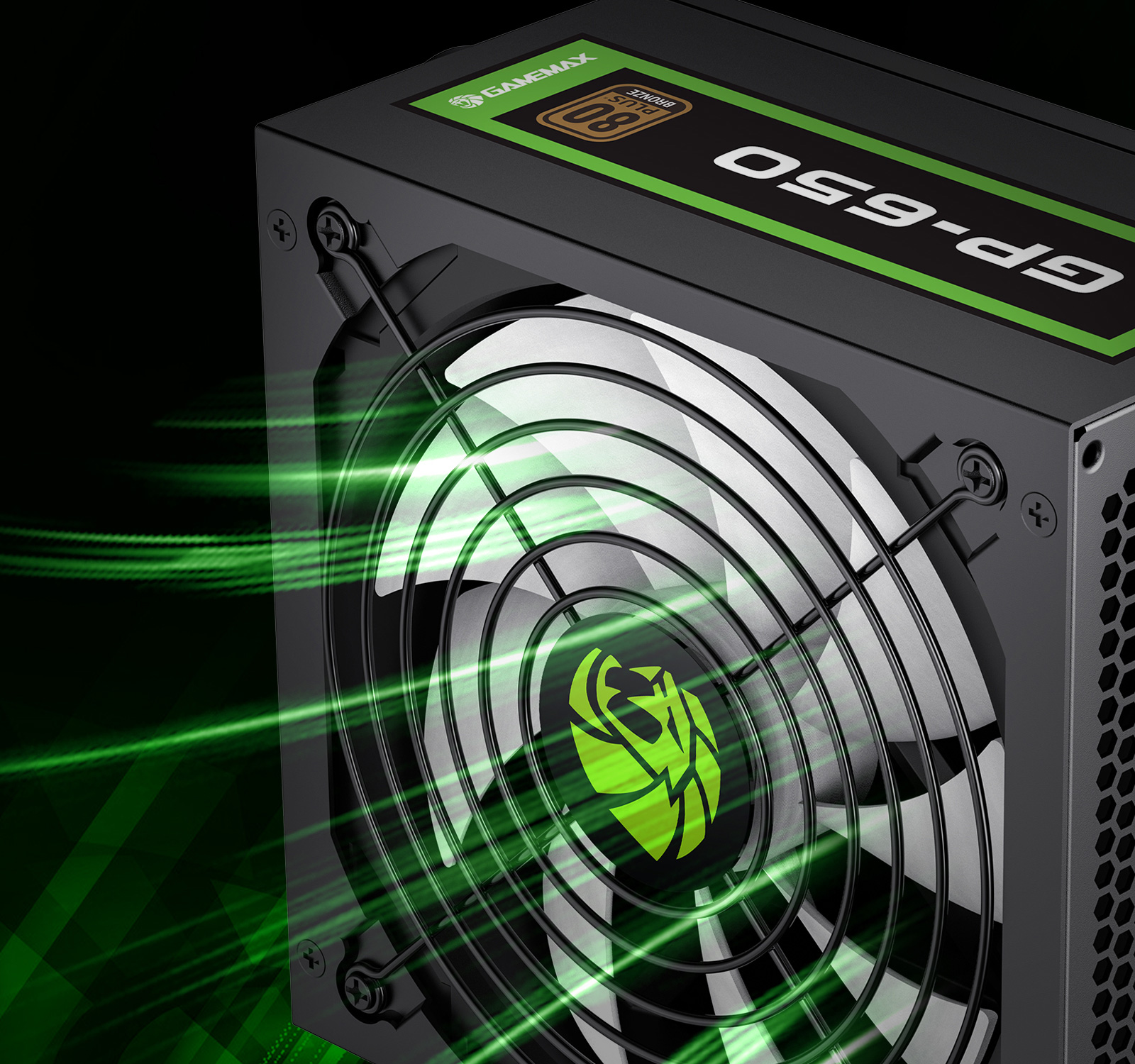

14cm silent black fan with smart thermal fan speed control circuit
Full protection functions with OVP / UVP / OPP / SCP / SIP
Safety and EMC certified by CE
ECO friendly by RoHS and Erp 2013 directives



PSU Specifications

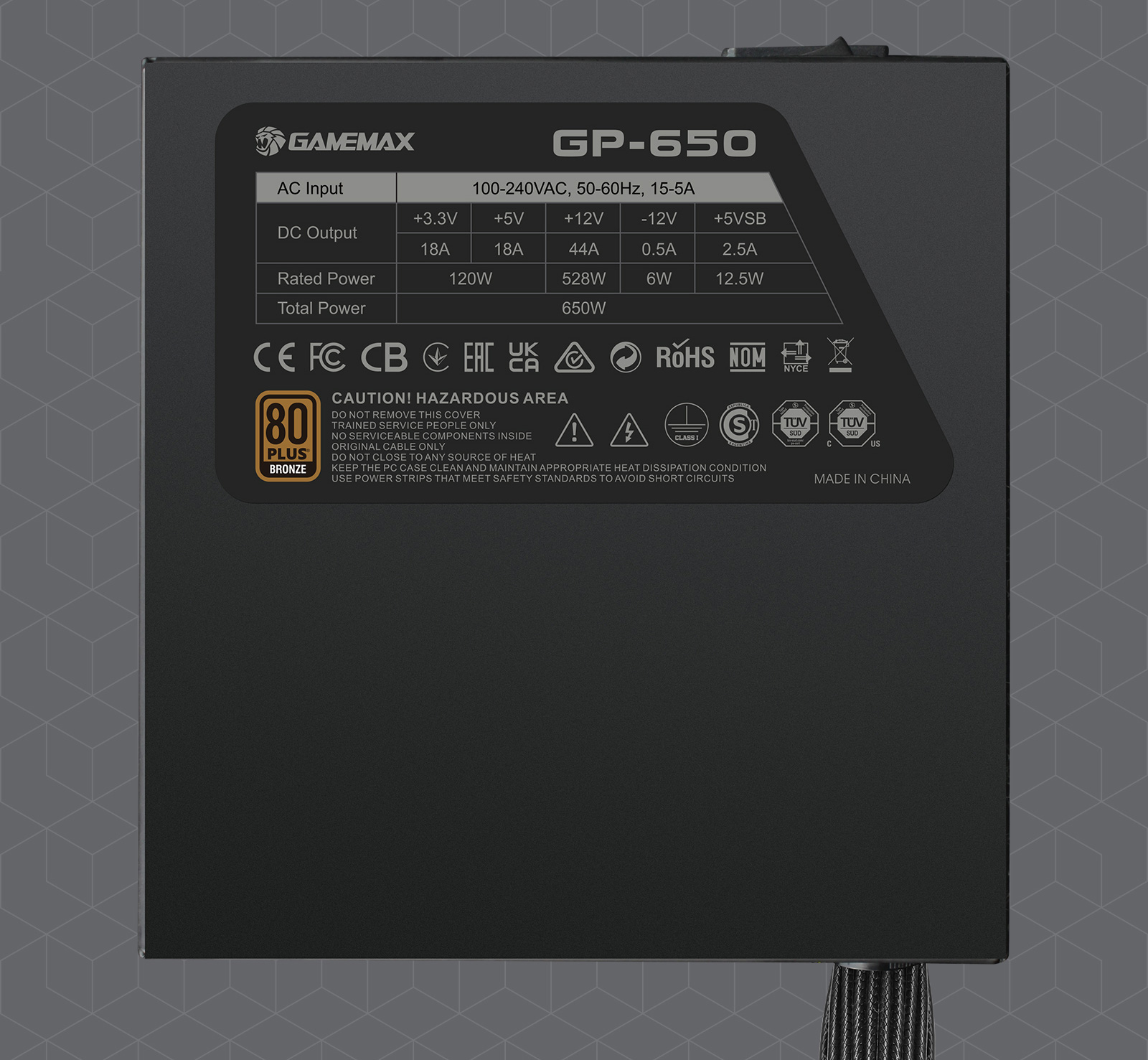

AC INPUT: 100-240 VAC 15-5A 50-60Hz
DC
Output
Max
+3.3V+5V+12V-12V+5VSB
18A18A44A0.5A2.5A
650W

Connectors

20+4 Pin Main Connectors:

1
4+4 Pin 12V Connectors:

1
SATA Connectors:

5
4-Pin Molex Connectors:

3
6+2 Pin PCI-e Connectors:

2

Detailed Specifications

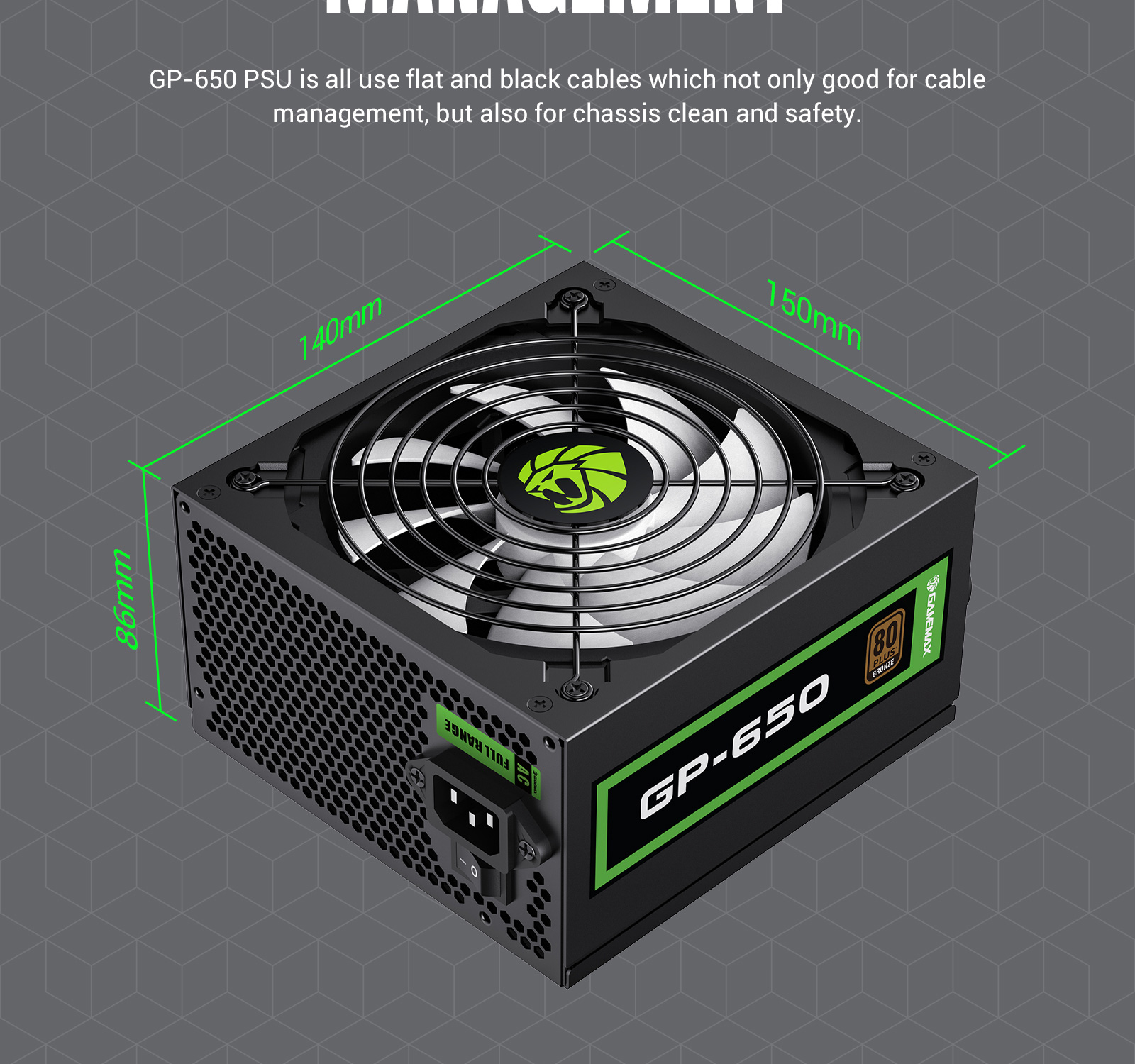

Dimensions:158mm x 85mm x 150mm (W x H x D)
Input Voltage:100-240 VAC
Input Current:15-5A
Input Frequency Range:50-60Hz
PFC:Active PFC (>.99)
Power Good Signal:100-150 ms
Hold Up Time:>10ms
Efficiency:> 82% (85% max)
MTBF:> 100,000 Hours
Protection:OVP / UVP/ OTP / OCP/ OLP/ OPP/ SCP
Power:650W
Operation Temperature:0-40C
