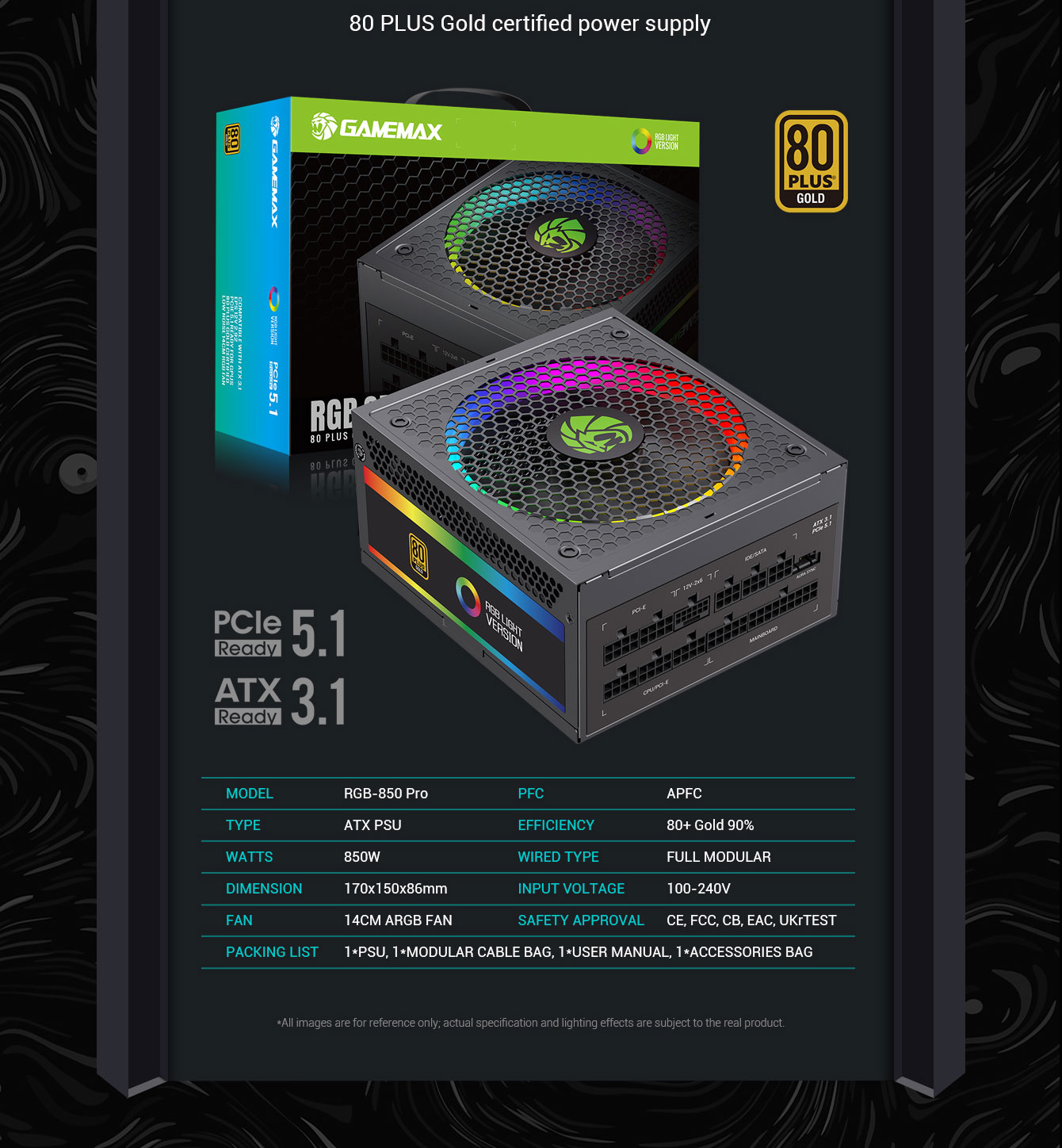

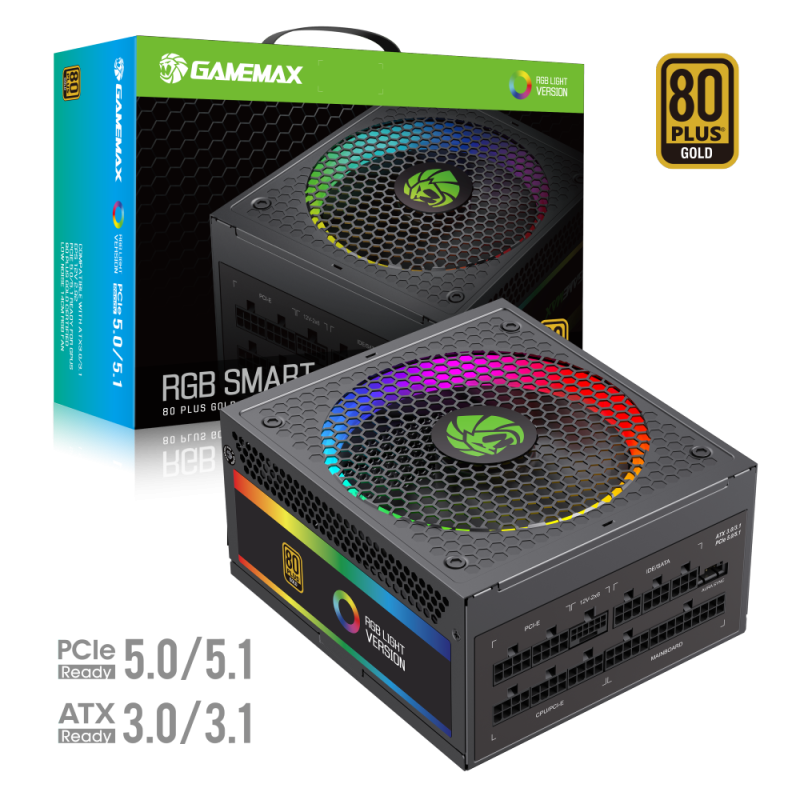

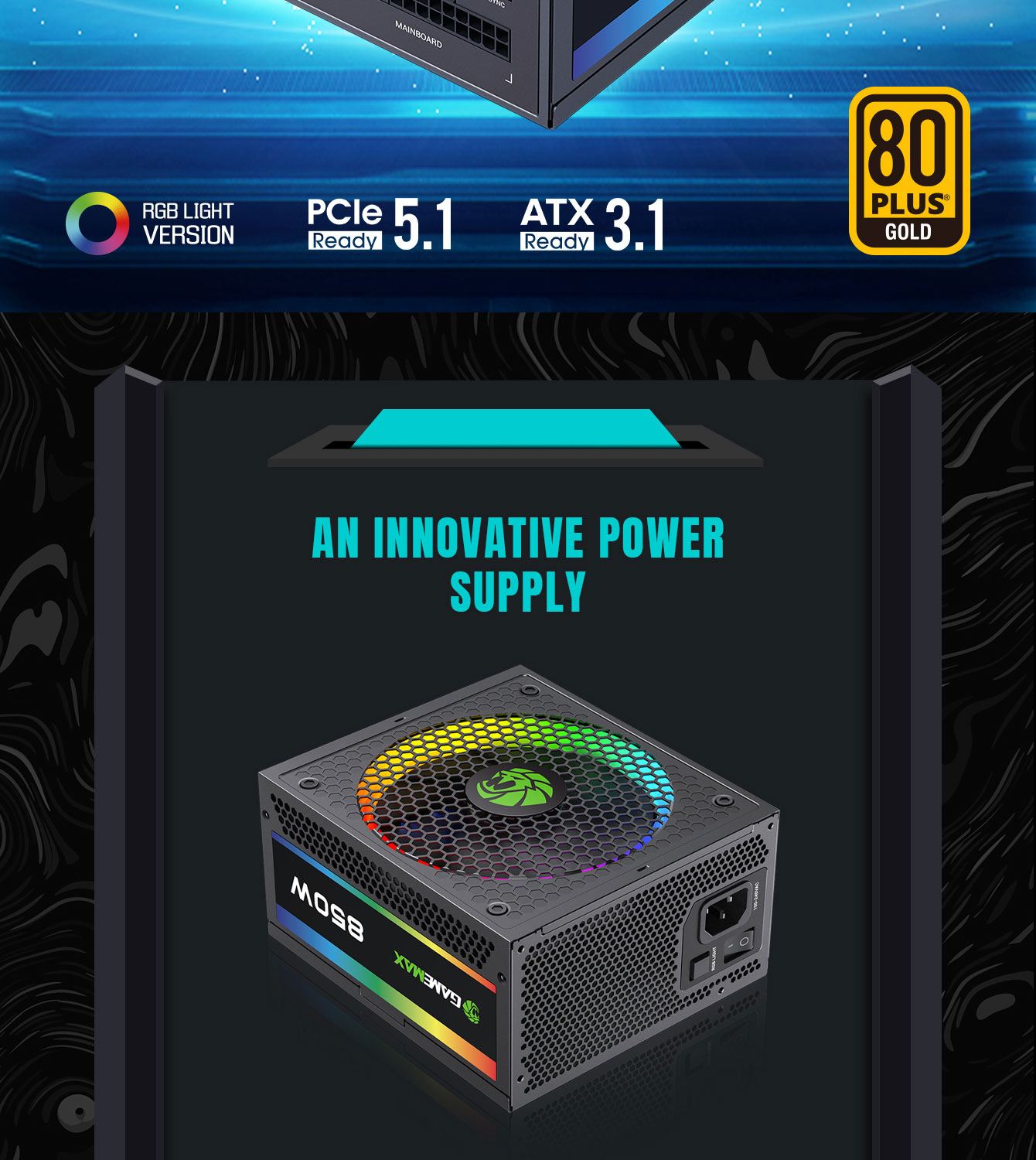

• 850W Power: Fully modular, 80+ Gold Certified, 90% efficiency

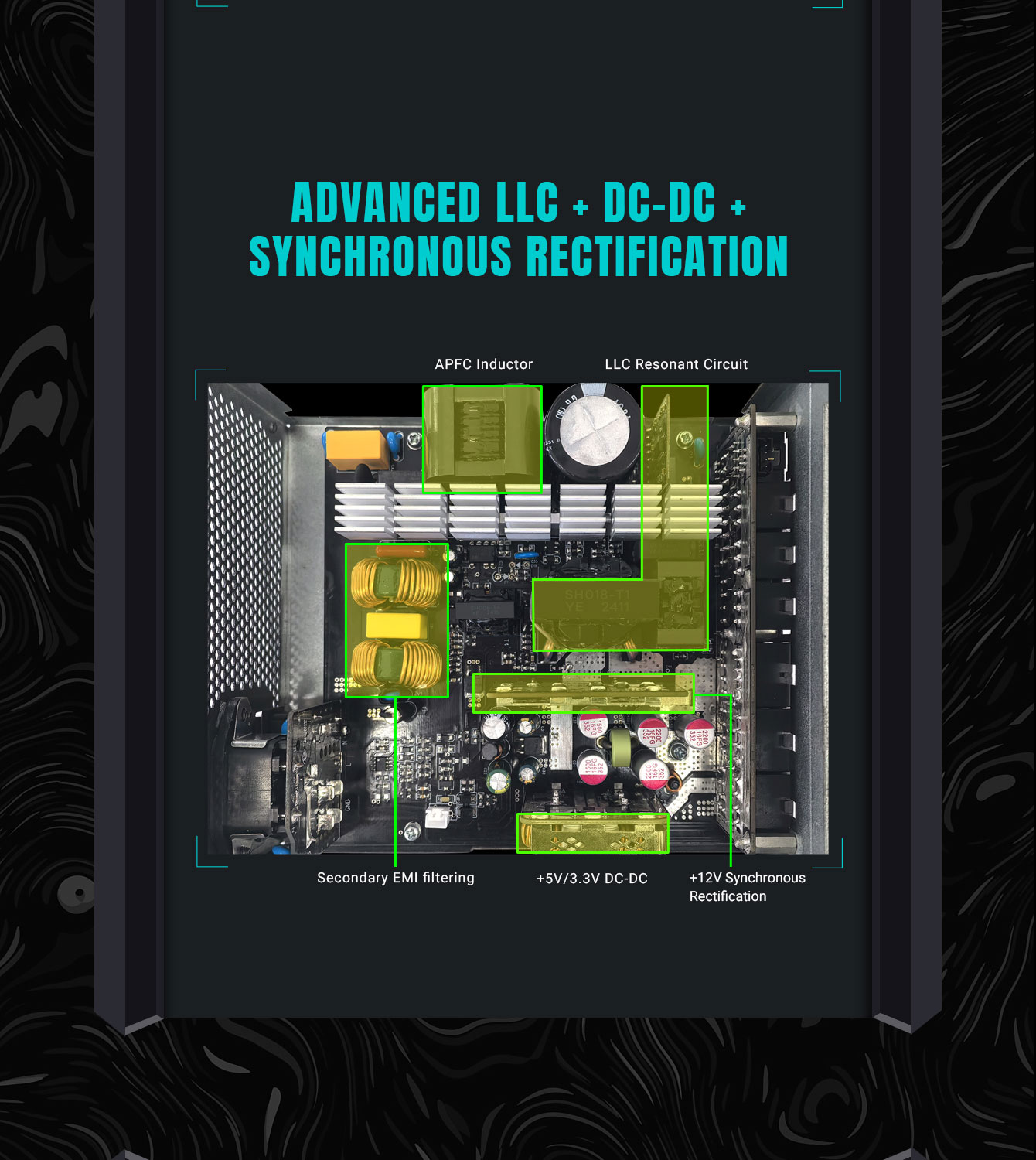

• Advanced Design: LLC+DC-DC with powerful single +12V rail.

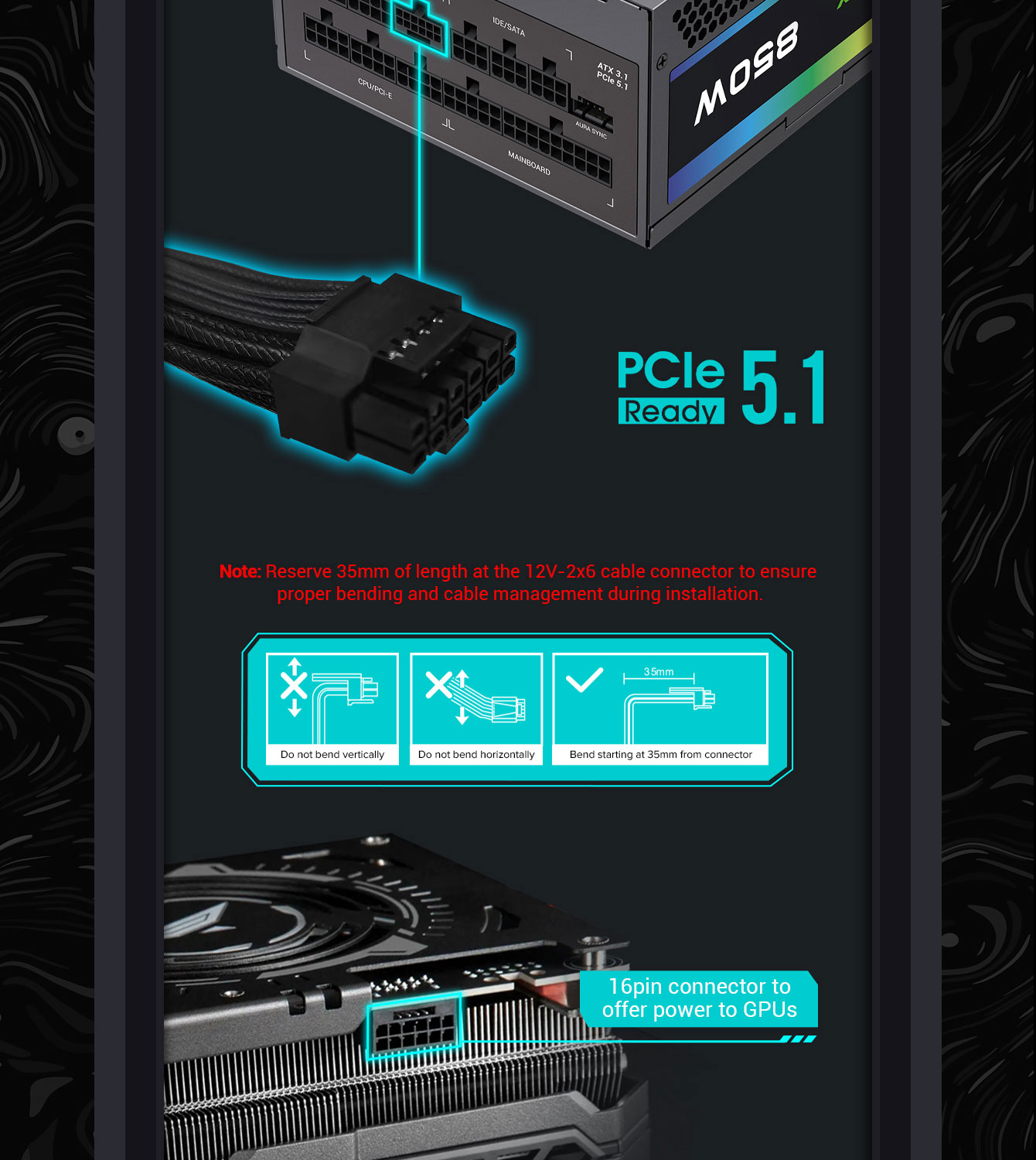

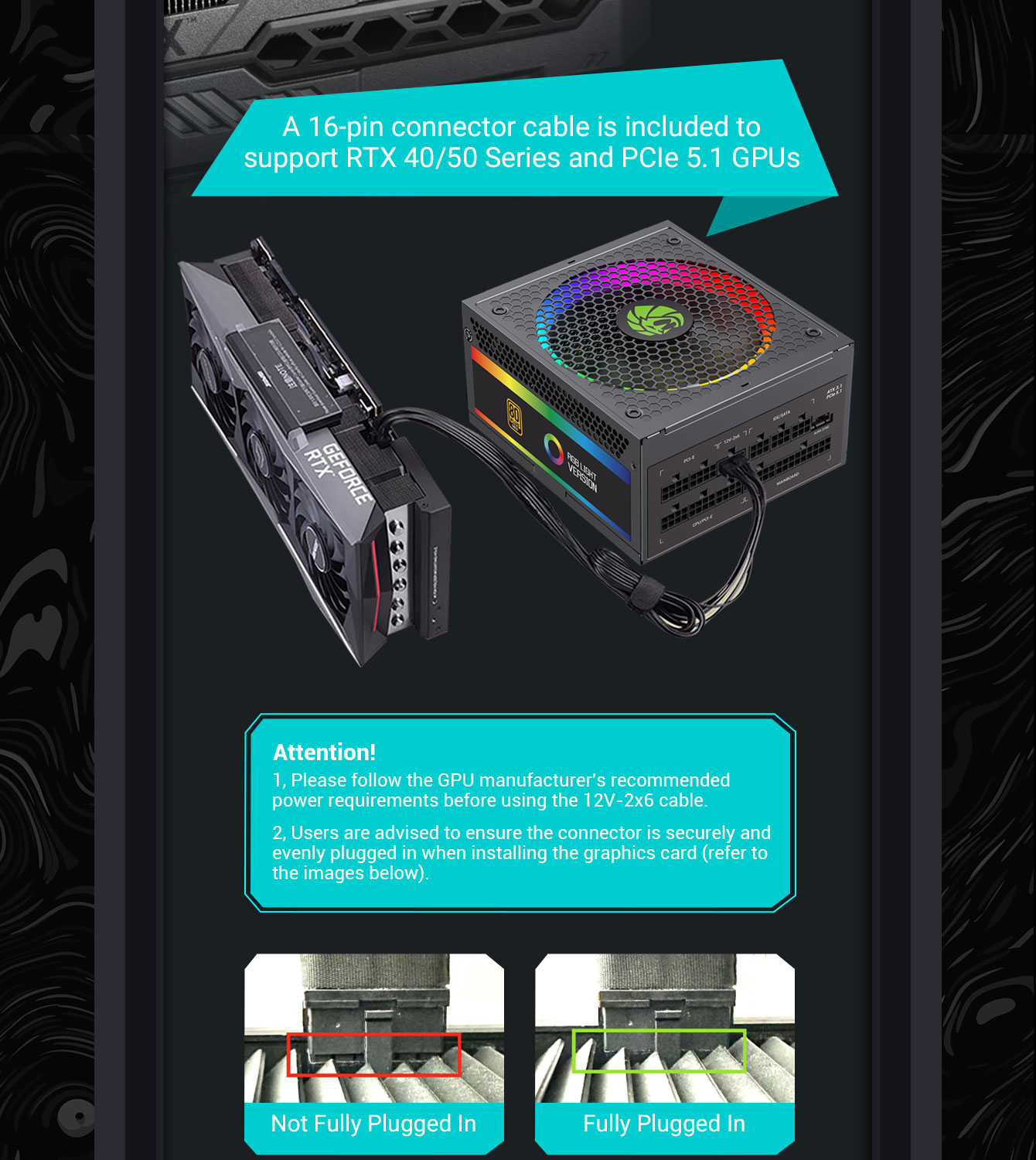

• Compatibility: Supports ATX 3.0/3.1, PCIe 5.0/5.1, 16-pin 12V-2*6 for latest GPUs.

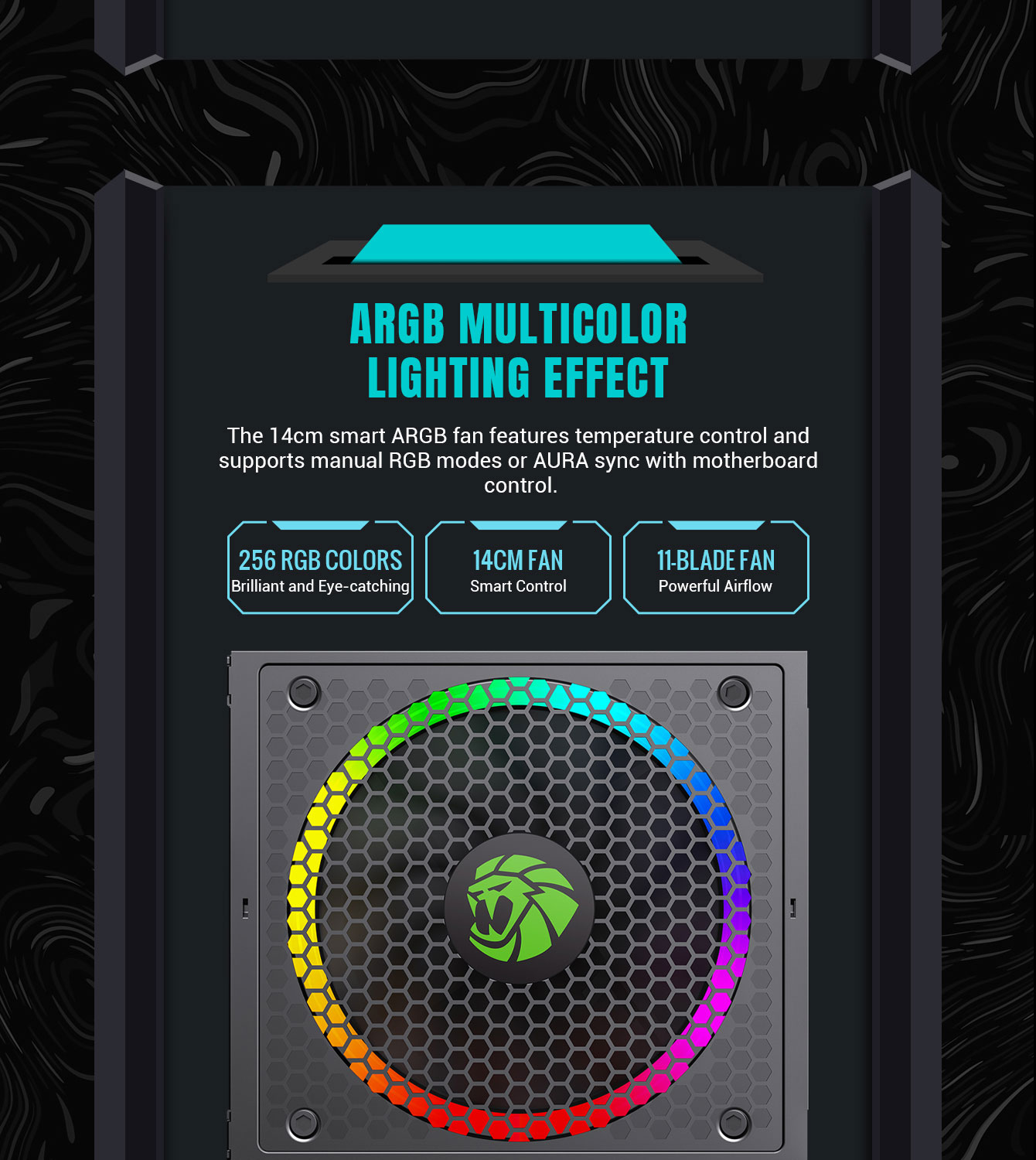

• RGB Lighting: 140mm ARGB fan with 25 lighting modes, syncs with major motherboard brands.

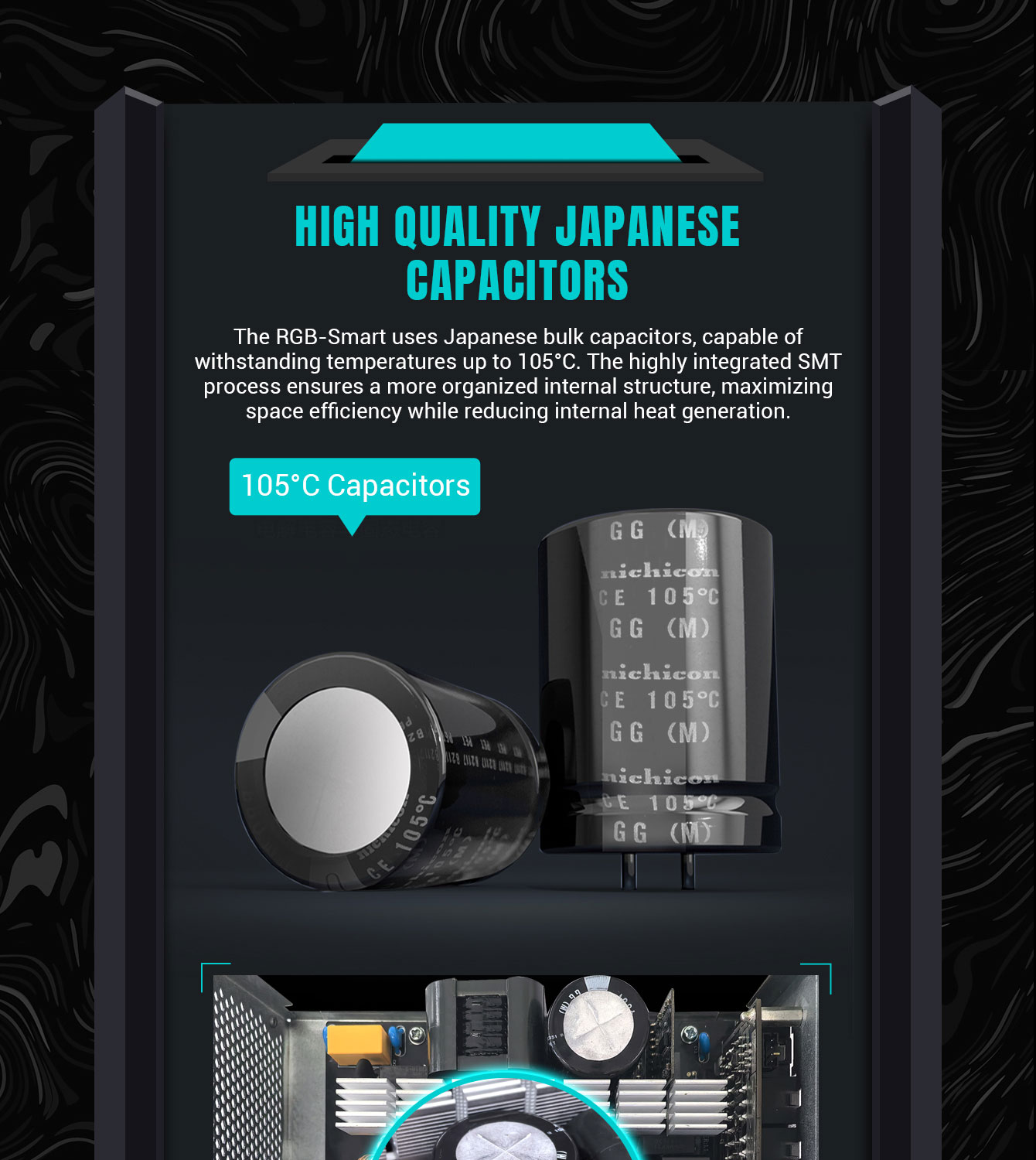

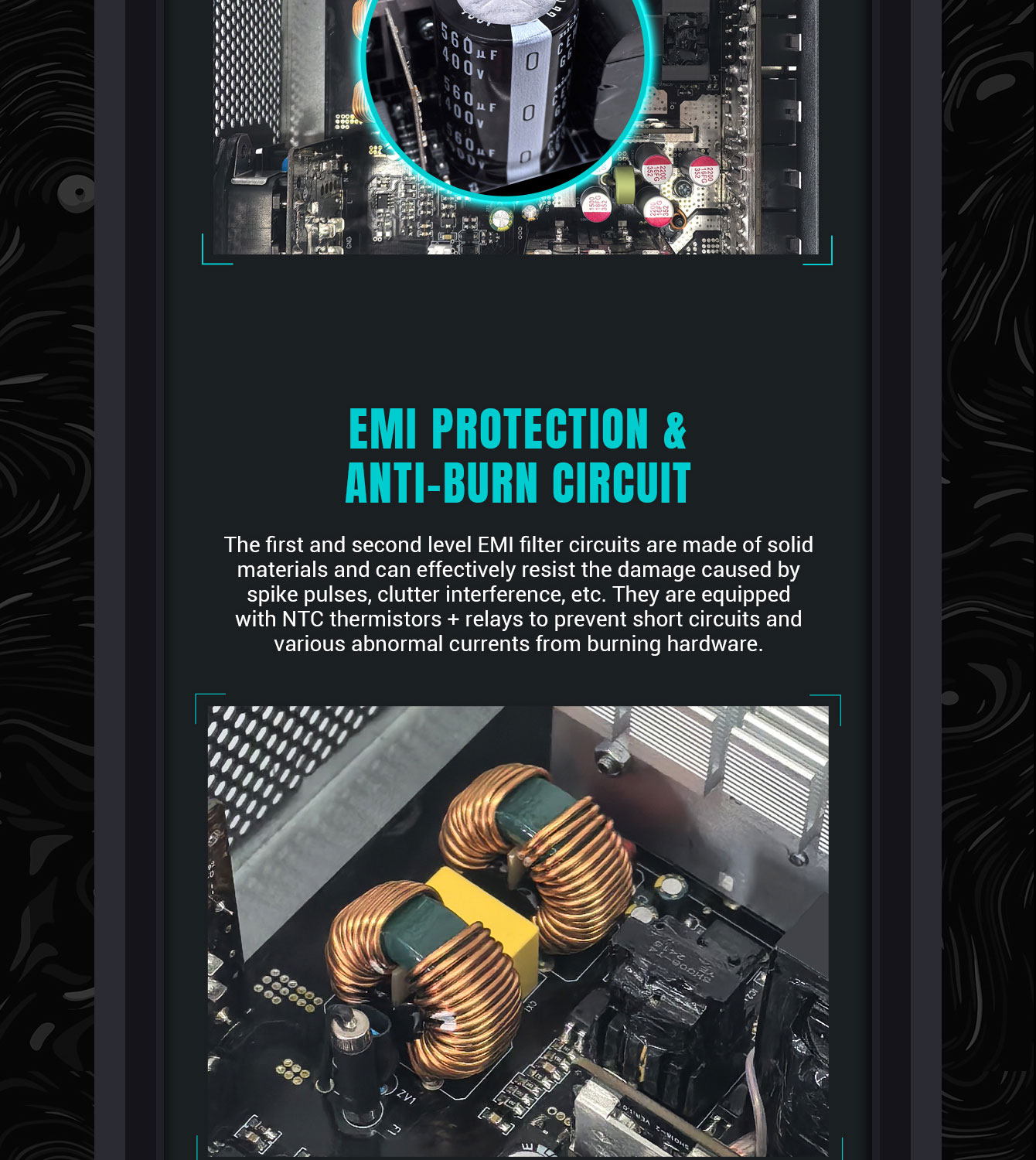

• High-Quality Components: Japanese bulk capacitor for durability and stability.
• Quiet Cooling: 140mm ultra-quiet fan with automatic temperature control.

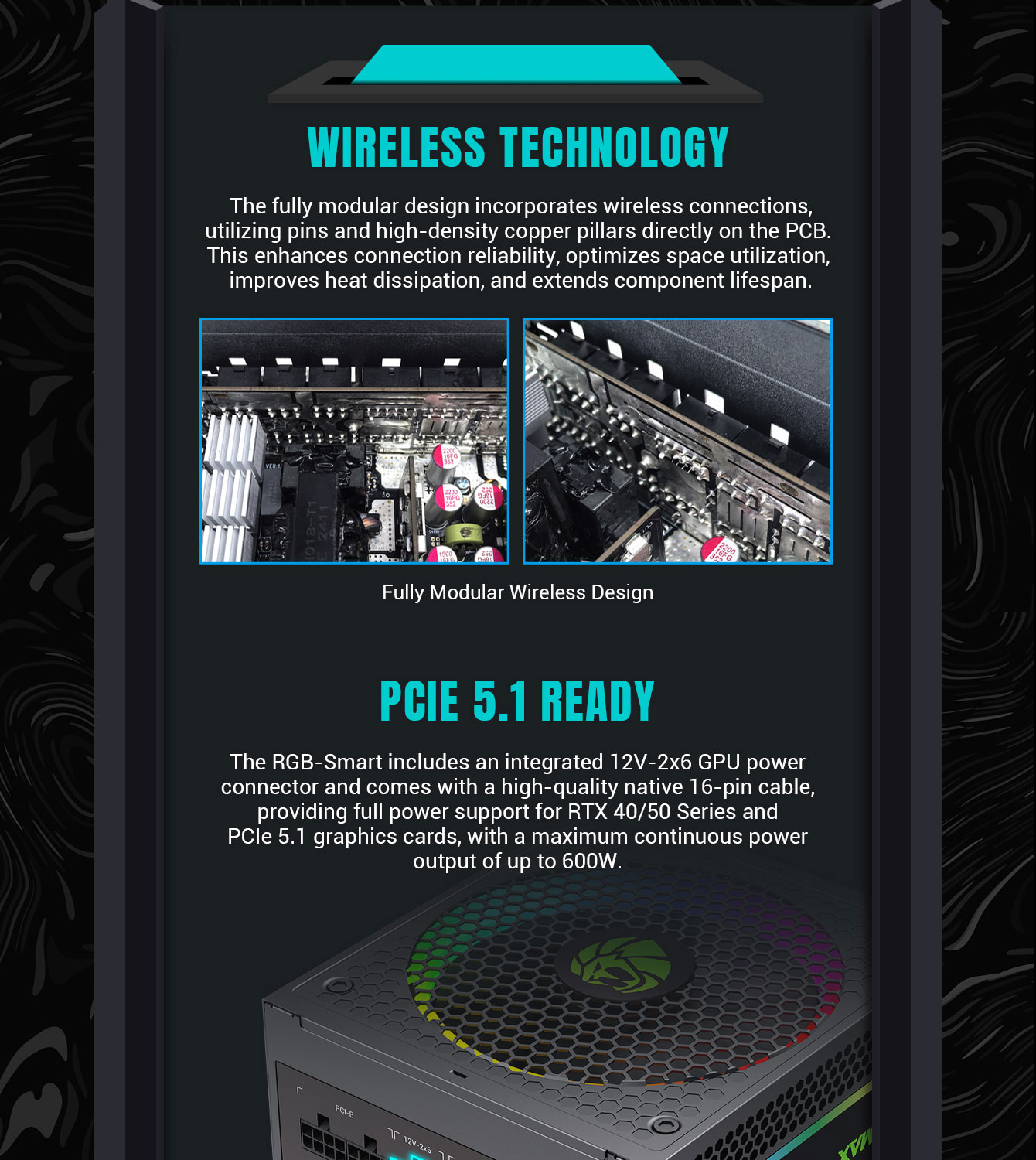

• Wireless Design: Wireless design for cleaner setup and better heat dissipation.
• Comprehensive Protection: OPP/OVP/UVP/SCP/OCP/SIP for stability and safety.
Product Technical Specifications

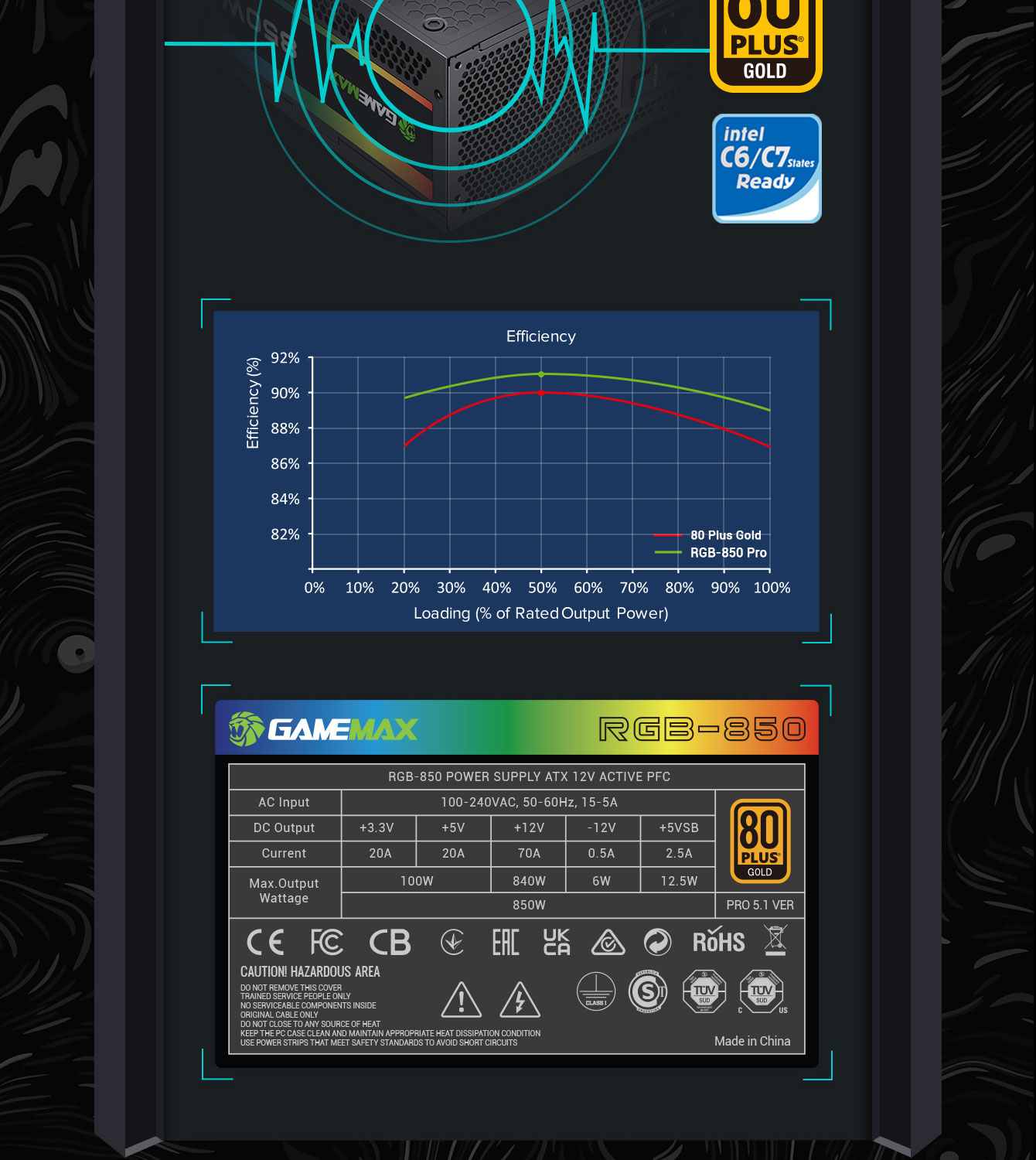

| 80PLUS | Cetificate | GOLD |
| Form Factor | Power Supply | Intel ATX3.0/3.1 PCIe5.0/5.1 |
| Dimensions | 170 mm (L) x 150 mm (W) x 86 mm (H) | |
| Fan Information | Fan Size | 140mm with ARGB LEDs |
| Fan Control | Temperature control | |
| Fan Bearing | Fluid Dynamic Bearing | |
| Life Expectancy | 50,000 hours | |

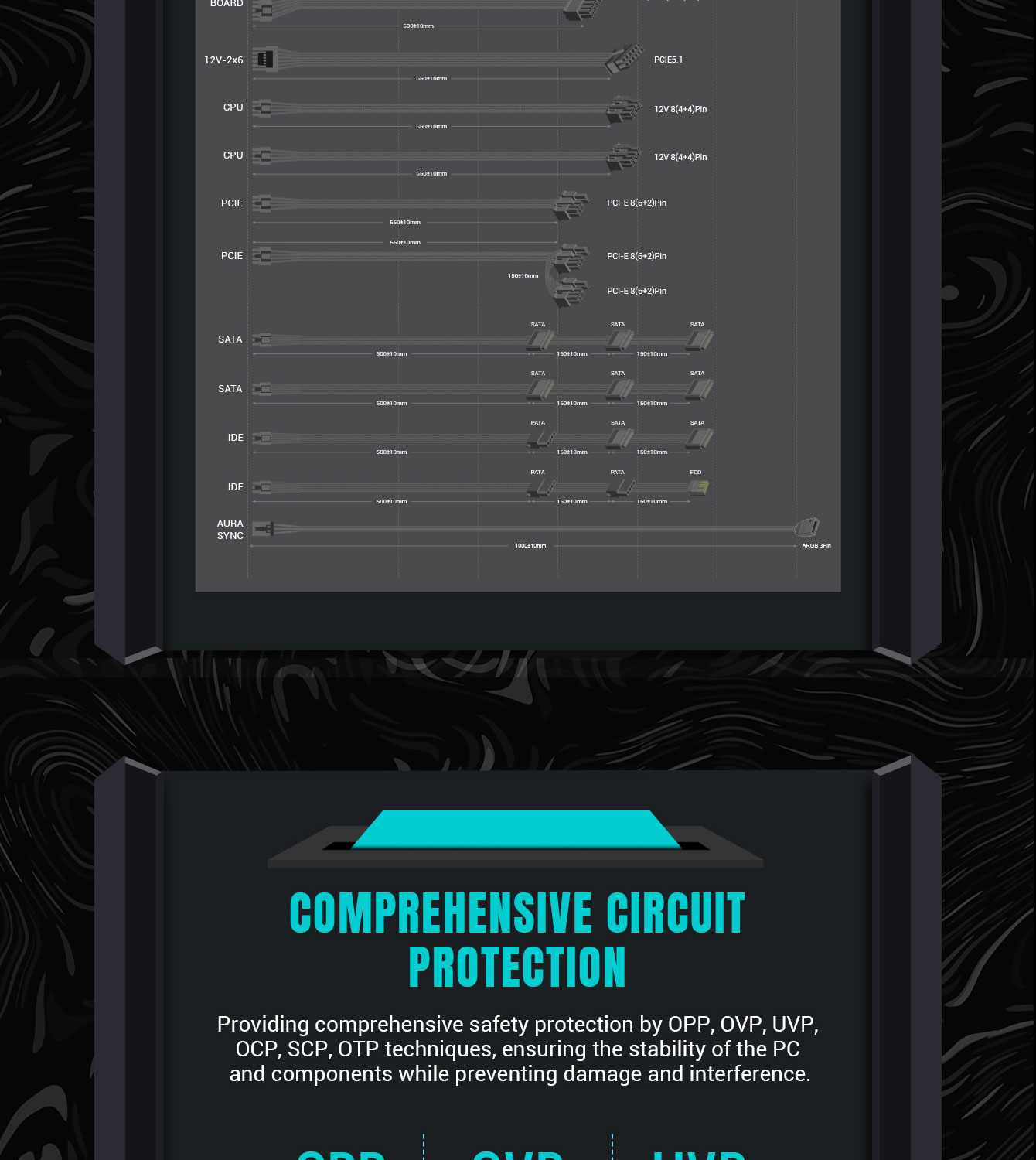

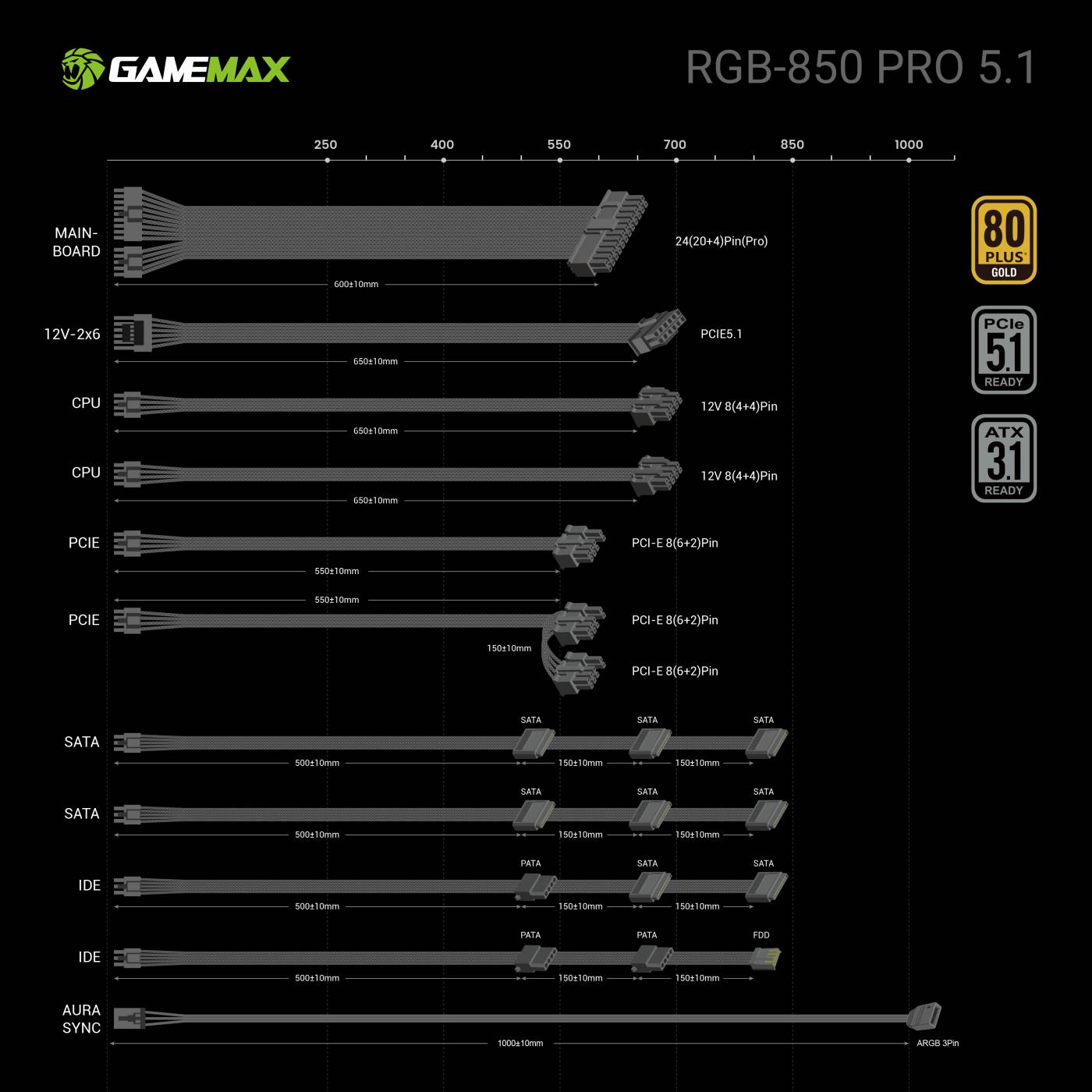

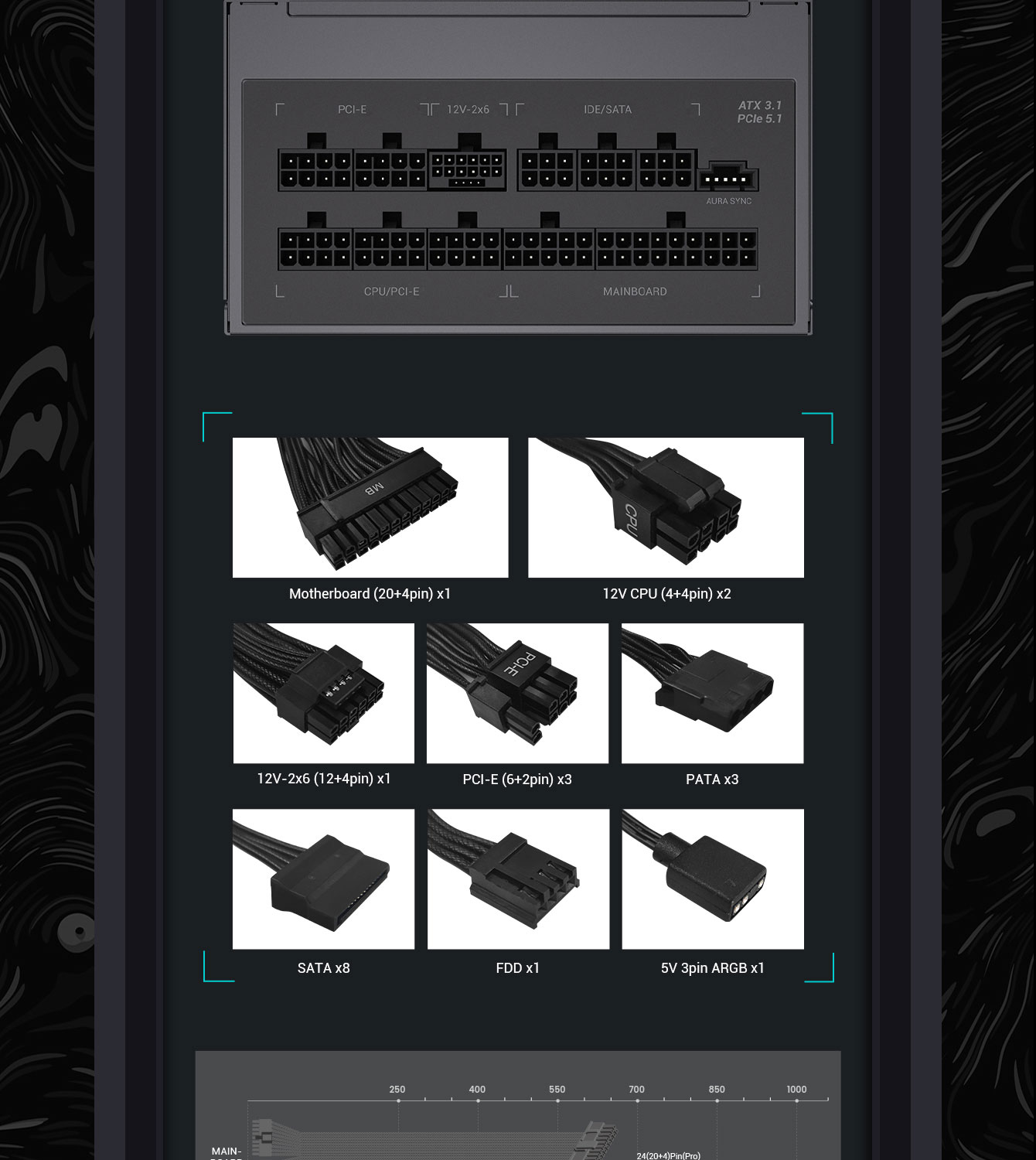

| Cable Information | Modularity | Fully Modular |
| Cable type | Flat black cables | |
| Electrical Features | Operating Temperature | 0-50 °C (derating from 100 % to 80 % from 40 °C to 50 °C) |
| MTBF | 100,000 Hours (@ 25 °C, Excl. fan) | |
| AC Input | Full Range | |
| Protection | OPP, OVP, UVP, OCP, OTP, SCP | |
| Safety Ceritificate | Safety and EMC | cTUVus, TUV, CB, CCC, EAC, CE |
| Environmental | Compliance | RoHS |

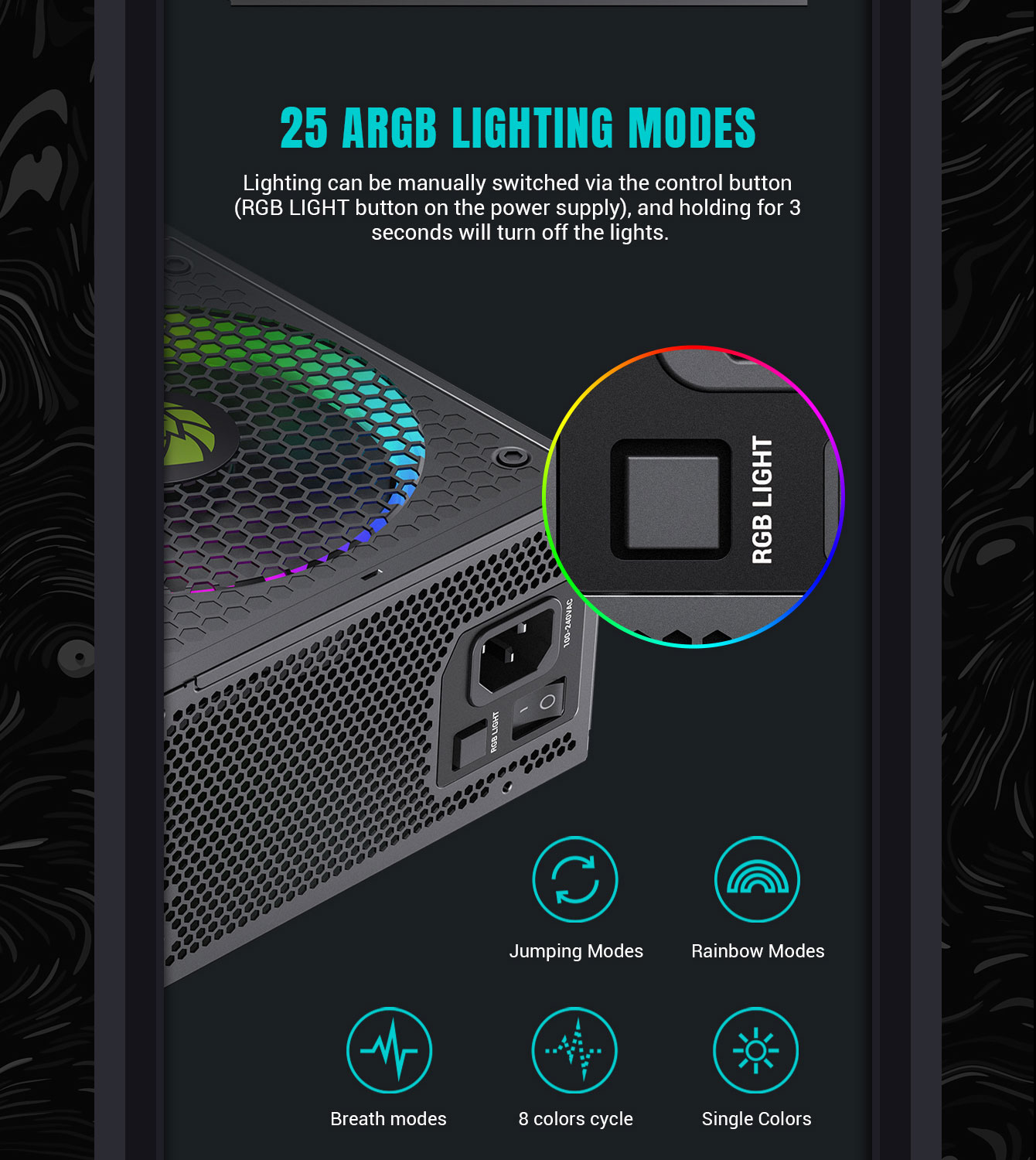

RGB Modes Operation Instructions:
| Key Function | RGB LED Status |
| Turn On, Entry last Mode | Keep the Save memory mode |
| Press RGB Switch | Select RGB light mode |
| Press and Hold in 3sec | OFF the RGB LED light |
| Press the Switch again | White light flashes once and Entry in o the last mode |
| Press Longer Don't release | Entry Self-Test mode(All led White Light） |
| Release after Press longer | Exit Self-Test mode, Entry Last memory mode |

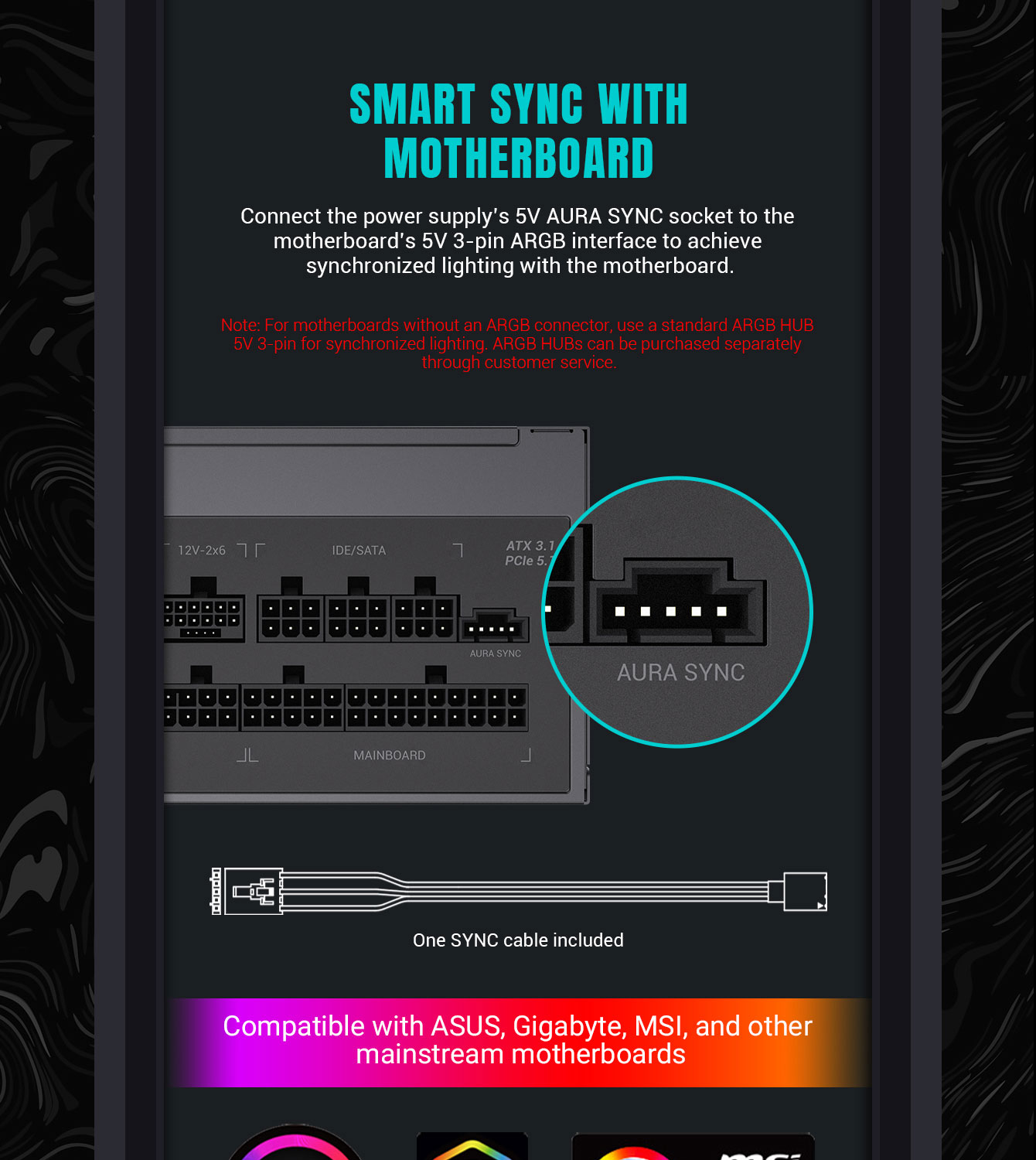

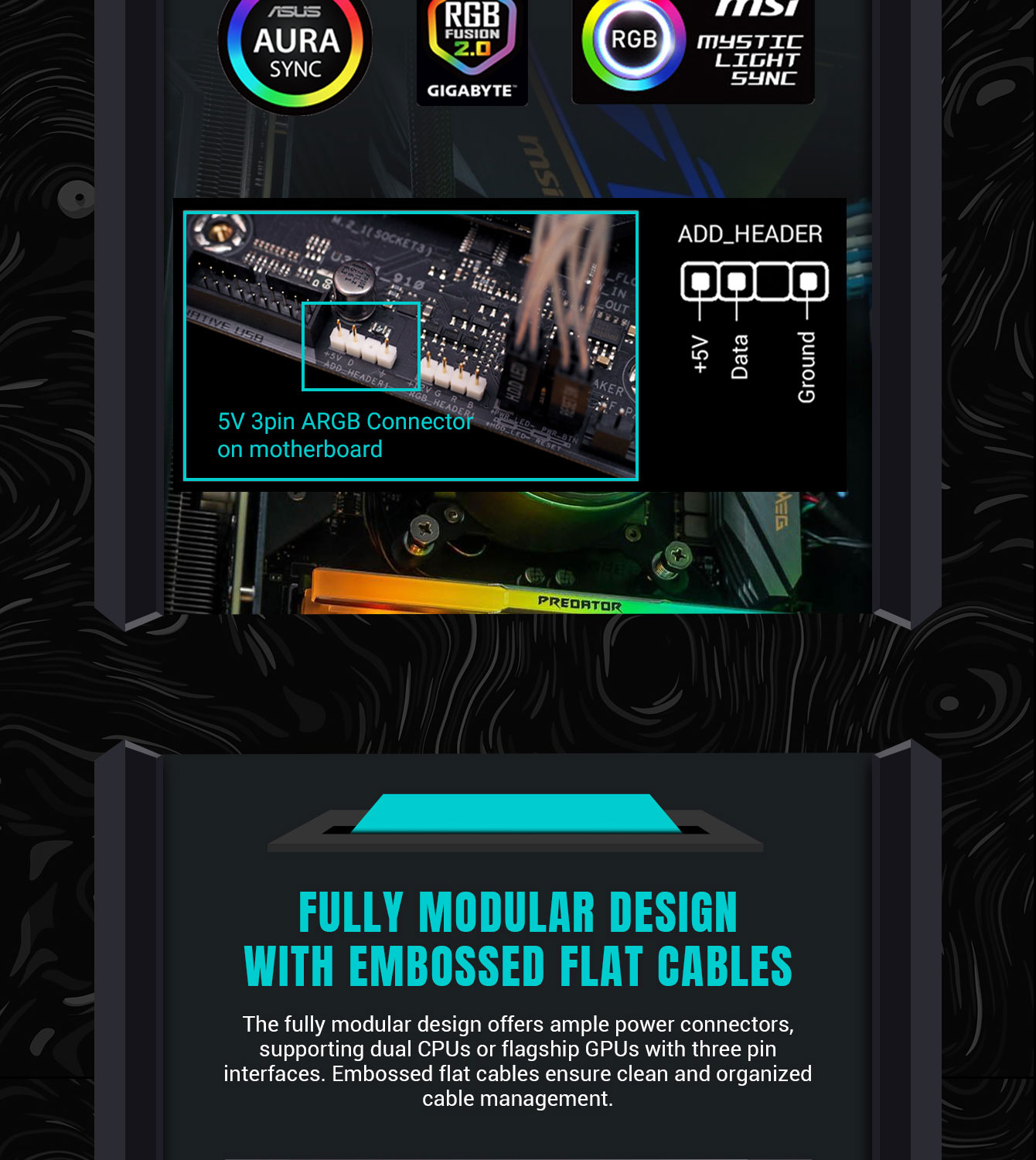

| Aura SYNC | Access external ARGB HUB or 5V 3pin signal from motherboard |
