GameMax RGB 1050G WH Fully Modular Power Supply

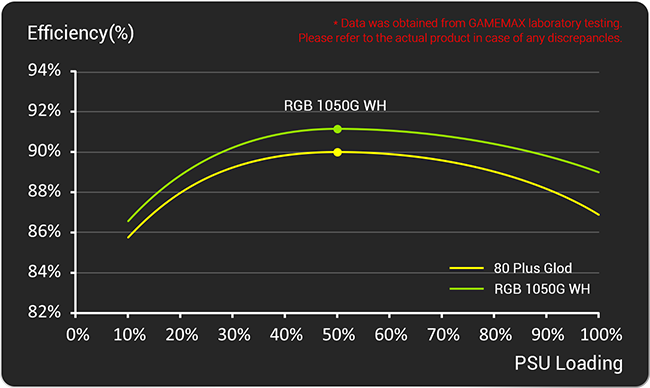

• 80+ Gold Certified Efficiency: Achieves 90% efficiency or higher under typical loads, ensuring lower power consumption, reduced noise, and cooler operation.
• 140mm ARGB Fan with Sync: Delivers vibrant lighting effects and supports synchronization with ASUS, GIGABYTE, MSI, and ASRock RGB motherboards for customizable illumination.
• Fully Modular Design: 100% free-cable internal PCB layout eliminates cable clutter for improved airflow and aesthetics.
• Enhanced Stability & Reliability: Powerful single +12V rail with high-quality Japanese capacitors ensures stable power delivery to graphics cards and PC components.
• Advanced Protection & Ultra-Quiet Operation: Includes OPP/OVP/UVP/SCP/OCP/SIP safeguards, paired with a whisper-quiet 140mm fan for optimal cooling and minimal noise.
Product Technical Specifications
| 80PLUS | Cetificate | GOLD |
| Form Factor | Power Supply | Intel ATX 12 V |
| Dimensions | 170 mm (L) x 150 mm (W) x 86 mm (H) | |
| Fan Information | Fan Size | 140mm with ARGB LEDs |
| Fan Control | Temperature control | |
| Fan Bearing | Hydraulic bearing | |
| Life Expectancy | 50,000 hours | |
| Cable Information | Modularity | Fully Modular |
| Cable type | Flat black cables | |
| Electrical Features | Operating Temperature | 0-50 掳C (derating from 100 % to 80 % from 40 掳C to 50 掳C) |
| MTBF | 100,000 Hours (@ 25 掳C, Excl. fan) | |
| AC Input | Full Range | |
| Protection | OPP, OVP, UVP, OCP, OTP, SCP | |
| Safety Ceritificate | Safety and EMC | cTUVus, TUV, CB, CCC, EAC, CE |
| Environmental | Compliance | RoHS |
RGB Modes Operation Instructions:
| Key Function | RGB LED Status |
| Turn On, Entry last Mode | Keep the Save memory mode |
| Press RGB Switch | Select RGB light mode |
| Press and Hold in 3sec | OFF the RGB LED light |
| Press the Switch again | White light flashes once and Entry in o the last mode |
| Press Longer Don't release | Entry Self-Test mode(All led White Light锛?/span> |
| Release after Press longer | Exit Self-Test mode, Entry Last memory mode |
|
Aura SYNC |
Access external ARGB HUB or 5V 3pin signal from motherboard |
