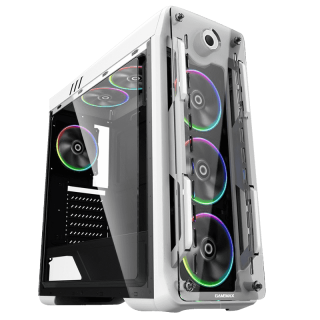

Optical G510 WT

GameMax Optical Case Included 4x ARGB rainbow fans and USB3.0 port, front with perfect design by soft and optical streamline appearance design which creates a high-end and elegant atmospheres.
Frameless full transparent acrylic side panels, which create a high transparency visual effect
and let the internal case rainbow fan lights and other optional accessories show out the shining color without reservation.

Color:

9510-白色详情英文版-_01.jpg9510-白色详情英文版-_02.jpg9510-白色详情英文版-_03.jpg9510-白色详情英文版-_04.jpg9510-白色详情英文版-_05.jpg9510-白色详情英文版-_06.jpg9510-白色详情英文版-_07.jpg9510-白色详情英文版-_08.jpg

Model    No.:Optical (Factory # G510 WHITE)
Type:ATX/MICRO ATX/ITX/MINI ITX
Front Panel:Plastic transprant finish,Rainbow LEDs fan by controller
Side   Panel:Full transparent panel
Top    Panel:Top metal panel with filter
Fan controller :x1 channel
Chassis:0.5mm , Black painting interior
Front USB Ports:USB2.0x 2  (included)
USB3.0x 1   (included)
Front Audio JacketsHD_Audio
PSU TypeATX Bottom loaded
Reserved Fan Ports:Front: 3x120mm Dual ring rainbow fan Included
Side:    Null
Rear:  1x 120mm Ring rainbow fan included
Top:    2x120mm fan position (Optional)
Water-Cooling System: Front: 120 or 240mm water cooling
Top: 120 or 240mm water cooling
Drive Bays 5.25'' exposed0
Drive Bay   3.5''   exposed0
Drive Bay   3.5''   hidden2
Drive Bay   2.5''   SSD2
PCI Expansion Slots:7
GPU card length<380mm<>
CPU cooler height<160mm<>
Chassis Size:400*185*470mm
Carton   Size:545*237*505mm


The Connection Demo:
