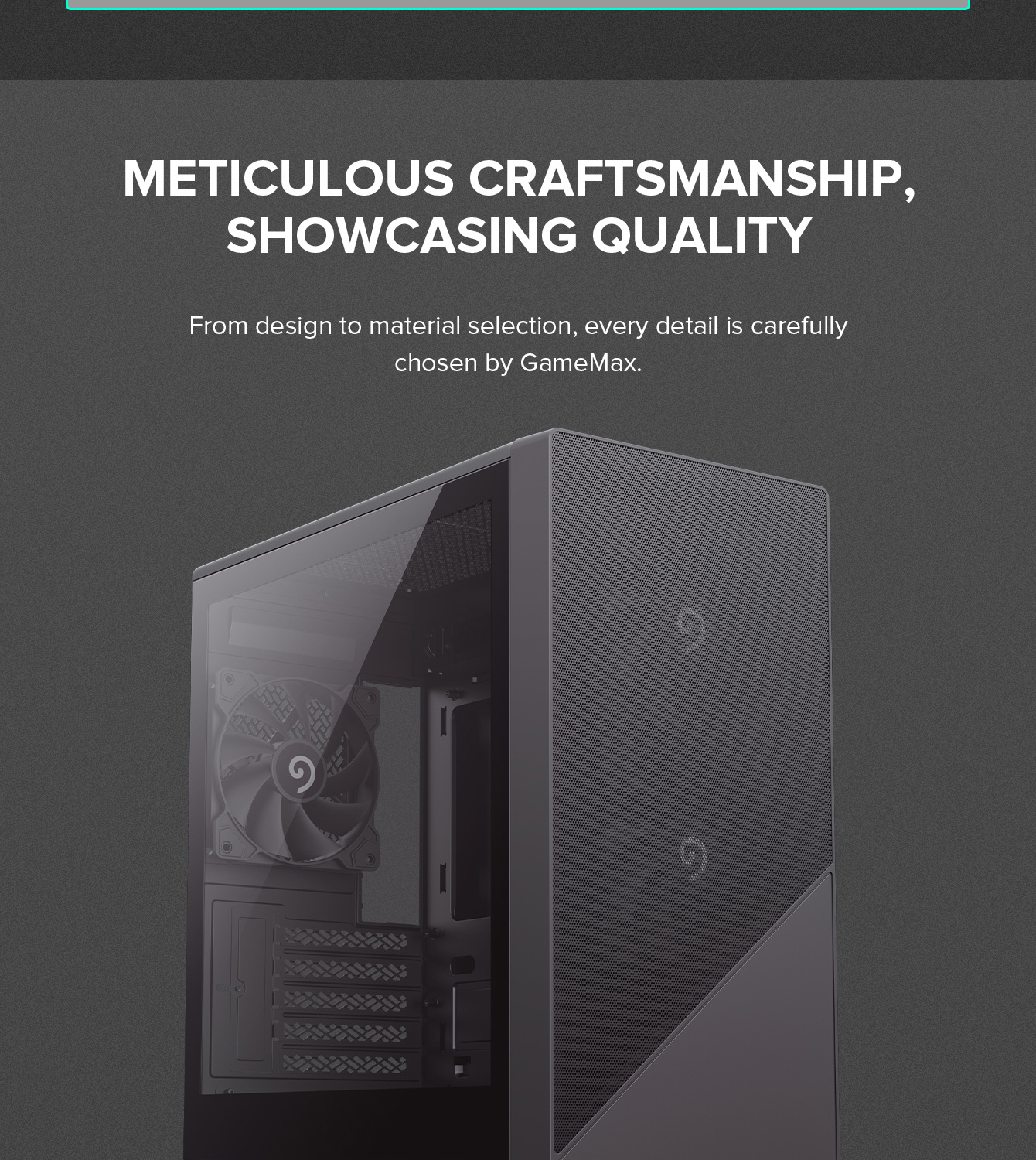

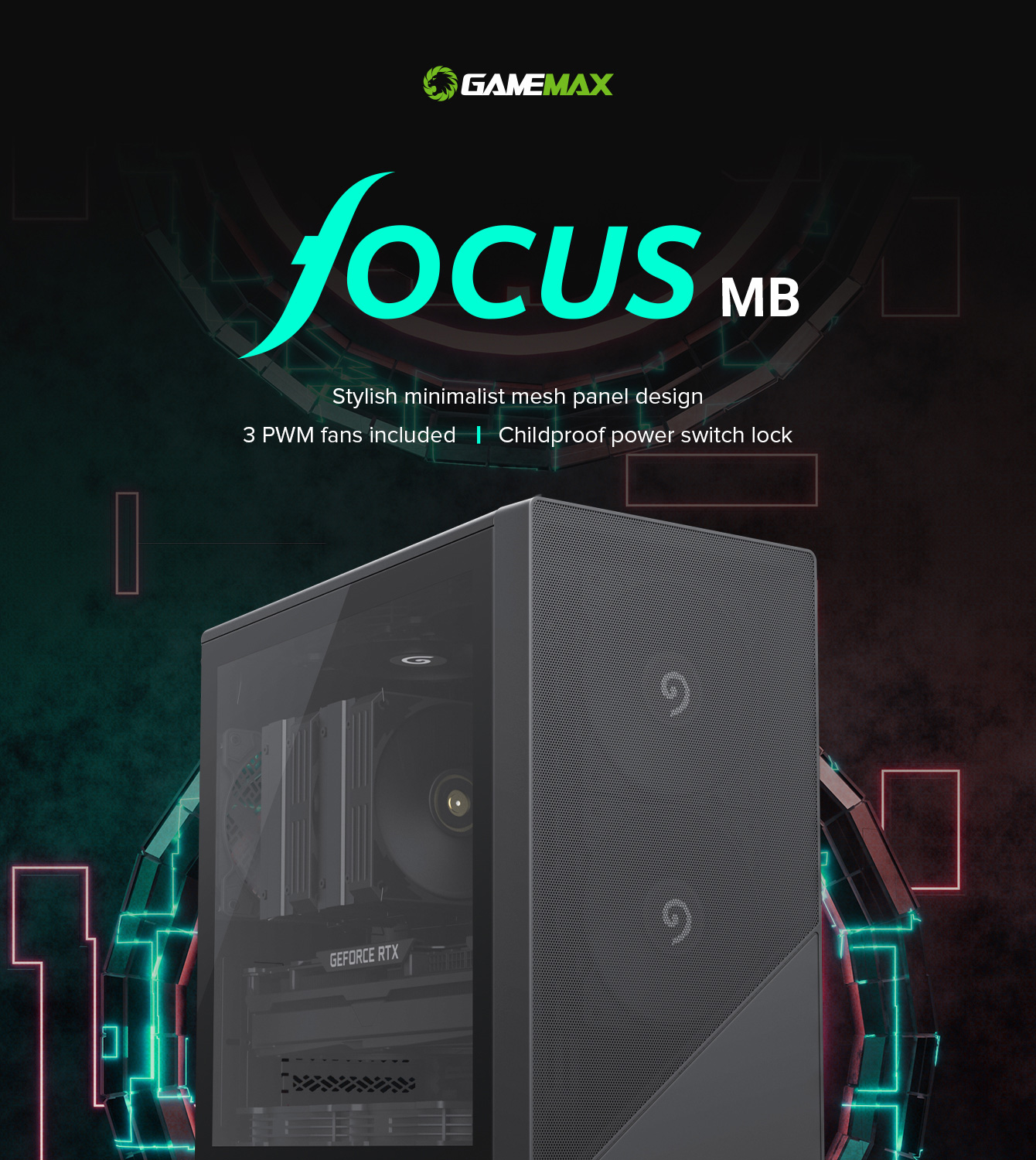

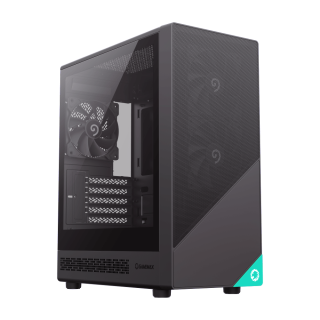

Focus MB Premium Micro ATX PC Case by GameMax - has a unique airflow path allowing for a wide range of compatibility and plenty of cooling options
• features full viewed designed to smoothly draw in the eyes of the viewer

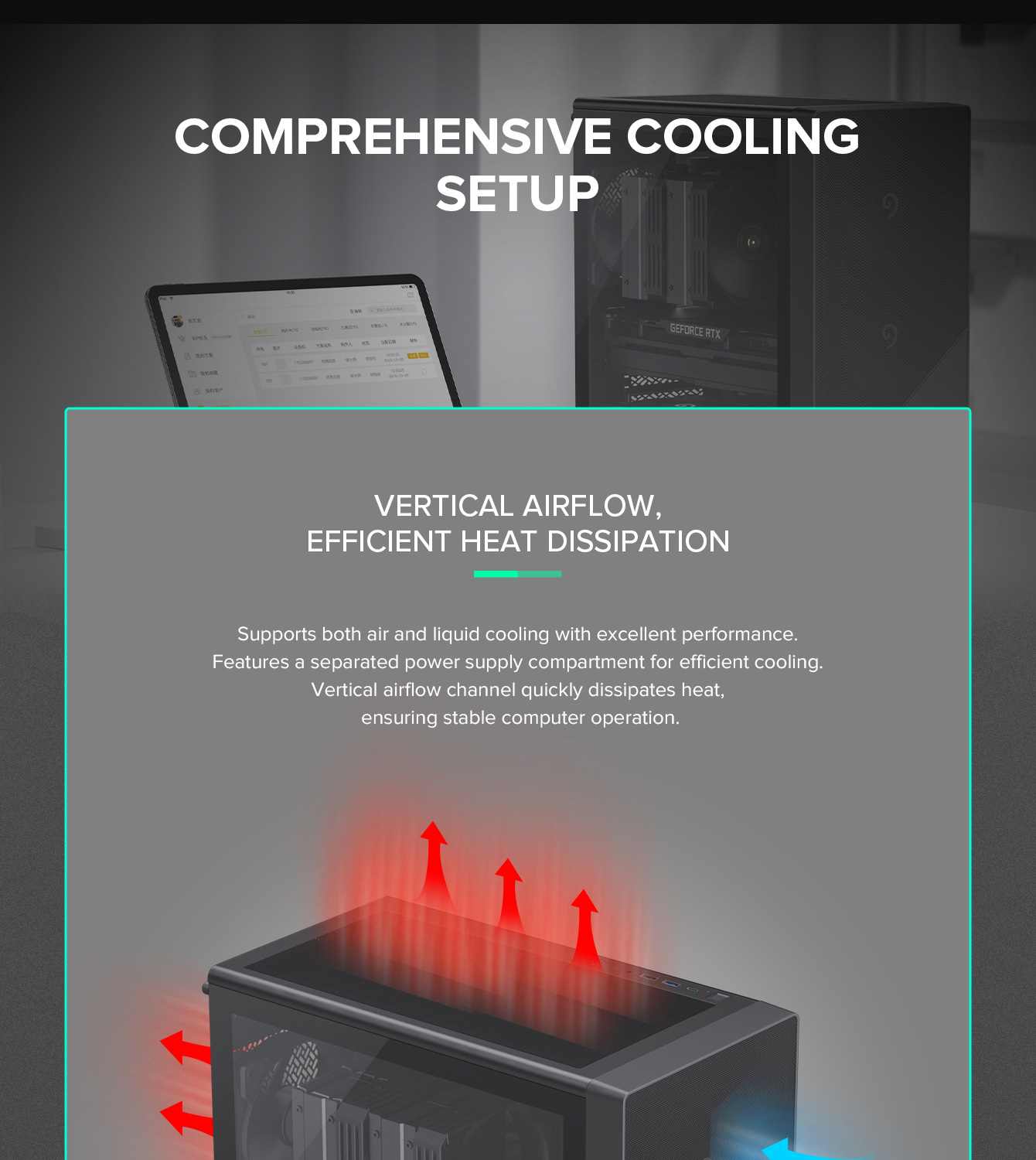

• Computer Case Focus on Cooling- pre-installed 2pcs black PWM fan in front in the front version, and one at the back of the case
• help with great ventilation, The fornt of the Focus MB supports up to a 360mm radiator

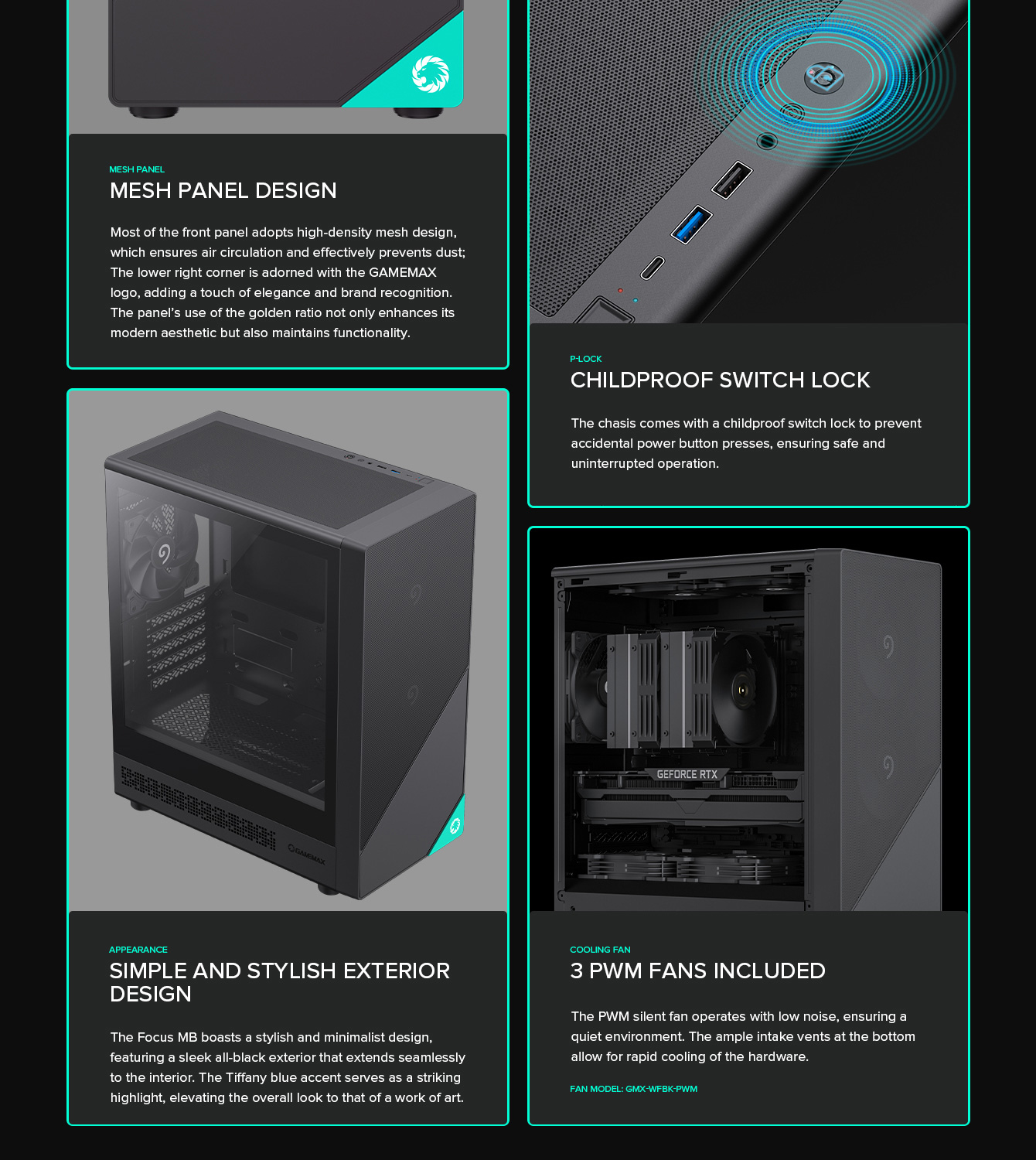

• Front panel featuring dense mesh formassive airflow and efficient dust prevention
• Rounded arcfront bezel design
• Standard childproof switch lock,Power switch childproof design, make it safer
• Generous space for high-end graphics cards and large coolers.Support M-ATX,ITX motherboards.
| Form Factor (Midi, Micro, Mini , Full) | MICRO | |
| Chassis | SPCC :0.4mm | |
| PSU Form Factor | Bottom/ATX | |
| M/B Form Factor | M-ATX、ITX | |
| Front Panel | ABS，MESH | |
| Top Panel | metal cover | |
| Branding | Box | |
| Unit | ||
| (Unit) Position | ||

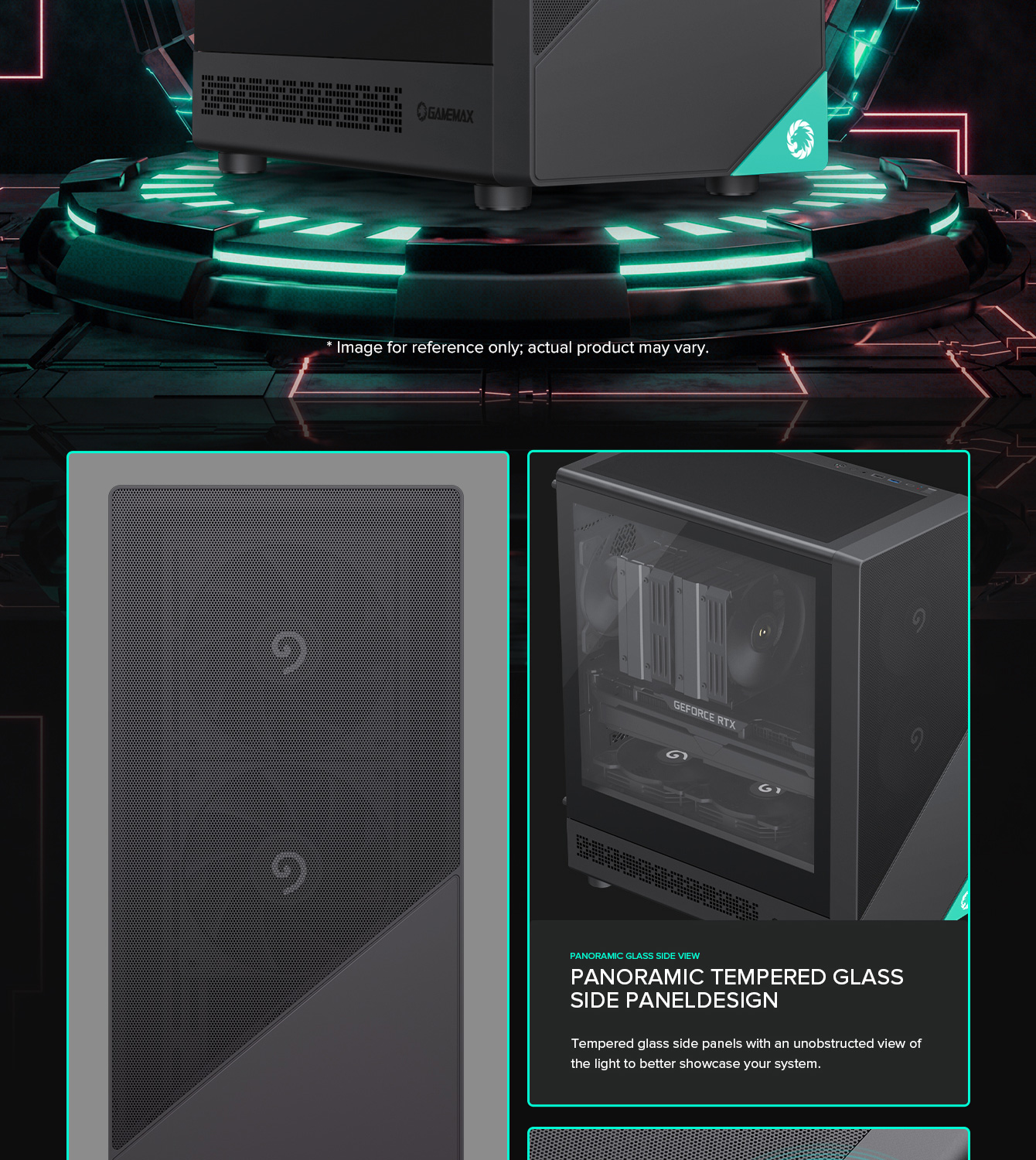

| Side Panel | Left | Tempered Glass |
| Right | metal cover | |
| External Drive Bay(s) | 5.25" (ODD) | *0 |
| 3.5" | *0 | |

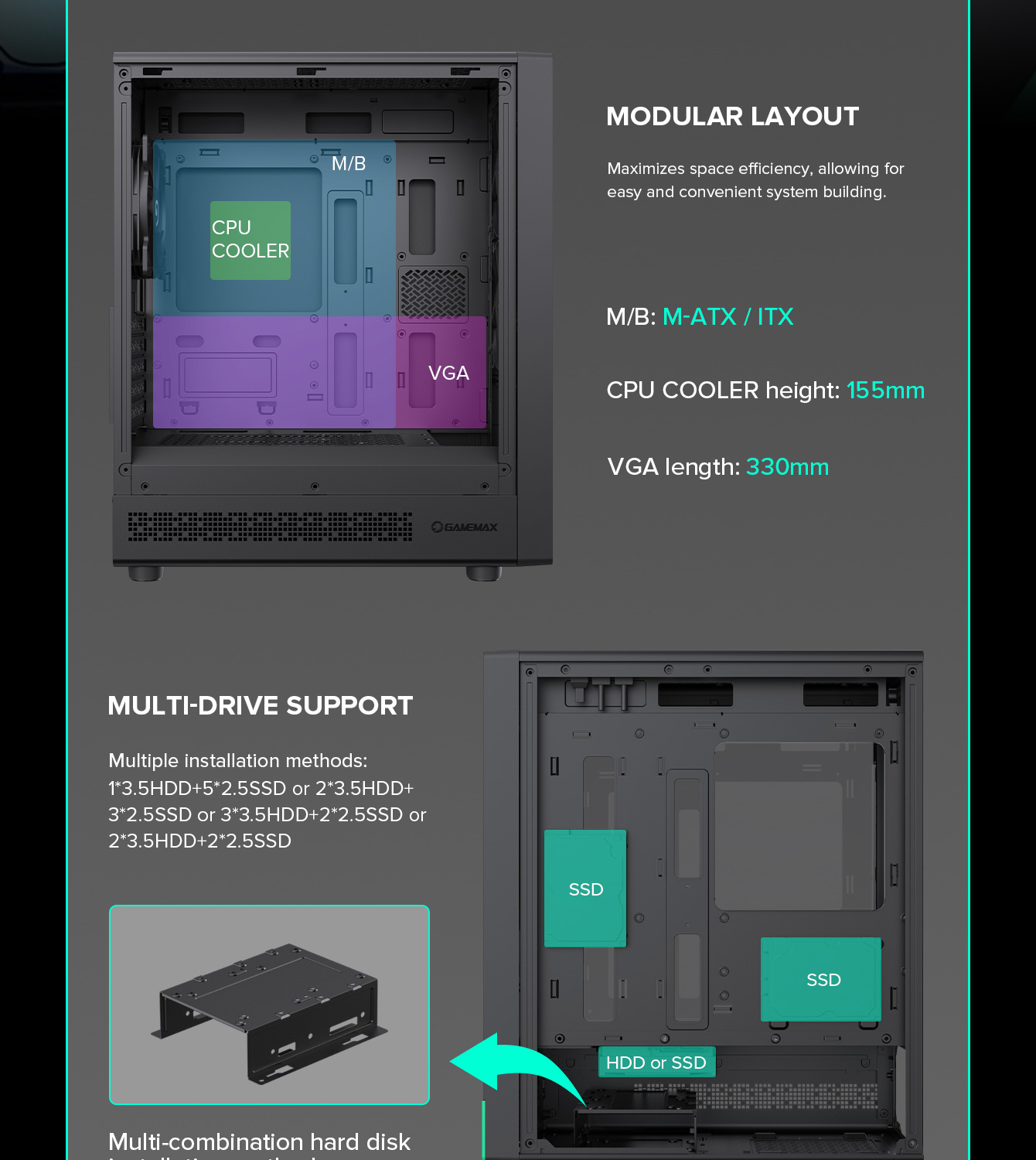

| Internal Drive Bay(s) | 3.5" (HDD) | 1*3.5HDD+5*2.5SSD or 2*3.5HDD+3*2.5SSD or 3*3.5HDD+2*2.5SSD or 2*3.5HDD+2*2.5SSD |
| 2.5" (SSD) | ||

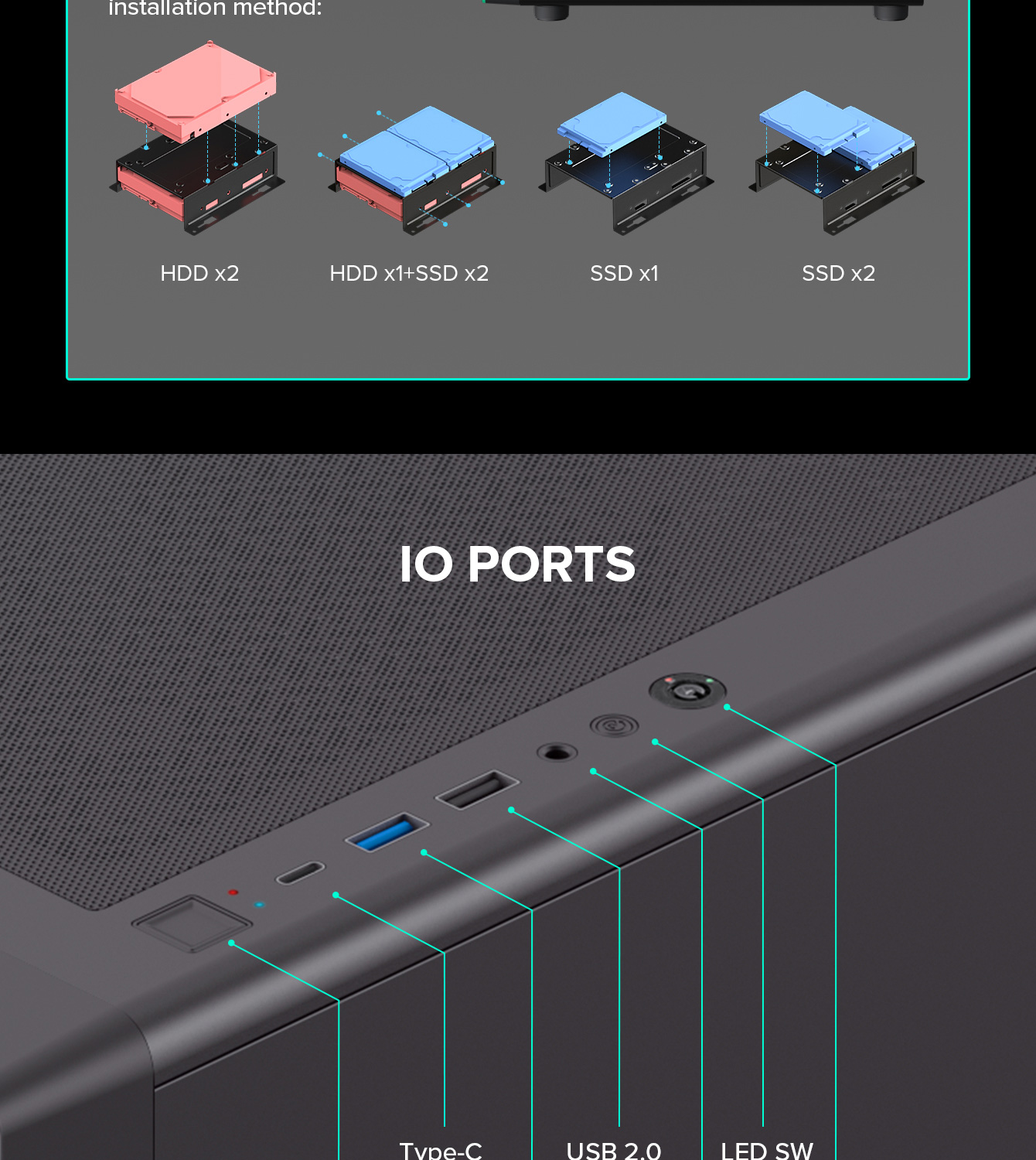

| I/O | Buttons | *2 |
| USB1.1 Port(s) | *0 | |
| USB2.0 Port(s) | *1 | |
| USB3.0 Port(s) | *1 | |
| USB3.1 Port(s) | *0 | |
| HD Audio Support | Combo Audio(CTIA)*1 | |
| Type C | *1(2.) | |
| P-Lock | *1 | |
| RGB Controller | *0 | |
| Controller max fans | *0 | |
| RGB Controller max. LED strips | *0 | |
| Remote (IR or RF) | *0 | |

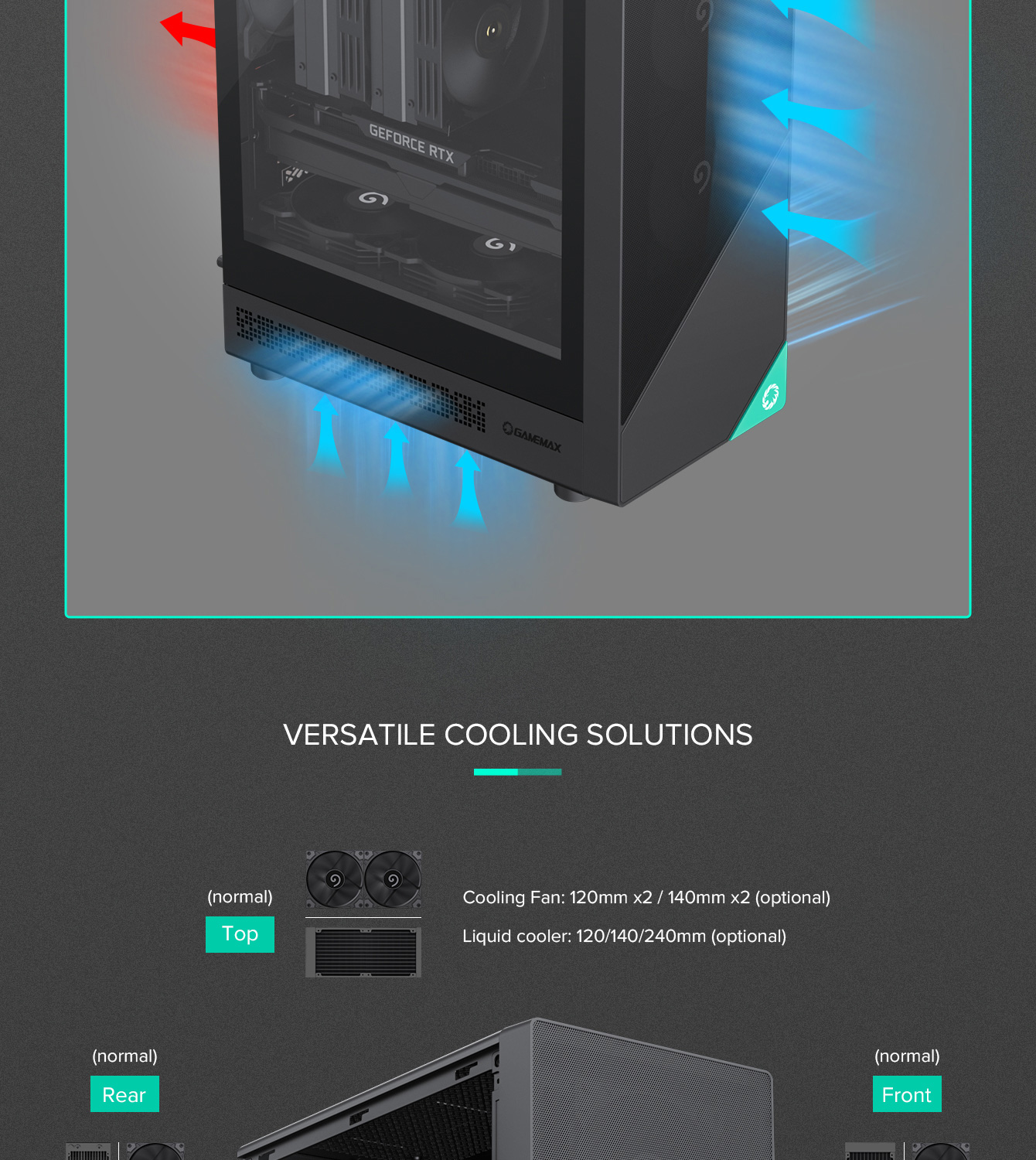

| Cooling Fan Support | Front | 2x120mm(Fan include),2x140mm(Fan optional) |
| Top | 2x120mm(Fan include) ,2x140mm (Fan optional) | |
| Rear | 1x120mm(Fan include) | |
| Left Side | 0 | |
| PSU Cover | 2x120mm (Fan optional) | |
| Water Cooling Support (Radiator Size) | Front | 120mm, 140mm,240mm,280mm.360mm |
| Top | 120mm, 140mm,240mm | |
| Rear | 120mm*1 | |

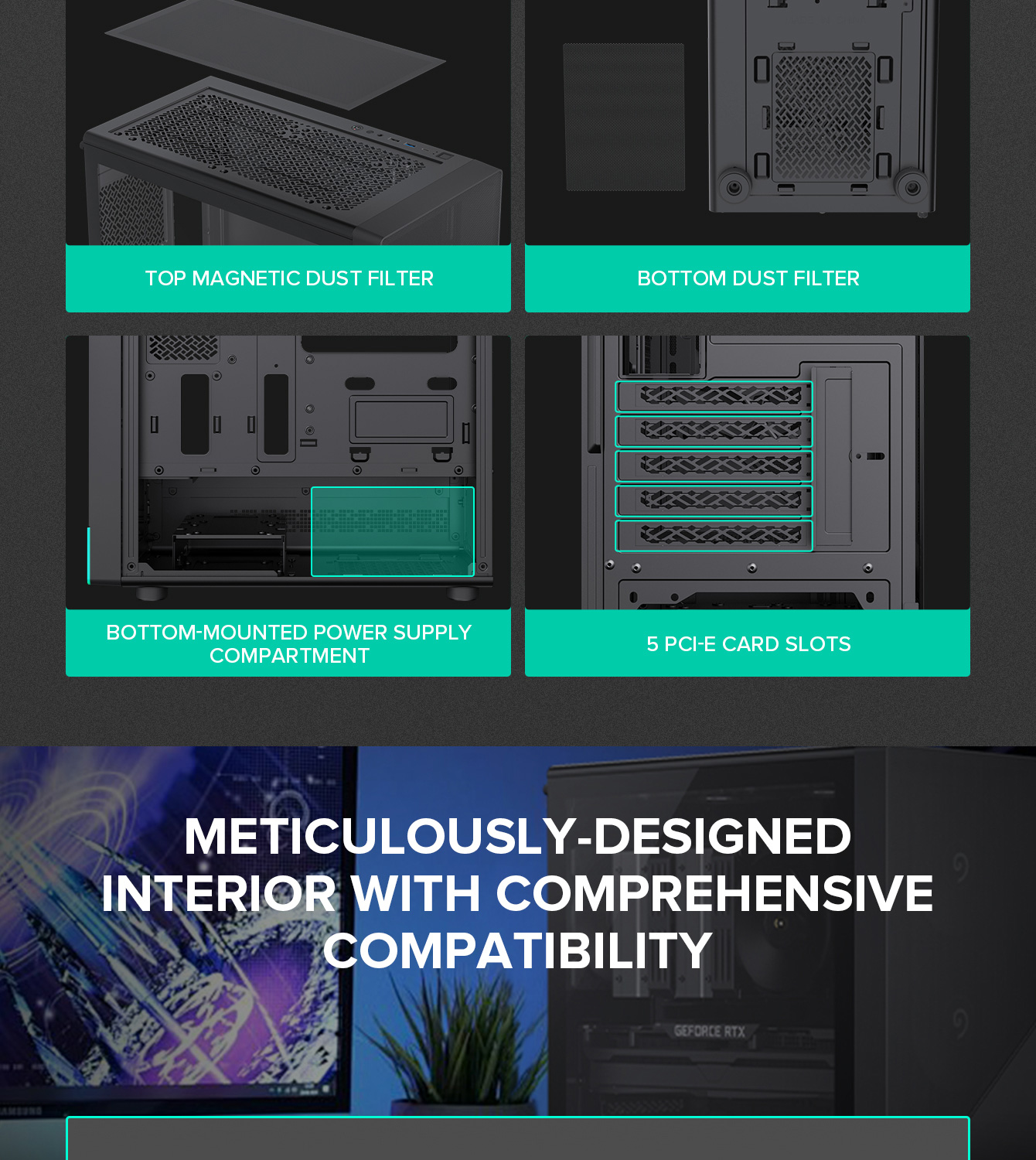

| Dust Cover | Bottom and top cover with dust filter | |
| Slots | *5 | |
| Carton & Logo | GAMEMAX | |

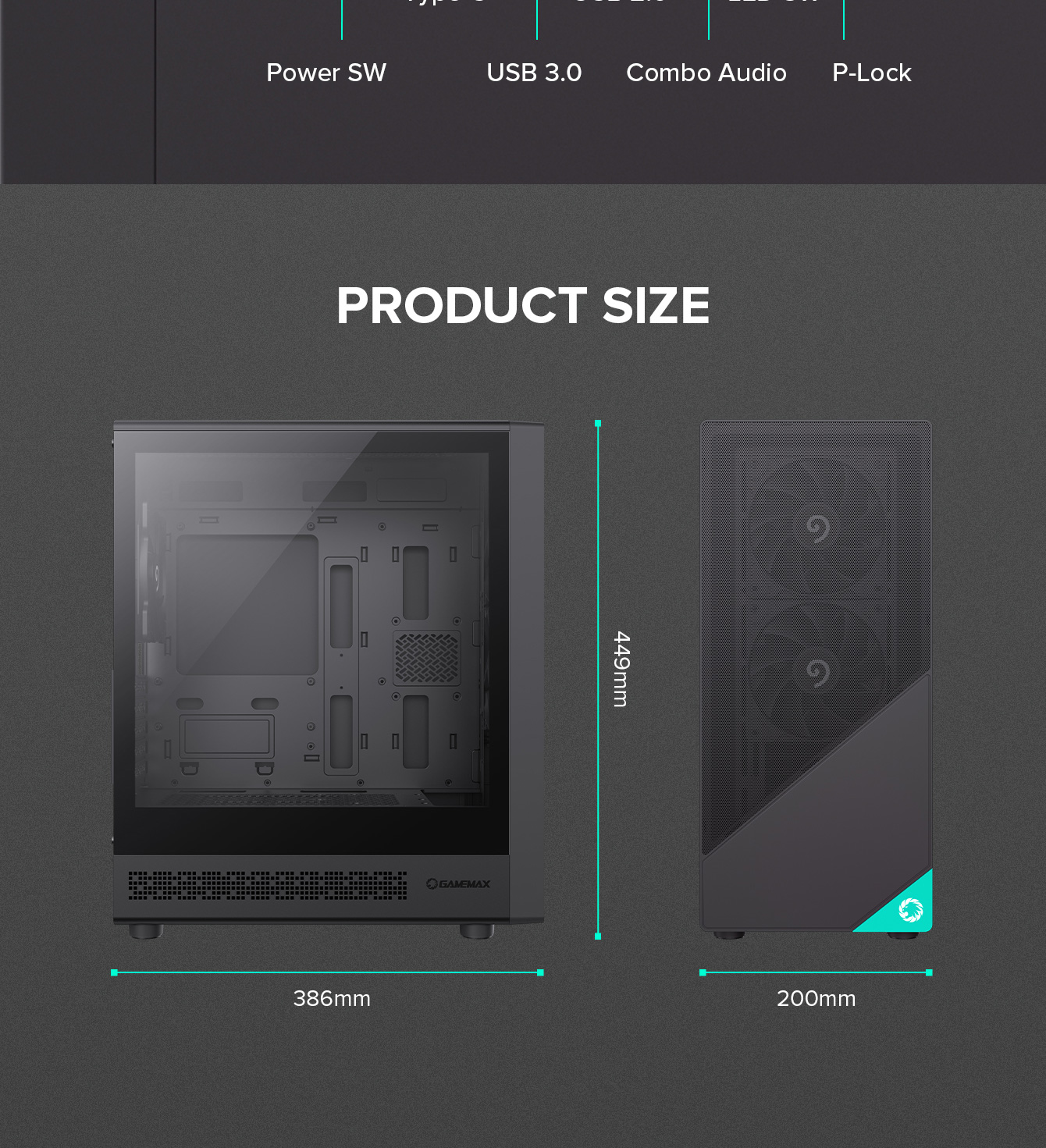

| Dimensions | Chassis | (L)340*(W)200*(H)436mm |
| Full Case (inc Fascia) | (L)386*(W)205*(H)449mm | |
| Carton | (L)486*(W)255*(H)433mm | |
| Net Weight (Kg) | 3.3kgs | |
| Gross Weight (Kg) | 4.1kgs | |
| VGA Card Length | up to 330mm | |
| CPU Cooler Height | 155mm | |
| Cable Management Depth | 19mm | |
