As high-performance GPUs continue to grow in size and weight, the vertical GPU bracket has emerged as an essential component for premium PC builds. Beyond solving issues like GPU sag and PCIe slot strain, it optimizes case airflow for better cooling and adds an industrial aesthetic to custom builds. This article explores the core value of vertical GPU brackets and key buying considerations, using the GameMax GPU-192 BK as a prime example.
Modern flagship GPUs (e.g., NVIDIA RTX 40-series, AMD RX 7000-series) often exceed 350mm in length and 1.5kg in weight, exposing flaws in traditional horizontal mounting:
Sag and Slot Damage: Prolonged gravity causes PCB bending, leading to poor slot contact or solder joint cracks.
Thermal Bottlenecks: Horizontal mounting traps hot air beneath the GPU, especially in compact cases, where core temperatures can spike due to stagnant airflow.
Vertical brackets install GPUs at a 90° angle, relieving PCIe slot stress while freeing up mid-case space. This aligns GPU fans with side-panel vents, reducing core temperatures by 3–5°C through improved airflow.

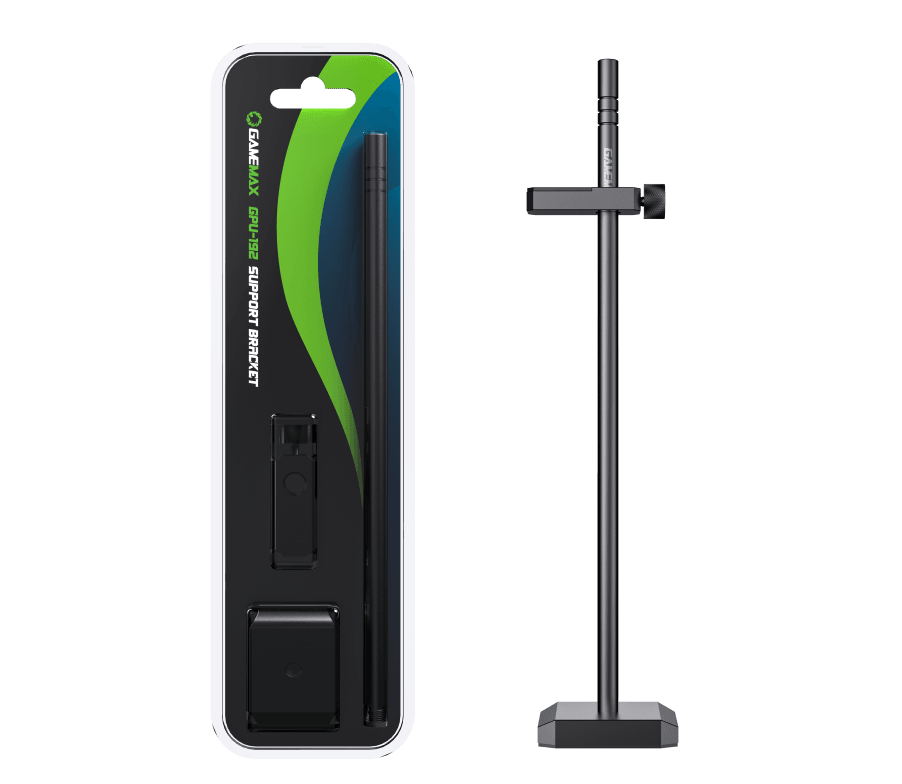

The GPU-192 BK stands out for its industrial-grade durability and flexible compatibility, addressing user pain points with precision:
Ditching cheap ABS plastic, the GPU-192 BK uses an aluminum-magnesium alloy frame, anodized and sandblasted for a HV 300+ surface hardness—5x more corrosion-resistant than standard metals. The hidden magnetic base, CNC-machined for smooth edges, features a 网状 rubber pad (mesh rubber pad) to secure onto metal cases without scratches, showcasing meticulous design.
The sliding support module offers 192mm of vertical adjustment, adapting to ITX mini-cases and ATX full-towers alike. It supports dual-slot compact GPUs (e.g., RTX 4060) and triple-slot giants (e.g., RTX 4090) by targeting the midpoint of overhanging PCB sections. Tested to withstand 5kg+ vertical load, it far exceeds the weight of mainstream GPUs.
The minimalist profile—black anodized finish with silver sandblasted accents—complements both RGB-lit and stealthy builds. Hidden rubber pads and magnetic components ensure a clean look, eliminating the cheap plastic aesthetic and elevating the visual appeal of high-end setups.
When selecting a bracket, prioritize these criteria inspired by the GPU-192 BK:
Material & Load Capacity: Opt for full-metal (aluminum/steel) structures with ≥3kg load-bearing to avoid plastic fatigue and breakage.
Adjustment Range: Ensure height adjustment covers your GPU’s length (e.g., 200mm+ for 300mm+ GPUs).
Case Compatibility: Verify support for ATX/MATX/ITX form factors, especially in cases with long power supplies (e.g., bottom-mounted PSUs).
Installation Method: Choose magnetic (for metal cases) for ease or screw-mount (for non-magnetic surfaces) for stability, based on your case material.
Design Details: Rubber anti-slip pads, rounded edges, and anti-oxidation coatings enhance usability and longevity.
Flagship GPU Owners: Essential for 30cm+, triple-slot cards (RTX 4080/4090, RX 7900 XT) to prevent sagging.
Small-Case Builders: ITX/MATX cases benefit from freed space, reducing airflow conflicts between CPU coolers and GPUs.
Aesthetic Enthusiasts: Vertical mounting showcases GPU PCBs or backplates, enhancing the visual appeal of side-panel window builds.
Long-Term Users: Protect against hardware damage over 5–10+ years of use, extending component lifespan.
Locate the Support Point: After inserting the GPU, mark the midpoint of its overhanging tail as the target height.
Fix the Base: Attach the bracket’s magnetic/screw base to a flat metal surface near the GPU (e.g., case floor or HDD mount), ensuring vertical alignment with the GPU’s center of gravity.
Adjust and Lock: Slide the support module until its top rubber pad gently presses the GPU’s PCB—avoid over-tightening to prevent bending—and secure in place.
The GameMax GPU-192 BK symbolizes the evolution of vertical GPU brackets from niche solutions to mainstream necessities. Its all-metal build, adaptive design, and sleek aesthetics address both functional needs (support, cooling) and aesthetic aspirations, making it a cornerstone of durable, high-performance builds.

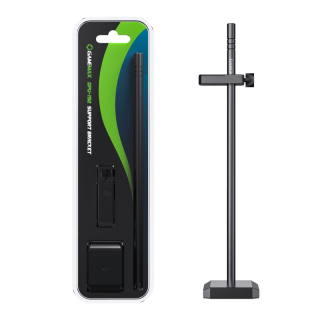

GameMax GPU-192, 192mm Aluminum GPU Support, Graphics Video Card Bracket for Desktop PC Computer Case
• Using all-aluminum metal material instead of plastic material, the portal avoids the aging and vulnerability of plastic material, and can be used as a replacement for long-term components.
• The supporting rod is polished by all-anode process, which can maintain the surface texture of the product and keep the color from fading for a long time.
• The hidden magnet base is processed by CNC technology,the edge is smooth, the post-treatment of sand blasting anode process, and the metal texture is perfectly embodied in the product.
• The support module can slide up and down to adjust the position
• It can be compatible with various chassis structures of traditional ATX, MATX, ITX and long power supply warehouse to satisfy all kinds of hosts of users.
• Concealed in the bottom of the reticulated rubber pad can facilitate the installation of users and firmly stand in the chassis, without scratching the chassis.
