In the wave of PC hardware personalization and performance pursuit, the installation method of graphics cards—core components of any rig—is shifting from the traditional "horizontal lying" to a "vertical standing" posture. The Vertical GPU Mount Kit represents more than just a revolution in chassis internal layout; it’s an all-around solution balancing aesthetics, cooling efficiency, and hardware protection. Take the GameMax VGPUKIT as an example: through precise design and practical functions, such kits redefine the installation paradigm for high-end GPUs, becoming a must-have for DIY enthusiasts and hardware aficionados.
In traditional horizontal installation, the GPU relies on the PCIe slot for support. Over time, its weight can cause the PCB to bend or even loosen the slot. Vertical mount kits, however, use an independent bracket system to fix the GPU vertically on the chassis side panel, offering three core benefits:
Visual Revolution: Showcasing GPU Aesthetics
The RGB lighting effects, metal backplates, and turbine fans of high-end GPUs are fully displayed from a vertical perspective. Paired with a side-panel tempered glass chassis, this creates an immersive lighting system. The GameMax VGPUKIT’s 支架 (bracket) features a sleek black metal finish that seamlessly integrates with the angular design of modern GPUs, making it a focal point inside the case.
Optimized Cooling: Unleashing Performance Potential
The vertical layout allows the GPU fan to draw air directly from outside the chassis, avoiding hot air recirculation with the CPU cooler. The increased spacing between the GPU and motherboard also enhances air circulation, reducing core temperatures by 5–10°C in real-world tests—critical for high-frequency RTX 40-series GPUs.
Hardware Protection: Extending Lifespan
The kit’s 2x Up/Down Adjustable Holders provide dual-point support, evenly distributing the GPU’s weight to eliminate the risk of PCIe slot overload and extend hardware longevity.
As a leading market solution, the GameMax VGPUKIT prioritizes "compatibility" and "reliability" to meet diverse PC-building needs:
Hardware Configuration: Ready for Excellence
The kit includes a 220mm flat PCIe 16x extension cable with high-quality gold-plated connectors and EMI shielding, supporting PCIe 4.0 with stable 16GB/s data transfer. It is compatible with full-size GPUs from RTX 30/40-series, AMD 7000-series, and more (supporting dual/triple-slot thicknesses).
Installation Adaptability: Flexibility Meets Modularity
It works with chassis featuring "OPEN" PCI slot designs (non-enclosed PCI brackets), such as the GameMax X8 and Huntkey GX580H. For non-standard cases, minor side-panel modifications (with included installation schematics) are required, fitting over 90% of mid-tower/full-tower chassis.
Detail-Oriented Design: Protection for Transport and Daily Use
The adjustable holders allow 0–3cm height adjustment to accommodate different thicknesses of liquid-cooling radiators or air-cooling modules. Anti-vibration silicone pads at the bracket base reduce noise, while tightened holders during transport prevent GPU displacement, ideal for both daily use and mobility.
When selecting from the plethora of products, focus on three key factors:
Compatibility First
Ensure support for at least PCIe 3.0, an optimal cable length (200–300mm to avoid signal loss), and chassis type (open/modification-required).
Material and Sturdiness
Metal brackets (aluminum/steel) outperform plastic in load-bearing capacity (should support >1.5kg for heavy GPUs like the 3090 Ti). The extension cable must have EMI shielding to prevent signal interference.
Installation Ease
Opt for kits with detailed manuals and tools; some premium models offer screwless quick-release designs to simplify setup.
As manufacturers like Lian Li and Cooler Master release chassis natively supporting vertical GPU mounting, this design is transitioning from a "modder’s hack" to an "OEM standard." Vertical mount kits serve as versatile bridge solutions, enabling older cases to enjoy the visual and cooling benefits of modern GPUs. Market data shows a 45% YoY growth in global vertical GPU bracket sales in 2024, reflecting users’ dual pursuit of personalization and performance.
A vertical GPU mount kit is more than a hardware accessory; it’s a microcosm of PC culture evolving from "performance-only" to "beauty-meets-power." Whether you’re an overclocker chasing ultimate cooling or a modder obsessed with lighting art, products like the GameMax VGPUKIT enable every GPU to shine in its best form through universal design and reliability. Choosing vertical installation is a statement of respect for hardware and a pursuit of PC-building art—let your GPU stand tall at the pinnacle.
Upgrade your chassis layout today! Unlock your GPU’s ultimate form with a vertical mount kit, and turn every boot-up into a dual feast of visuals and performance!

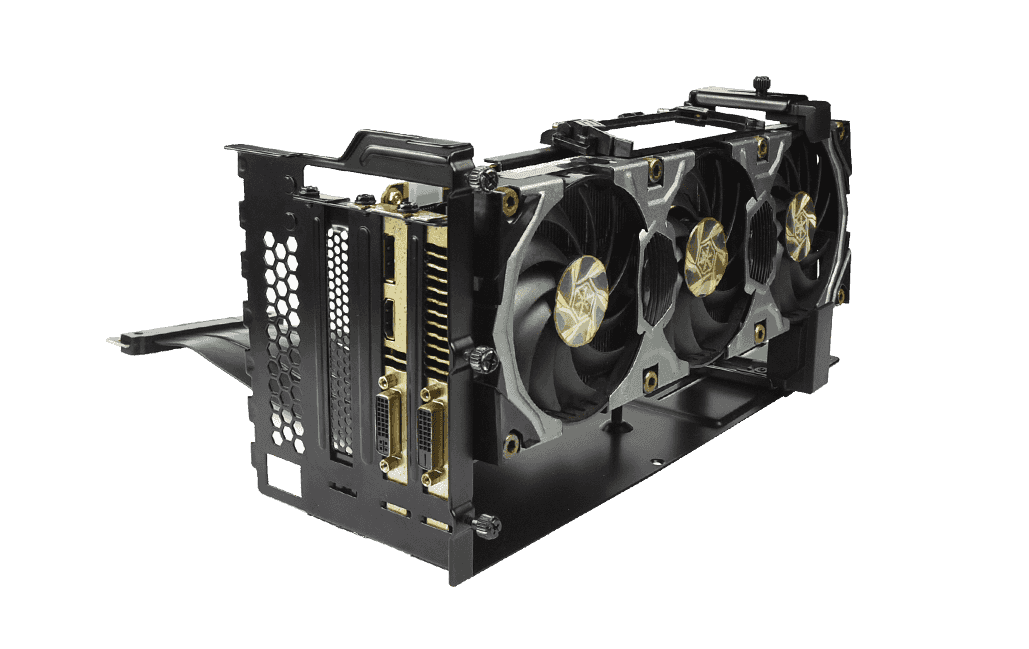

GameMax VGPUKIT, A universal vertical GPU bracket , The Kit included the Verfical GPU bracket and a 220mm flat high quality PCIe 16x Riser cable, and addtional 2x Up/Down adjustable holder for make GPU card is stafy during transportation
•
Compatiable with chassis by "OPEN" PCI slot design, Modding might be required.
