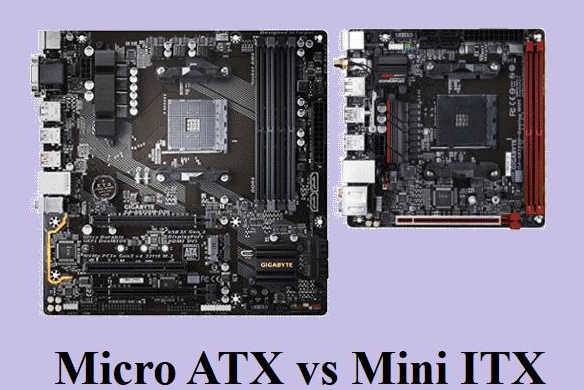

In the wave of PC hardware miniaturization, Small Form Factor (SFF) has become the choice of more and more users. From compact desktop hosts to portable gaming cases, miniaturized motherboards have gradually broken the stereotype of "being less powerful than traditional large motherboards" with their advantages of space-saving, flexible design, and energy optimization. Among them, Micro ATX and Mini ITX, as the two most mainstream SFF motherboard specifications, have long occupied the core position in the market. What are their differences? Which one can better balance performance and size? This article will conduct an in-depth analysis from the dimensions of specifications, expandability, compatibility, and applicable scenarios to help you clarify the essence of this "small-size battle".
To understand the core differences between the two, we first need to return to the most basic physical specifications. Micro ATX (abbreviated as mATX) was born in 1997. It is a derivative specification launched by Intel to balance the expandability of ATX large motherboards and the demand for miniaturization. The standard size is 244×244mm (some manufacturers will make slight adjustments, but the error does not exceed 5%). Its board design retains the core architecture of ATX and only reduces the area by shrinking the edge area, so it can be compatible with most ATX cases.
Mini ITX (abbreviated as ITX) is an ultra-small specification led by VIA in 1999, with a standard size of 170×170mm, and its area is only 49% of that of Micro ATX. Its design logic is completely different from that of Micro ATX - it is not a "reduced version of ATX", but optimizes the layout from the source and reduces the need for external interfaces by integrating more functions (such as integrated graphics cards and sound cards) to achieve extreme compactness.
The size difference directly determines the layout ideas of the two: Micro ATX focuses more on "retaining expandability under limited compromises", while Mini ITX pursues "functional integration under extreme compression". This difference in design genes also paves the way for subsequent performance and applicable scenarios.
PCIe slots are the core indicator of expandability. Micro ATX is usually equipped with 2-4 PCIe slots (the mainstream model has 2 slots), one of which is a full-speed PCIe 4.0/5.0 x16 (for graphics cards), and the rest are x1 or x4 slots (which can expand sound cards, network cards, capture cards, etc.). This means that it can meet the expansion needs of most players, even the combination of independent graphics cards and NVMe expansion cards.
Mini ITX is almost uniformly equipped with 1 PCIe x16 slot, and due to size constraints, some models will design the slot position closer to the edge, which may conflict with the cooling module of large graphics cards. For users who need multiple expansion cards (such as live broadcast requiring capture cards + independent graphics cards), Mini ITX has almost no redundant space and must rely on external docks, which weakens the practicality to a certain extent.
The difference in memory and storage interfaces is also obvious. Micro ATX mainly supports 4 memory slots (the maximum capacity can reach 128GB-256GB), which is suitable for the multi-tasking needs of content creators; the storage interface usually includes 4-6 SATA interfaces + 2-3 M.2 slots, taking into account traditional mechanical hard drives and high-speed solid-state drives.
Mini ITX mostly has 2 memory slots (the maximum capacity is 64GB-128GB), and the storage interface is reduced to 2-4 SATA + 1-2 M.2. This design is sufficient for daily use, but it will be insufficient for NAS construction or video workstations that require multi-disk storage.
Micro ATX has significant compatibility advantages: it can not only be installed in standard ATX cases, but also be compatible with most "Micro ATX cases" (such cases are usually compatible with Micro ATX and Mini ITX). In terms of cooling, the reserved space around it allows the installation of higher-spec CPU coolers (such as tower coolers with a height of more than 160mm), and the air duct design in the case is more flexible, with fewer restrictions on the size of cooling fans.
The compatibility of Mini ITX faces multiple constraints: it must be matched with a "Mini ITX dedicated case" (some compact Micro ATX cases also support it, but the selection range is narrow), and such cases often limit the height of the CPU cooler (usually ≤150mm) and the length of the graphics card (≤320mm). For users pursuing extreme performance (such as matching i9-13900K or AMD Ryzen 9 7950X), the limitation of cooler size may lead to a decrease in cooling efficiency, thereby affecting overclocking potential.
In terms of power supply compatibility, Micro ATX can be adapted to various power supplies such as ATX, SFX, and SFX-L, while Mini ITX cases mostly require SFX/SFX-L power supplies (some ITX cases supporting ATX power supplies are close to the size of Micro ATX cases, losing the significance of miniaturization). SFX power supplies have higher power density, but their prices are 20%-30% higher than ATX power supplies of the same power, which will indirectly push up the cost of the entire machine.
The motherboard itself does not directly participate in performance operations, but its layout will affect the cooling efficiency of the hardware, thereby indirectly limiting performance release. Under the same configuration (CPU, graphics card, cooler), the Micro ATX motherboard has more abundant surrounding space, and the air circulation in the case is smoother. The full-load temperature of the CPU and graphics card is usually 3-5°C lower than that of Mini ITX.
This difference is particularly obvious in long-term high-load scenarios (such as 3A games and video rendering). For example, a Mini ITX host equipped with RTX 4090 may trigger downclocking due to excessive memory temperature if the case air duct design is poor during 4K games; while a Micro ATX host can maintain stable performance through a more reasonable air duct layout.
The power supply module of high-end motherboards is the key to overclocking. Due to its larger area, Micro ATX can accommodate more power supply phases (mainstream models have 8-12 phases) and heat sinks, which can more stably suppress the temperature of the power supply module during overclocking. For example, a 12-phase power supply design of a brand's Micro ATX motherboard can support i9-13900K to stably overclock to 5.8GHz; while the same brand's Mini ITX model, although using the same chipset, is limited by space, the number of power supply phases is reduced to 6, and power supply overheating occurs when overclocking to 5.5GHz.
The overclocking advantage of Mini ITX is only reflected in the "low-power platform" (such as Intel i5-13400 or AMD Ryzen 5 7600). Such CPUs have low power consumption, and even a small number of power supply phases can achieve a small overclock; but for flagship CPUs, the power supply redundancy of Micro ATX is obviously more reliable.
Mid-range game players: Need independent graphics cards + occasional expansion (such as adding network cards to improve network speed), but have a limited budget and are unwilling to pay for the premium of Mini ITX.
Content creators: Need 128GB memory (supported by multiple slots) + dual M.2 solid-state drives (system disk + material disk), while taking into account certain cooling needs.
Home all-round machines: Need to connect multiple devices such as printers, external hard drives, and TVs, and may upgrade graphics cards in the future. The expandability of Micro ATX leaves enough room.
Desktop aesthetics pursuers: Pursue the "small and beautiful" host form (such as placing it on the desktop as a decoration) and are willing to sacrifice part of the expandability for a compact design.
HTPC (Home Theater PC): Need to be stuffed into the gap of the TV cabinet, are sensitive to size, and only need light video playback (no strong expansion required).
Portable gaming players: Such as ITX backpack hosts, used for LAN parties or mobile office, must achieve an extreme balance between size and performance.
"Do you need to upgrade hardware in the next 3 years?"
If you plan to upgrade the graphics card and add expansion cards, choose Micro ATX; if you are sure to "use it until it is eliminated after one installation", Mini ITX is sufficient.
"Does the case budget include cooling optimization?"
The cooling 短板 of Mini ITX needs to be compensated by high-end cases (such as custom water cooling and optimized air ducts). The price of such cases is often more than 50% higher than that of Micro ATX cases of the same level. If the budget is limited, Micro ATX is more "worry-free".
"Do you care about 'cost performance'?"
The price of Micro ATX motherboards with the same chipset is usually 10%-30% lower than that of Mini ITX (for example, the B760 chipset, Micro ATX is about 800 yuan, and Mini ITX is about 1000 yuan), and it is compatible with cheaper ATX power supplies and cases, with obvious advantages in the overall machine cost.
The competition between Micro ATX and Mini ITX is essentially a choice between "balance" and "extremeness". The former gains more flexible expandability and compatibility with a small increase in size, which is suitable for most users pursuing pragmatism; the latter defines the boundary of miniaturization with extreme compression and becomes the "belief choice" of niche players.
In today's increasingly segmented SFF market, the two are no longer rivals that are mutually exclusive, but complementary products covering different demand scenarios. The core of the choice is never "which is better", but "which is more suitable for your usage scenario" - after all, the hardware that can accurately match the demand is the real "optimal solution".
