When you are building a high-end gaming workstation or a dedicated content creation machine, air cooling simply does not cut it anymore. Modern processors like the AMD Ryzen 9 9950X and Intel Core i9-14900K routinely push thermal envelopes that demand liquid cooling solutions — and not just any liquid cooling. A 360mm radiator represents the gold standard in consumer-grade CPU cooling, offering the surface area and airflow needed to dissipate 300W or more of heat output while maintaining whisper-quiet fan speeds. The challenge is finding a full tower case that not only fits a 360mm radiator but positions it optimally for both thermal performance and ease of installation.
Not all 360mm radiator support is created equal. Some cases claim 360mm support but leave only millimeters of clearance, making installation a frustrating battle with thumbscrews and cable routing. Others mount the radiator in positions that obstruct RAM slots, VRM heatsinks, or PCIe slots — turning what should be a straightforward upgrade into a compatibility nightmare. The best full tower cases for 360mm radiators treat the cooling system as a first-class design citizen, not an afterthought.
The physics of heat dissipation are straightforward: more surface area means more efficient heat transfer. A 360mm radiator has approximately 40% more cooling surface than a 280mm radiator and nearly three times the surface area of a 120mm radiator. This translates directly into lower CPU temperatures at any given fan speed — or, equivalently, the ability to run your fans at lower RPMs while maintaining the same cooling performance. For builders in smaller spaces or those who prioritize acoustic performance, a well-configured 360mm AIO at 800 RPM can cool a 250W CPU while producing less noise than a 120mm tower cooler at full blast.
Beyond raw thermal capacity, 360mm radiators offer superior heat dissipation across the entire radiator surface. This means no hot spots — the uneven cooling that plagues smaller radiators when some fins are fully engaged while others sit idle. In a 360mm radiator, the thermal load is distributed across three 120mm fan positions, each pulling air through a portion of the fins. This even distribution means more consistent cooling and longer component lifespan for your CPU.
The placement of a 360mm radiator within a case dramatically affects both thermal performance and system accessibility. Front-mounted 360mm radiators draw air from inside the case, which is already warm from the GPU and other components. While this works adequately, it is thermally suboptimal — you are cooling your CPU with air that is already been heated by your graphics card. Top-mounted 360mm radiators draw fresh air from above the case and exhaust heat directly upward and out of the chassis. This is the most thermally efficient configuration, but it requires sufficient clearance above the case and can conflict with tall CPU coolers or dense RAM modules.
The GameMax MASTER 2 solves this with a top panel that supports 120mm, 240mm, 280mm, and 360mm radiators simultaneously — the top panel generous clearance ensures that even thick 360mm radiator units with fans installed do not interfere with the motherboard VRM heatsink or memory modules. The fan speed controller on the top panel allows you to fine-tune the radiator fan speed in real-time without entering BIOS, a feature that is particularly valuable during stress testing or long render sessions.
The MASTER 2 is GameMax most ambitious full tower offering, designed from the ground up for builders who demand maximum cooling capacity without compromise. The chassis supports E-ATX (280x305mm), ATX, M-ATX, and ITX motherboards, with GPU clearance up to 420mm — enough for any consumer graphics card available today. The top panel 360mm radiator support is complemented by an included 9905 HUB ARGB controller that can manage up to 8 fans simultaneously, ensuring that your entire cooling ecosystem works in concert rather than as independent components.
What truly sets the MASTER 2 apart is its pre-installed 3x120mm FN-12Rainbow-C9 fans at the front panel, providing strong intake airflow from day one. Combined with dust filters on the bottom, top, and front panels, the MASTER 2 maintains clean airflow even in environments where dust is a constant concern. The 8 internal 3.5 inch HDD bays and 2x 2.5 inch SSD mounts ensure that storage-intensive workloads — video editing, 3D rendering, server applications — can be accommodated without sacrificing cooling real estate. The side panel is tempered glass, allowing you to showcase your RGB fan ecosystem and the massive 360mm radiator at the top of the case.
The AUTOBOT occupies a unique niche in the GameMax lineup: it is a full tower chassis built with an aluminum body processed by CNC machine tools — a level of manufacturing precision rarely seen at its price point. The aluminum construction reduces the chassis weight significantly compared to steel equivalents while maintaining structural rigidity, making the AUTOBOT easier to transport to LAN parties or e-sports events. The body measures (L)454x(W)216x(H)550mm, making it one of the tallest full tower cases in the lineup — and that height translates directly into vertical cooling capacity.
The AUTOBOT features dual tempered glass side panels — one on each side — allowing a 360-degree view of your internal components. This is particularly striking in competitive gaming setups where the system is the centerpiece of the room. The chassis supports E-ATX, ATX, Micro-ATX, and Mini-ITX motherboards, with GPU clearance up to 400mm and CPU cooler height up to 170mm. The top panel supports a 240mm radiator, while the rear supports a 120mm position. For builders who prefer air cooling but want the option for future liquid cooling upgrades, the AUTOBOT provides excellent headroom. The front panel is aluminum — a solid surface that prioritizes aesthetics over raw airflow, but the dual tempered glass side panels and aluminum construction create a premium visual presence that complements any gaming setup.

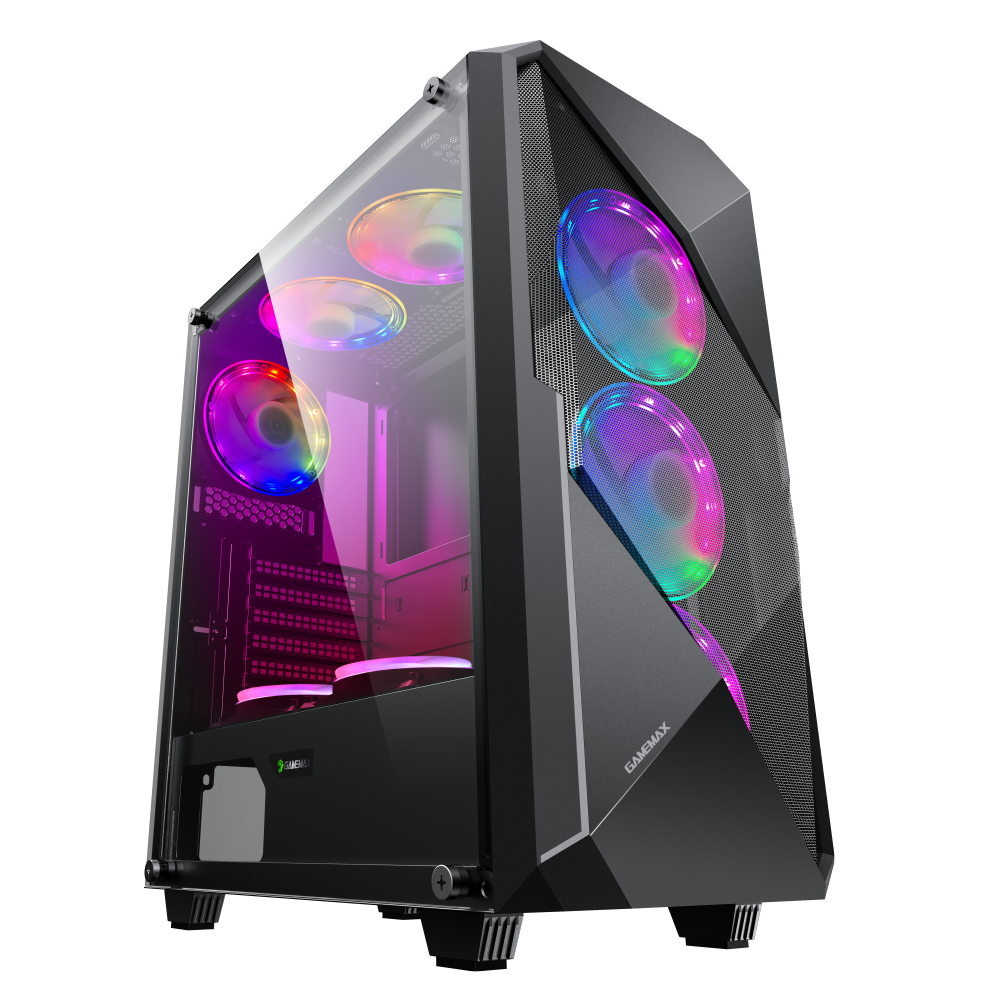

The Revolt takes an aggressive approach to cooling with its full mesh front fascia and side vents running down both sides of the chassis. This design maximizes air intake from the front while allowing air to escape through side vents, creating a multi-directional exhaust path that prevents heat from pooling inside the case. The included 3x120mm ARGB FN-12N-Rainbow-T fans provide both powerful intake and stunning visual effects through the tempered glass side panel.
For water cooling enthusiasts, the Revolt supports radiators up to 360mm at the front position — the largest size available for consumer AIO coolers. This means you can install a 360mm AIO at the front with the radiator fins oriented to draw cool air from outside the case, while the 3x120mm ARGB fans mounted behind the radiator push air through the fins and into the case. This front-to-back airflow path is ideal for gaming workloads where the GPU generates the majority of heat — the CPU cooler at the front exhausts warm air directly out the back of the case rather than cycling it through the chassis. The Revolt supports ATX, M-ATX, E-ATX (without front fan), and ITX motherboards, and accommodates GPUs up to 340mm and CPU coolers up to 170mm.
Installing a 360mm all-in-one liquid cooler in a full tower case requires planning that differs from a standard air cooler installation. Start by planning your cable routing before installing the motherboard — route the pump header cable, fan cables, and ARGB cables through the motherboard tray cutouts so they are ready to connect when you mount the radiator. Many builders make the mistake of installing the motherboard first and then discovering that cables are trapped behind the radiator mount.
For the MASTER 2, the top-mounted 360mm radiator installation is straightforward: remove the top panel thumbscrews, lift off the metal cover, and you will find pre-drilled mounting holes compatible with all standard 360mm AIO mounting kits. The included ARGB hub simplifies the fan wiring — connect all three radiator fans to the hub, connect the hub to the motherboard CPU fan header, and configure your fan curve in BIOS. The Revolt front-mounted 360mm setup requires removing the front mesh panel first, then installing the radiator bracket before sliding the radiator into position.
While all-in-one coolers come pre-filled with coolant, understanding what you are working with helps in long-term maintenance planning. Most AIO coolers use a closed loop of distilled water with anti-corrosion additives and biocide to prevent biological growth inside the loop. These coolers typically last 3-5 years before the coolant needs replacement, and the pump has a mean time between failures (MTBF) of 50,000+ hours under normal operating conditions. If you are building a system that will run 24/7 — a render node, a file server, or a game server — consider choosing a case with easy radiator access for future maintenance.
The MASTER 2 top-mounted radiator position makes maintenance straightforward: the radiator is accessible from above without removing the motherboard, and the tempered glass side panel provides visibility into the loop without disassembling anything. For the Revolt, the front-mounted position is equally accessible by removing the front mesh panel.
360mm radiators come in various thicknesses, typically ranging from 25mm (thin) to 60mm (thick). Thinner radiators (25-30mm) require less clearance and fit more easily in tight spaces, but they require higher fan speeds to achieve the same cooling as a thicker radiator. Thicker radiators (45-60mm) offer superior cooling at lower fan speeds, but they require more vertical clearance in the case and can conflict with tall memory modules or VRM heatsinks. The MASTER 2 top panel provides generous clearance that accommodates even thick 60mm radiators with fans installed.
For fan configuration on a 360mm radiator, push-pull configurations — where fans are mounted on both the intake and exhaust sides of the radiator fins — can improve cooling performance by 5-15% over a single-sided setup. However, push-pull configurations double the fan count and can create cable management challenges. For most users, a high-quality single-sided configuration with three 120mm fans running at 1000-1200 RPM provides an excellent balance of cooling and noise.
Building a full tower PC with 360mm radiator support is an investment in future-proofing. Today high-end CPUs may draw 250W, but next-generation processors are likely to push well beyond that. A case that supports 360mm radiators today will remain relevant for the CPU cooling challenges of tomorrow hardware. The MASTER 2, AUTOBOT, and Revolt each offer this future-proofing in different packages — the MASTER 2 for maximum fan ecosystem control, the AUTOBOT for premium aesthetics and aluminum construction, and the Revolt for aggressive airflow and front-mounted 360mm installation.
A full tower case with 360mm radiator support is the foundation of a truly high-performance PC build. The thermal headroom it provides means your CPU can maintain its boost clocks longer under load, your system runs quieter at equivalent temperatures, and your components last longer thanks to reduced thermal stress. The GameMax MASTER 2 leads with its 12 pre-installed fans and top-mounted 360mm support, the AUTOBOT brings premium aluminum construction and dual glass panels for builders who prioritize aesthetics, and the Revolt delivers aggressive front-to-back airflow with front-mounted 360mm installation. Whatever your priority — thermal performance, visual impact, or acoustic refinement — these three full tower cases provide the foundation for a PC that stays cool under pressure.
